Electrical Connection

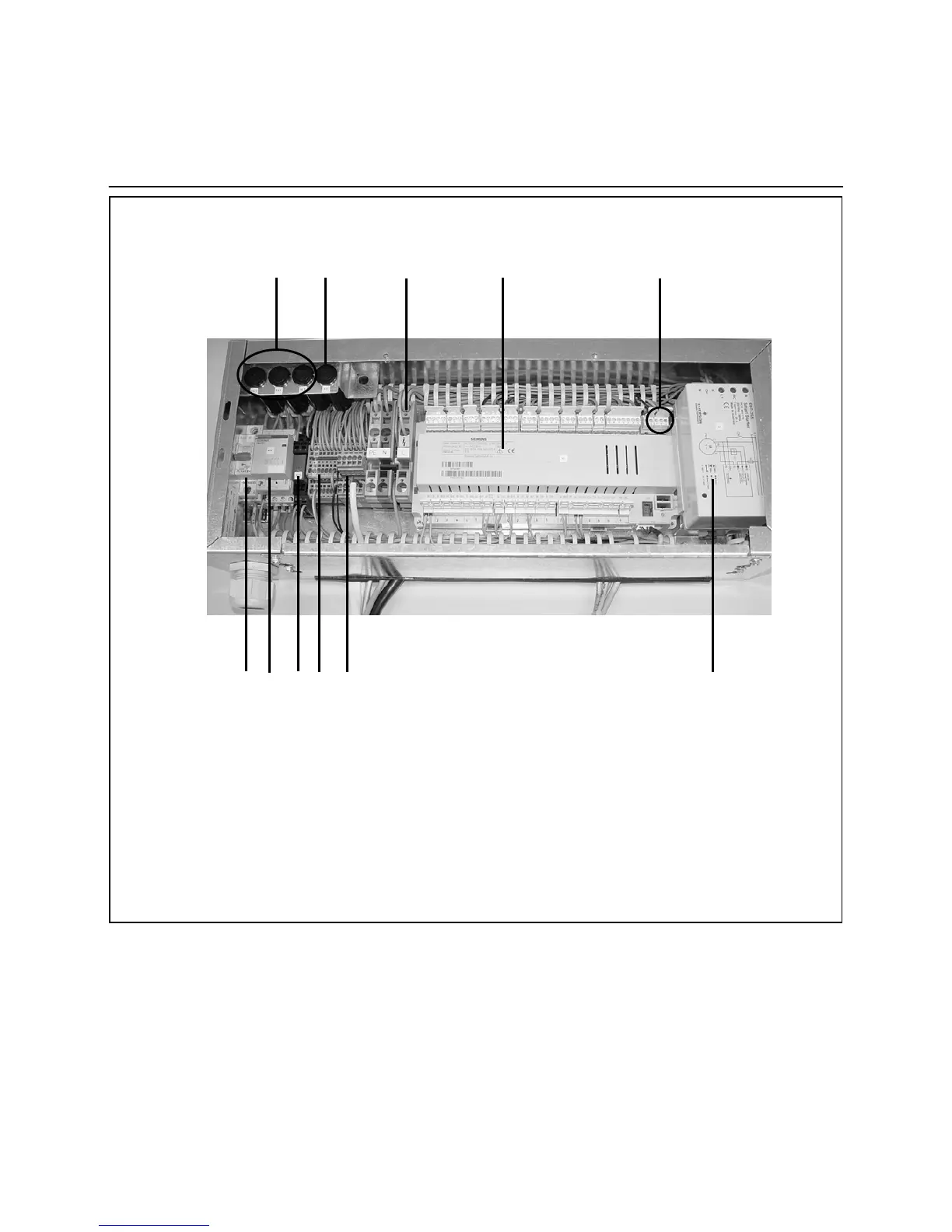

Switch box
10 7 6 3 4
11 5 9 1 2 8
AEROTOP T..CX
5 Contactor electric heating element
6 Main incoming supply 3*400V
7 Fan fuse / control fuse (F3)
8 Soft-starter and rotary current relay
9 Fan Contactor
10 Electr. heater element fuse
F6.1/F6.2/F6.3
11 Compressor fuse
Legenda:
1 Terminal strip consumer, power
station blockage
2 Terminal strip Fan Contactor / oil
sump heater
3 Heat pump controller
LOGON B WP61
4 Mains supply plug:
Mains connector phase AC 230 V
Main connector neutral connector
14
