elco AEROTOP T User Manual

15
Electrical Connection

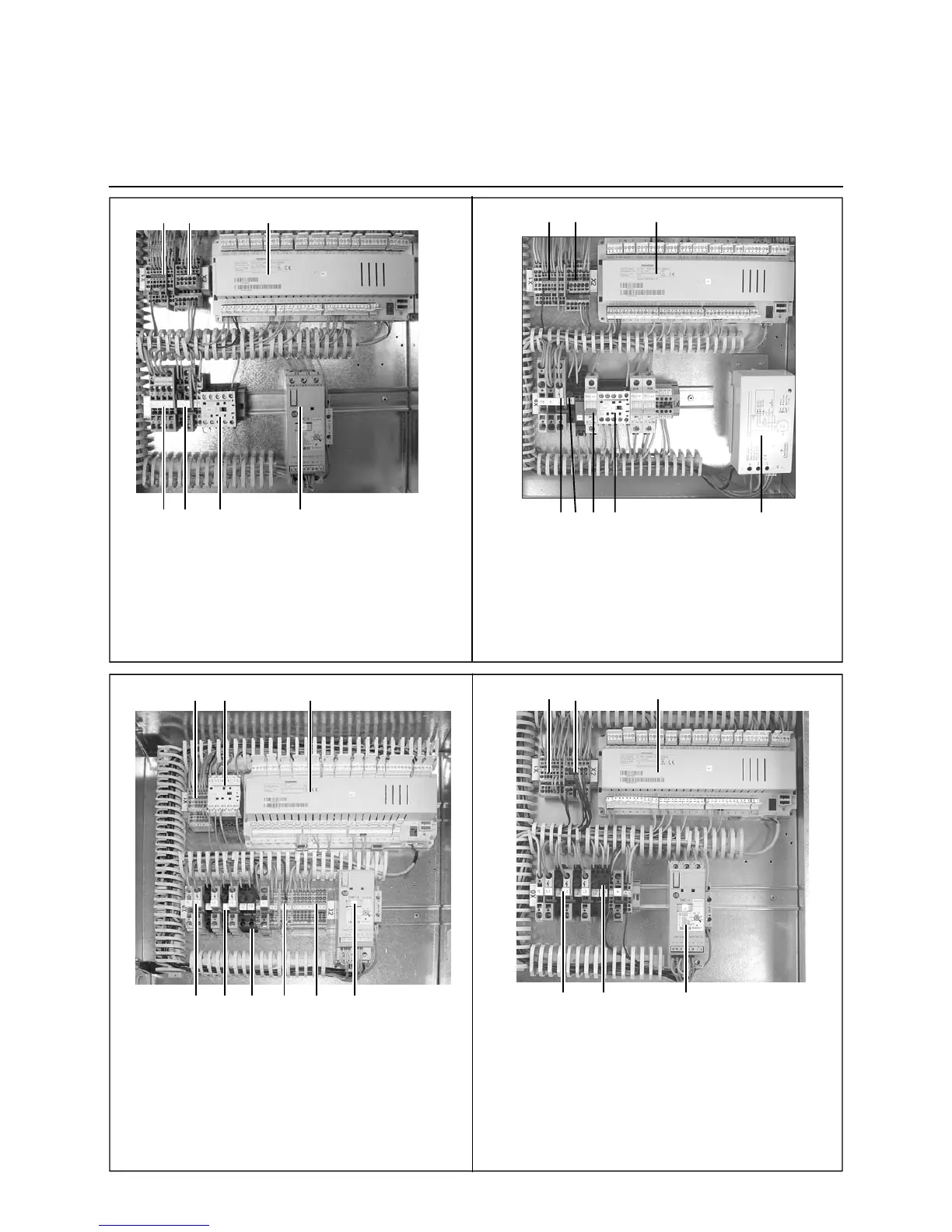

Switch box
Electrical Box AEROTOP T20-T35 with LOGON B WP61
1 Terminal block consumer (EC block / source flow monitor)
2 Terminal block foil sump heater
3 Terminal block Fan contactor
4 Heat pump controller RVS61
5 Main incoming supply 3*400V (L1, L2, L3)
6 Fan fuse (F19-1-2-3)
7 Control fuse (F3)
8 Soft-starter and rotary current relay
9 Fan contactor K19
Electrical Box AEROTOP T07-T16 with LOGON B WP61
1 Terminal block consumer (EC block / source flow
monitor)
2 Terminal block fuse fan / oil sump heater
3
Heat pump controller RVS61
4 Main incoming supply 3*400V
5 Fan fuse / control fuse
6 Soft-starter and rotary current relay
7 Contactor electric heating element
1 9 4
5 6 7 2 3 8
Electrical Box AEROTOP T20R-T35R with LOGON B WP61
1 Terminal block consumer (EC block / source flow
monitor)
2 Terminal block fuse fan / oil sump heater
3
Heat pump controller RVS61
4 Main incoming supply 3*400V
5 Fan fuse / control fuse
6 Soft-starter and rotary current relay
Electrical Box AEROTOP TX e TRX with LOGON B WP61
1 Terminal block consumer (EC block / source flow
monitor)
2 Terminal block fuse fan / oil sump heater
3 Heat pump controller RVS61
4 Main incoming supply 3*400V
5 Fan fuse / control fuse
6 Soft-starter and rotary current relay
7 Contactor electric heating element
8 Compressor Fuse
1 2 3
4 5 8 7 6
1 2 3
4 5 7 6
1 2 3
4 5 6
