Indoor Installation
Cutout Insulation Installation
22
Cutout Insulation

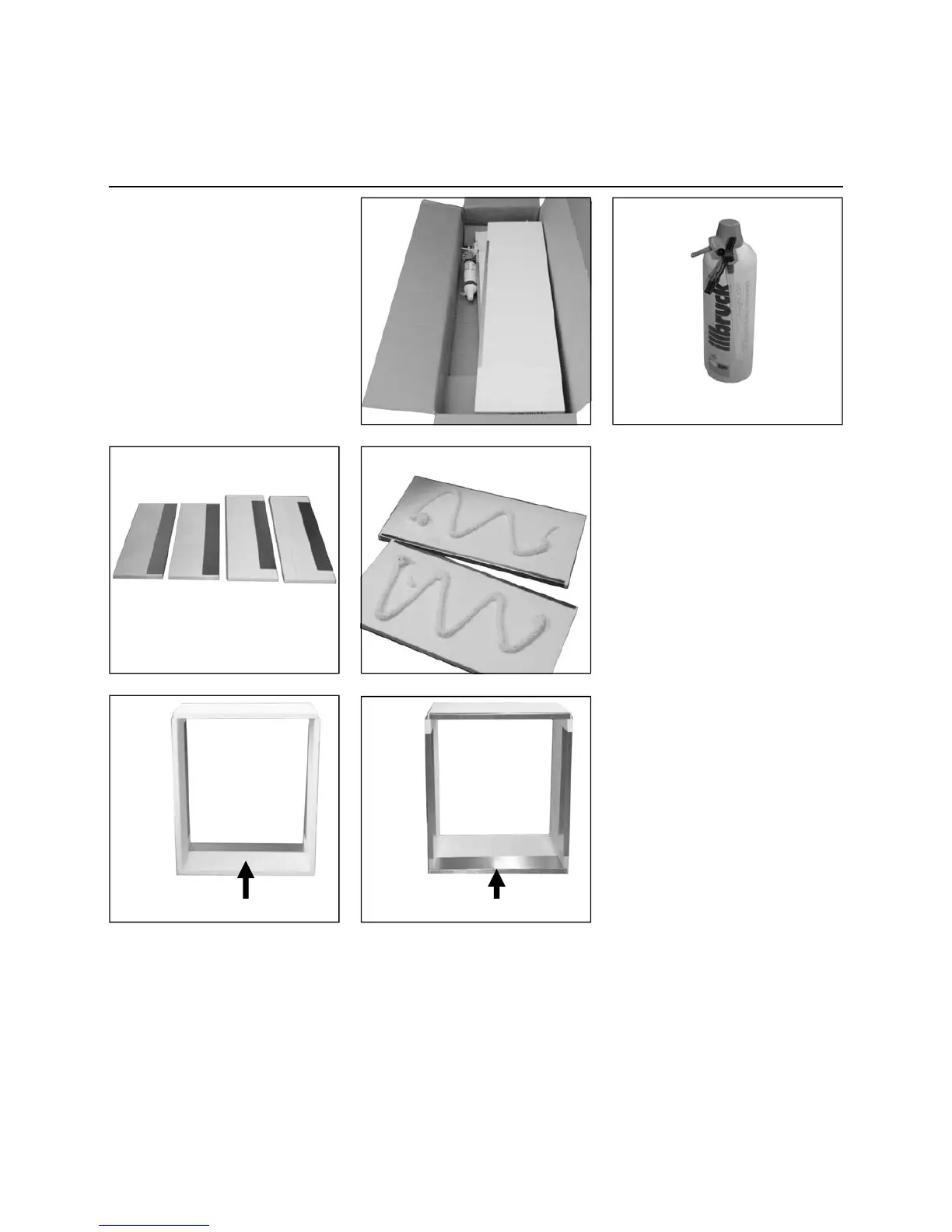

The cutout insulation kit is needed to
insulate the air intake and output
cutouts. The kit includes the following:
• 4 star screws
• 4 insulating boards: Length and
width dependent on heat pump
size
• 1 bottle of assembly foam adhesive
to attach insulating boards (only
included in air intake kit)
How to Install the Cutout Insulation
• Prepare insulating board
• Apply adhesive foam onto outside
(wall side) of insulating board.
The wall side is the side where the
leg of the metal section is shorter.
Installation in the Cutout
Take note of the correct placement
of the cutout parts!
Press insulating boards against cutout
walls as indicated in illustration.
Fig. (A): The front side remains free,
i.e. no sheet metal in this side.
Fig. (B): Setup insulating boards.
The sheet metal is attached to the
rear side.
Fig. A
Fig. B
Protective grating Heat pump
