19
Indoor Installation

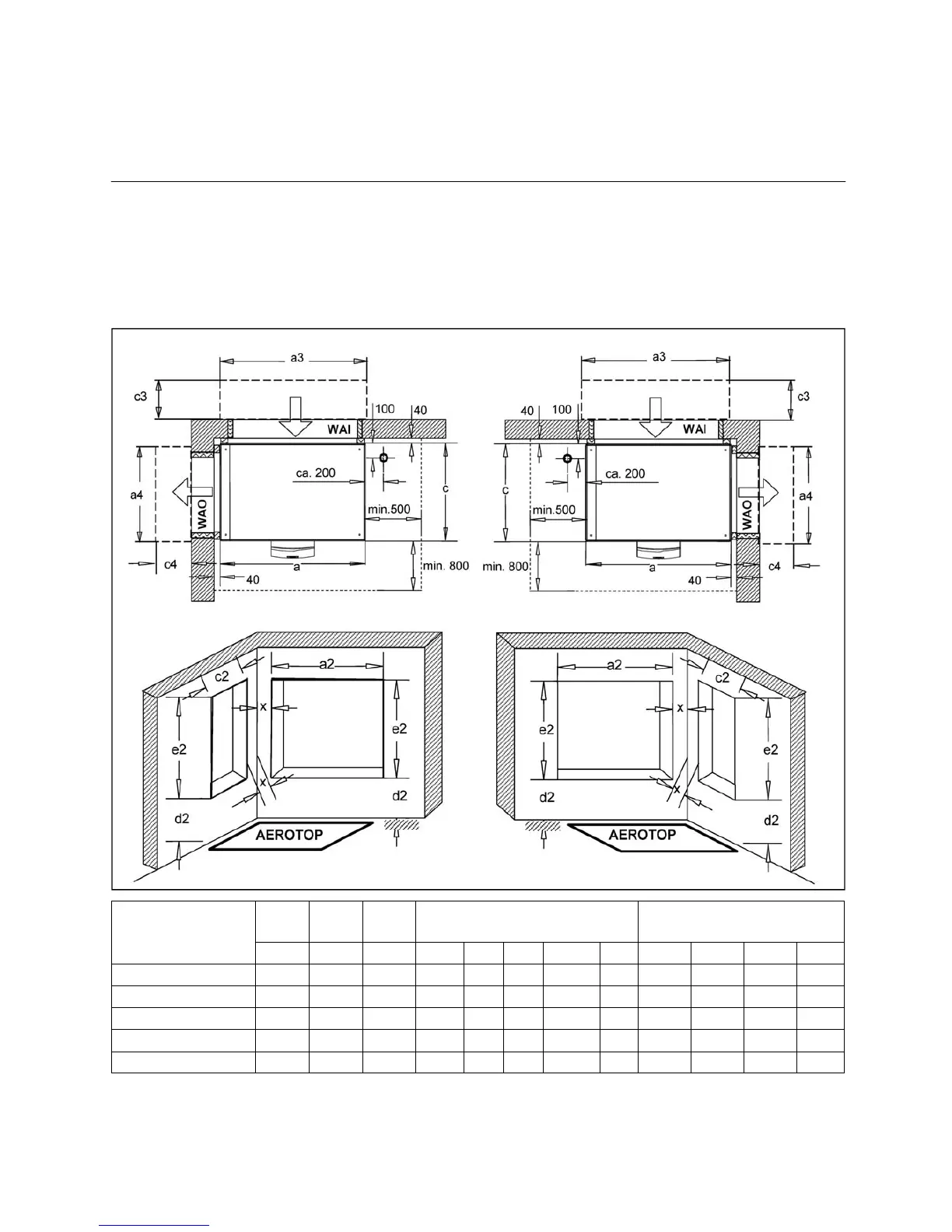

Corner Setup
AEROTOP T07...35 Corner Setup
If the heating or utility room has two
exterior walls, a space-saving corner
installation is ideal with the heat pump
being placed into the left or right corner.
Air ducts are not needed.
Required Accessories:
- WAI wall setup, suction side
- WAO wall setup, output side
Left corner setup
Right corner setup
1) The compliance with acoustic limit
values must be clarified by
customer.
2) Necessary outside insulation by
customer, minimal clearance of
light well must not be gone below.
3) Possible air short-circuit to be
prevented by customer.
4) Statistics to be checked by
Customer
5) Distance from wall: min 20 mm,
max 40 mm
finished floors.
• Statistics to be checked by
customer If necessary wall must be
reinforced with PUR- insulation
elements. This must be considered
for the cutouts
The indicated cutouts apply only to the
accessories AIR IN and OUTLET wall
setup. The dimensions apply after all
tasks have been completed and refer to
AEROTOP T
Width
Widt
h
Heigh
Dimensions Of Both Cutouts,
Without Insulation
Recommended Dimensions,
Light Well
a b c a2 c2 d2 e2 x a3 c3 a4 c4
T07C, T07 995 1525 650 950 600 640 860 60 1200 600 800 600
T10C, T10 1095 1575 750 1050 700 640 910 60 1200 600 1000 600
T12C, T12, T14, T16 1195 1675 750 1150 700 640 1010 60 1200 600 1000 600
T20, T26 1195 1695 880 1150 830 740 930 60 1400 800 1200 800
T32, T35 1295 1905 1000 1250 950 740 1140 60 1400 800 1200 800
• Possible air short-circuit to be
prevented by customer
• Necessary outside insulation to be
installed by customer
