User GuideRG-1000e Remote Gateway
The total network bandwidth that is required for establishing the communication channel is calculated as follows:
The required network bandwidth = (number of IP channels * 128 kbit/s) + 15 kbit/s
If the control station is used for data exchange only with the radios (GPS and text messages), the required
bandwidth is 11 kbit/s per one channel. In this case, the total network bandwidth is calculated as follows: The
required network bandwidth = (number of IP channels * 16 kbit/s) + 15 kbit/s

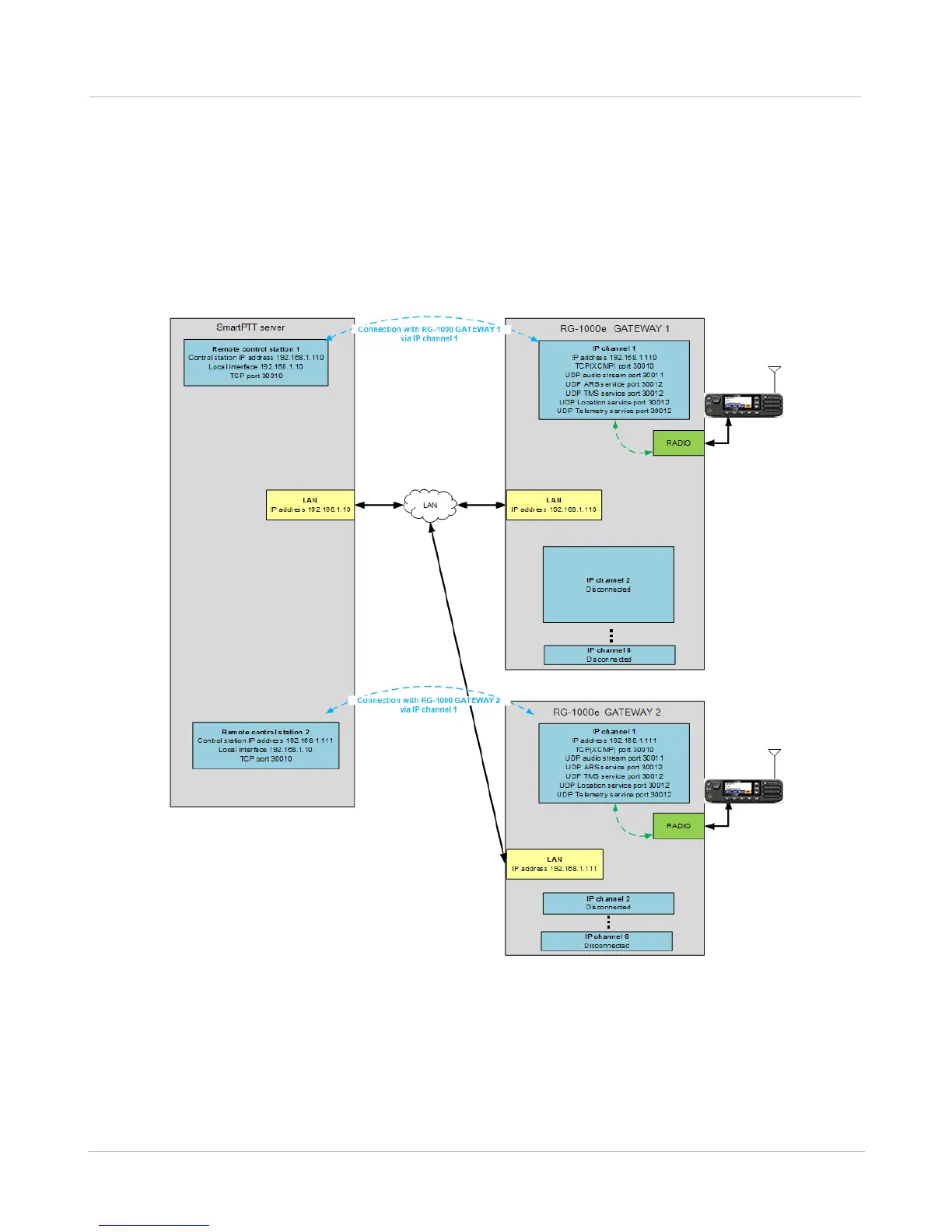

The example of configuring the radioserver for its connection to two RG-1000e GATEWAYs, is shown in the figure
below. In this example, RG-1000e GATEWAY 2 manages one radio via IP channel 1.
Fig. 4 Connection of the radioserver to two RG-1000e GATEWAYs via the local data transmission
network
The Remote control station 1 settings on the radioserver are used to connect and manage the radio of RG-1000e
GATEWAY 1, the Remote control station 2 settings—to connect and manage the radio of RG-1000e GATEWAY
2.
When more RG-1000e GATEWAYs are connected to a radioserver, they are configured correspondingly.
