Elcontrol NanoVIP3 - Page 18

Man. NVIP3 – Rel 1.3 EN (UK)
- 18 -
CONNECTIONS SETUP (4.2.1)
AMPEROMETRIC
SENSORS SETUP (4.2.2)
COUNTERS SETUP (4.2.4)
LANGUAGE SE
TUP
(4.2.5)
LCD SETUP (4.2.6)

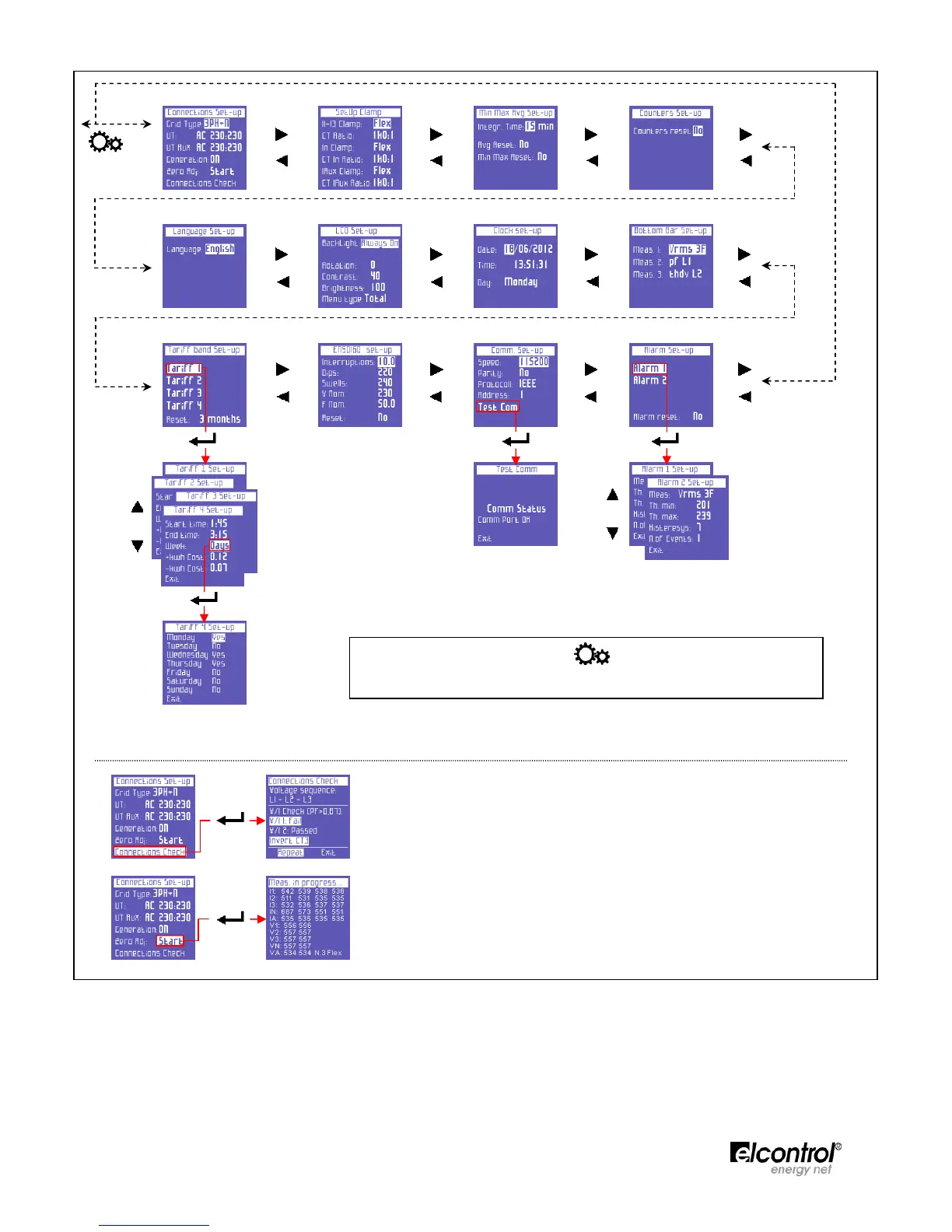

Flowchart of Setup Menu
CLOCK SETUP (4.2.7)
EN50160 SETUP (4.2.10)
BOTTOM BAR SETUP (4.2.8)
ALARMS SETUP (4.2.12)
ALARM 1 & 2 SETUP
(4.2.12.1)
MINIMUM, MAXIMUM &
AVERAGE SETUP (4.2.3)
CONNECTION CHECK (4.2.1.6)
TARIFFS SETUP (4.2.9)
COMMUNICATION SETUP (4.2.11)
(3”)
TARIFF DAYS SETUP
(4.2.9.1.1)
ZERO ADJ (4.2.1.5)
To exit the SETUP Menu, press for approx. 3 seconds on any
page.
COMMUNICATION TEST
(4.2.11.1)
TARIFF SETUP (4.2.9.1)
