Man. NVIP3 – Rel 1.3 EN (UK)
- 53 -

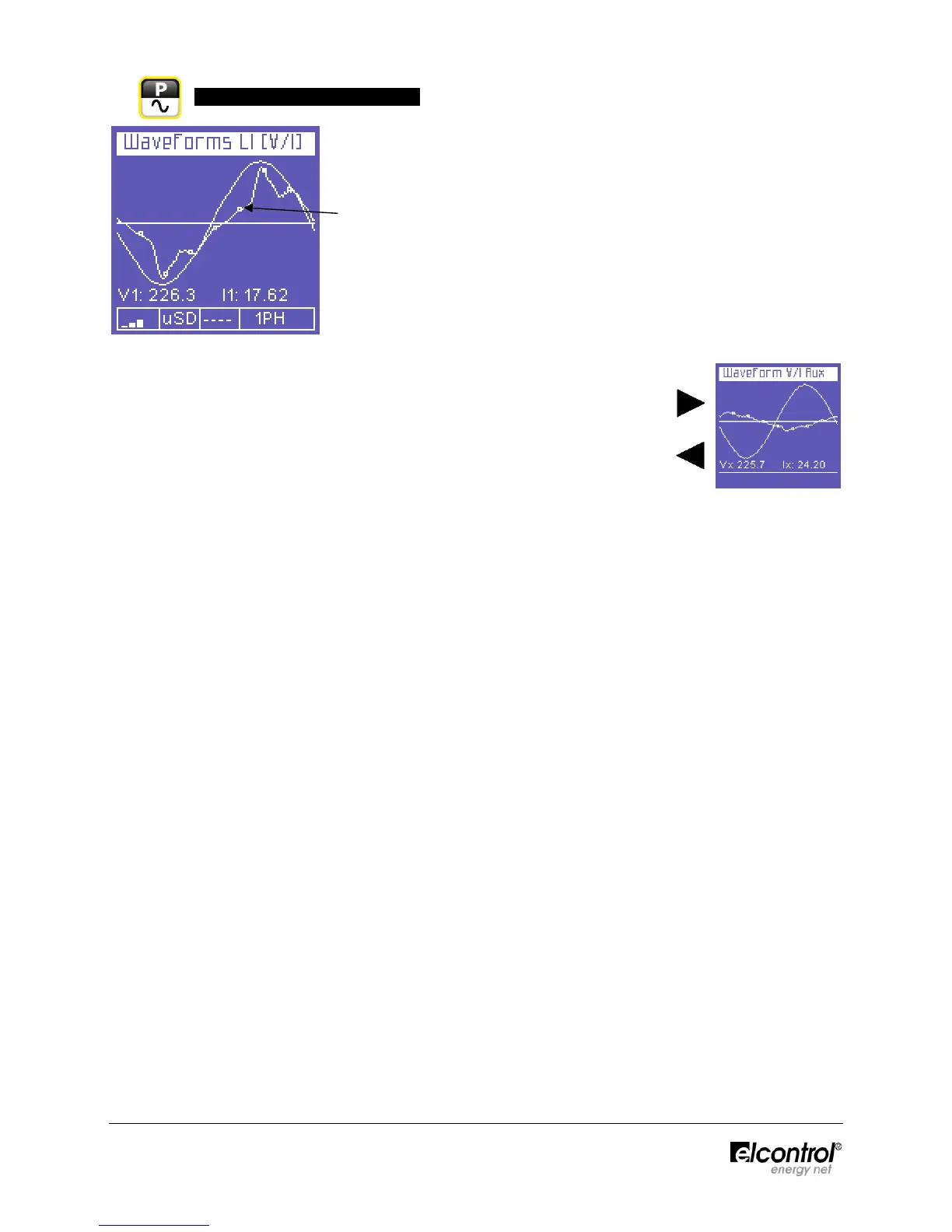

5.3.6 - Waveforms Menu (1ph)
This page displays the real-time waveforms and the relevant voltage and
current RMS values.
● NOTE: current tracing can be distinguished from voltage tracing by little
square markers. Waveform amplitude is purely indicative and is
automatically adjusted to screen size.
On the Waveforms Menu page, press to access the page of auxiliary channel
tracing. In the AUX Menu, the user can also access the other Auxiliary Channel
Menus (Voltages, Currents, Power, Counters, Harmonics) by selecting them with
the relevant function keys.
Press ⊳ to exit the Auxiliary Menu and return to the first page of the relevant
menu.
NOTE: the “EN 50160”, “Transients”, “Alarms”, and “Measurement Campaigns” Menus, as well as the
“Snapshot” function for the single phase connection, are identical to the corresponding menus of the three-
phase connection. See Sect. 5.1.7/8/9/10/11.
