Man. NVIP3 – Rel 1.3 EN (UK)
- 30 -
VOLTAGES MENU (Sect. 5.3.1).
CURRENTS MENU (Sect. 5.3.2).
POWER MENU (Sect. 5.3.3).
COUNTERS MENU (Sect. 5.3.4).
HARMONICS MENU (Sect. 5.3.5).
x3”
x3”

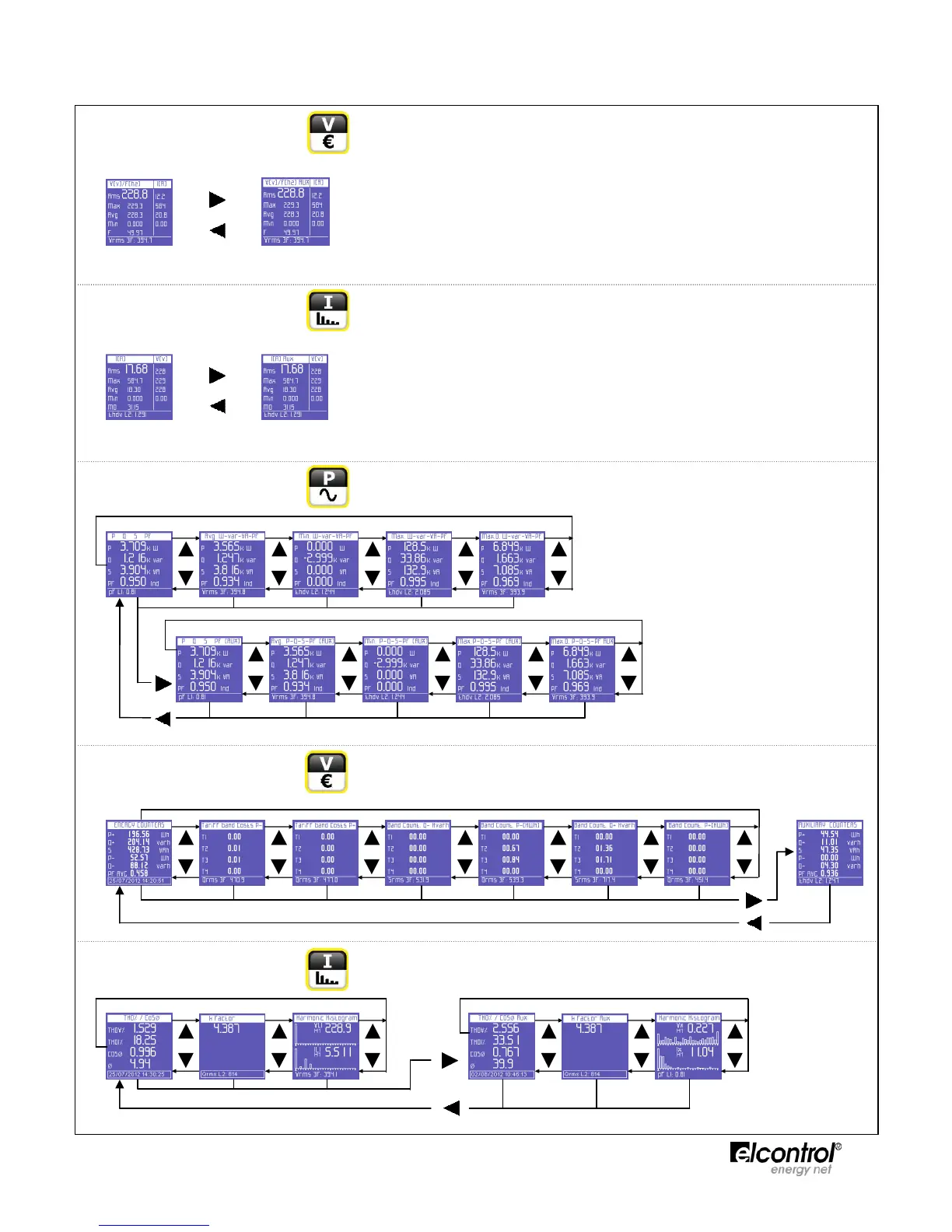

Flowchart of MEASUREMENT MENUS in SINGLE-PHASE connection.
