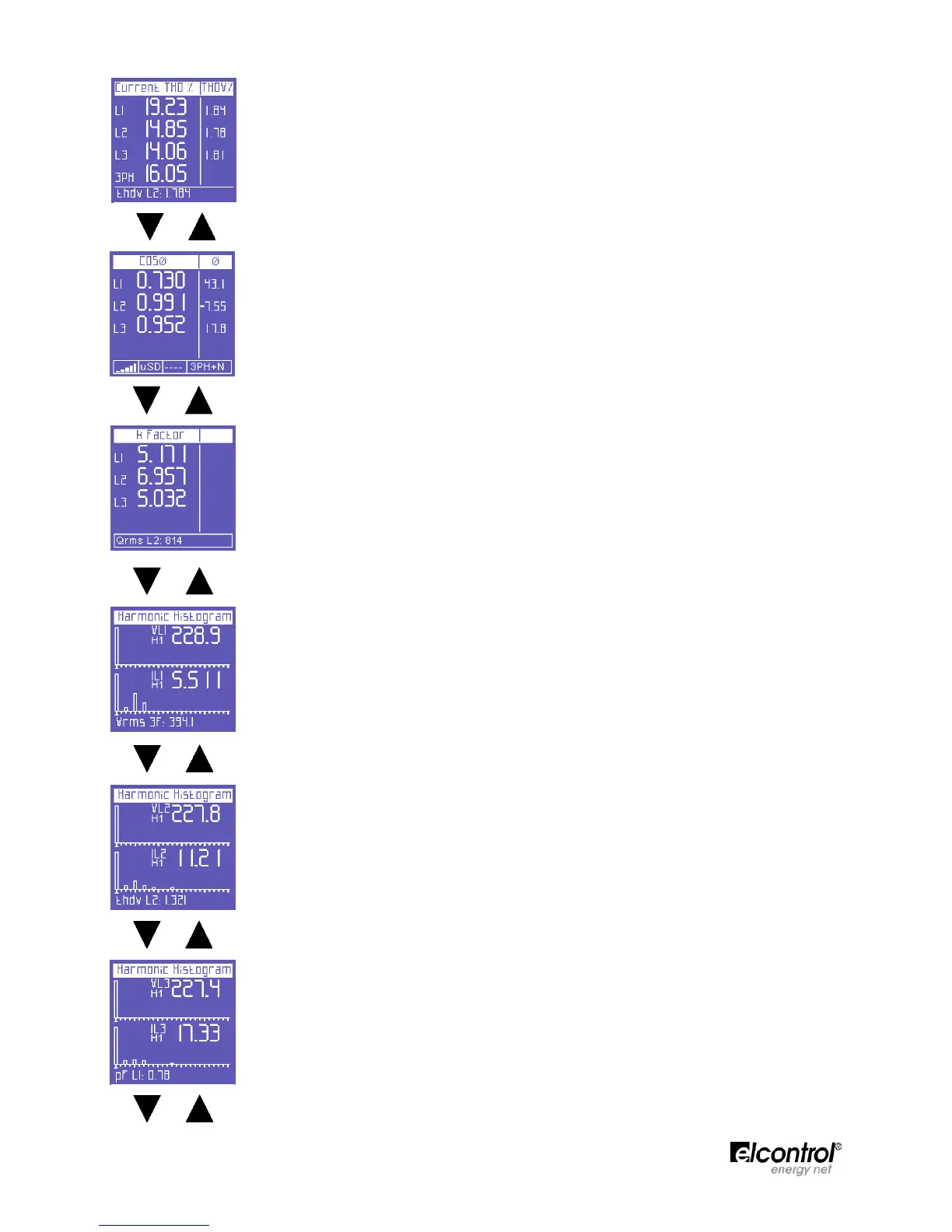

The next page displays the THD% of the current of each phase and the three-phase (or
two-phase) connection, as well as the THD% of the relevant phase voltages.
This page displays the cos
ϕ
of the 3 phases with the relevant angles expressed in degrees
(the negative sign indicates that current comes before voltage; thus, the load is capacitive)
This page display the K factors of the phases
This page displays the harmonic histogram of the voltage and current of phase L1. To
select and scroll through single harmonics, see Sect. 5.2.5.1
Harmonic histogram of the voltage and current of phase L2. To select and scroll through
single harmonics, see Sect. 5.2.5.1
Harmonic histogram of the voltage and current of phase L3. To select and scroll through
single harmonics, see Sect. 5.2.5.1
