Man. NVIP3 – Rel 1.3 EN (UK)
- 49 -

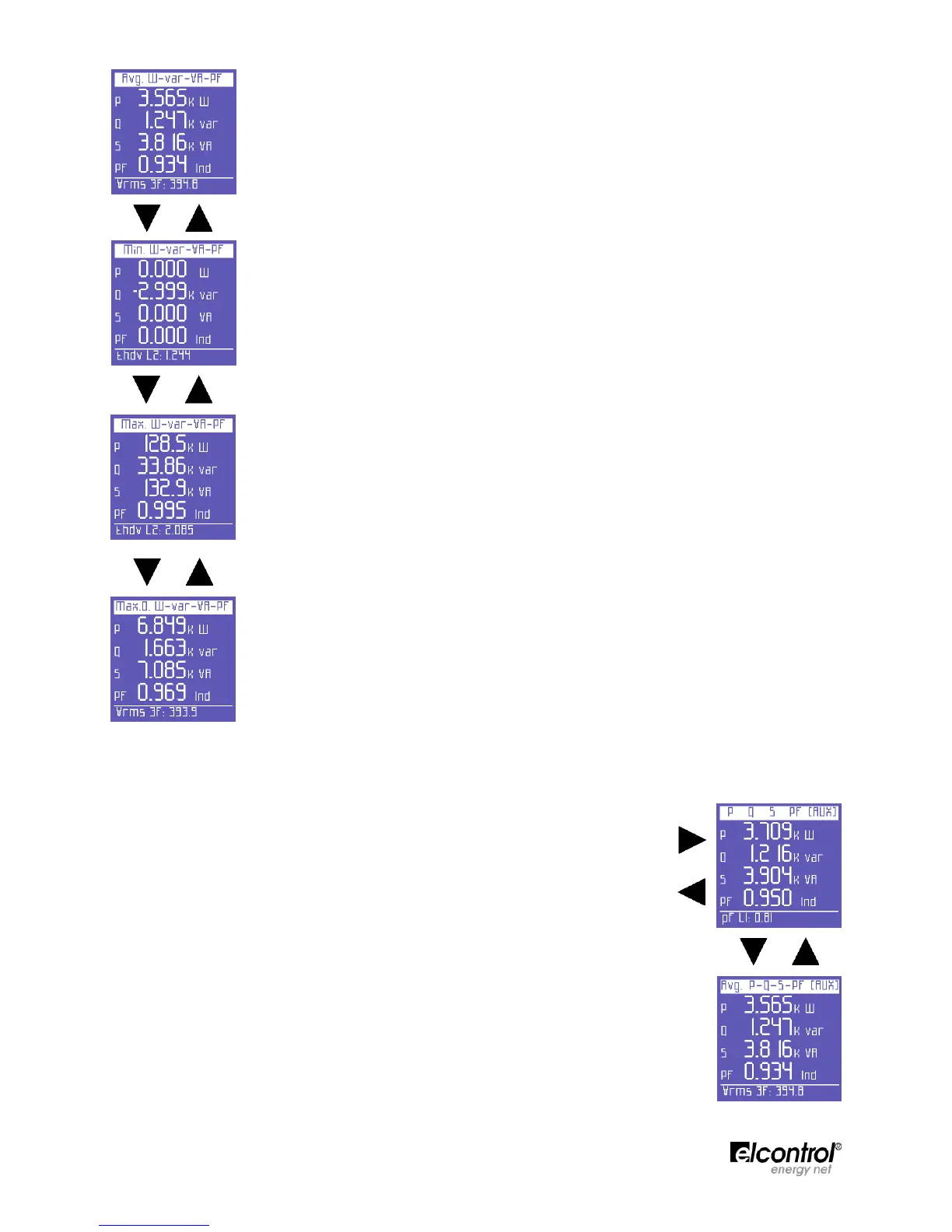

Average power and PF (calculated on the basis of the integration time set. Values can be
reset as described in Sect. 4.3.3).
Minimum instant values of power and PF (values can be reset as described in Sect.
4.2.3.3).
Maximum instant values of power and PF (values can be reset as described in Sect.
4.2.3.3).
Load peaks of power and PF, i.e. the highest average values (calculated on the basis of the
integration time set. Values can be reset as described in Sect. 4.2.3.2).
On any of the Power Menu pages, press to access a series of pages containing
all the information regarding auxiliary channel power. The first page displays
active, reactive and apparent power, as well as the PF. Use and arrows to
scroll through the pages (See below). In the AUX Menu, the user can also access
the other Auxiliary Channel Menus (Voltages, Currents, Counters, Harmonics,
Waveforms), by selecting them with the relevant function keys.
Press ⊳ to exit the Auxiliary Menu and return to the first page of the relevant
menu.
Average power and PF (calculated on the basis of the integration time set. Values
can be reset as described in Sect. 4.2.3) related to the auxiliary channel.
