Plug the SUBIN interface board into J64A on the K3 RF board as shown in Figure 46. J64A is directly in
front of the KIO3 board in the rear left corner of the K3. Be certain the connector on the SUBIN board is aligned
with J64A so all pins are engaged.

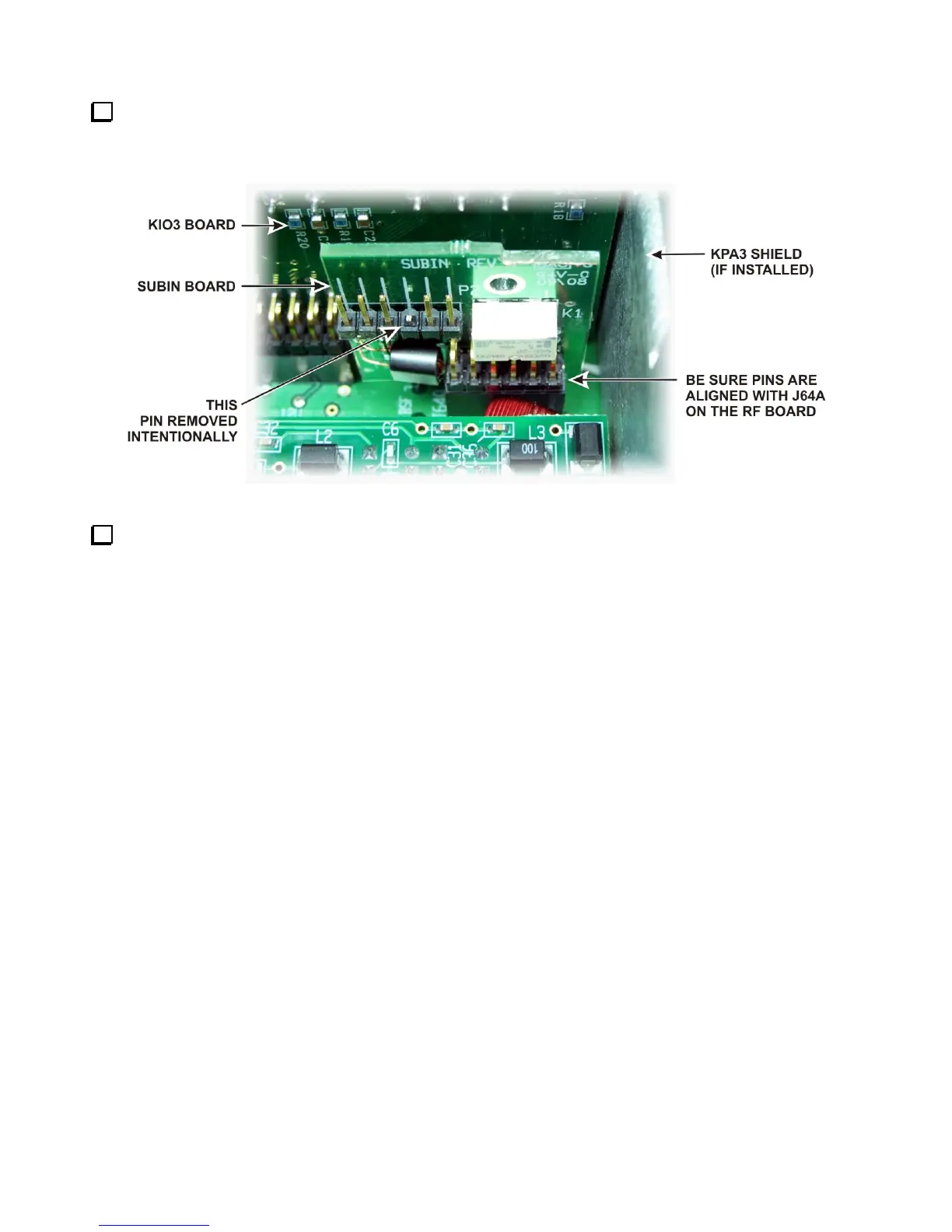

Figure 46. Mounting the SUBIN Interface Board.
Locate J64B on the K3 RF board. It is between the crystal filters and the front panel shield that holds the
KREF3 and KSYN3A boards. J64B should have a plug in the third hole matching a missing pin on the
SUBOUT connector P1 to ensure they are properly aligned.
