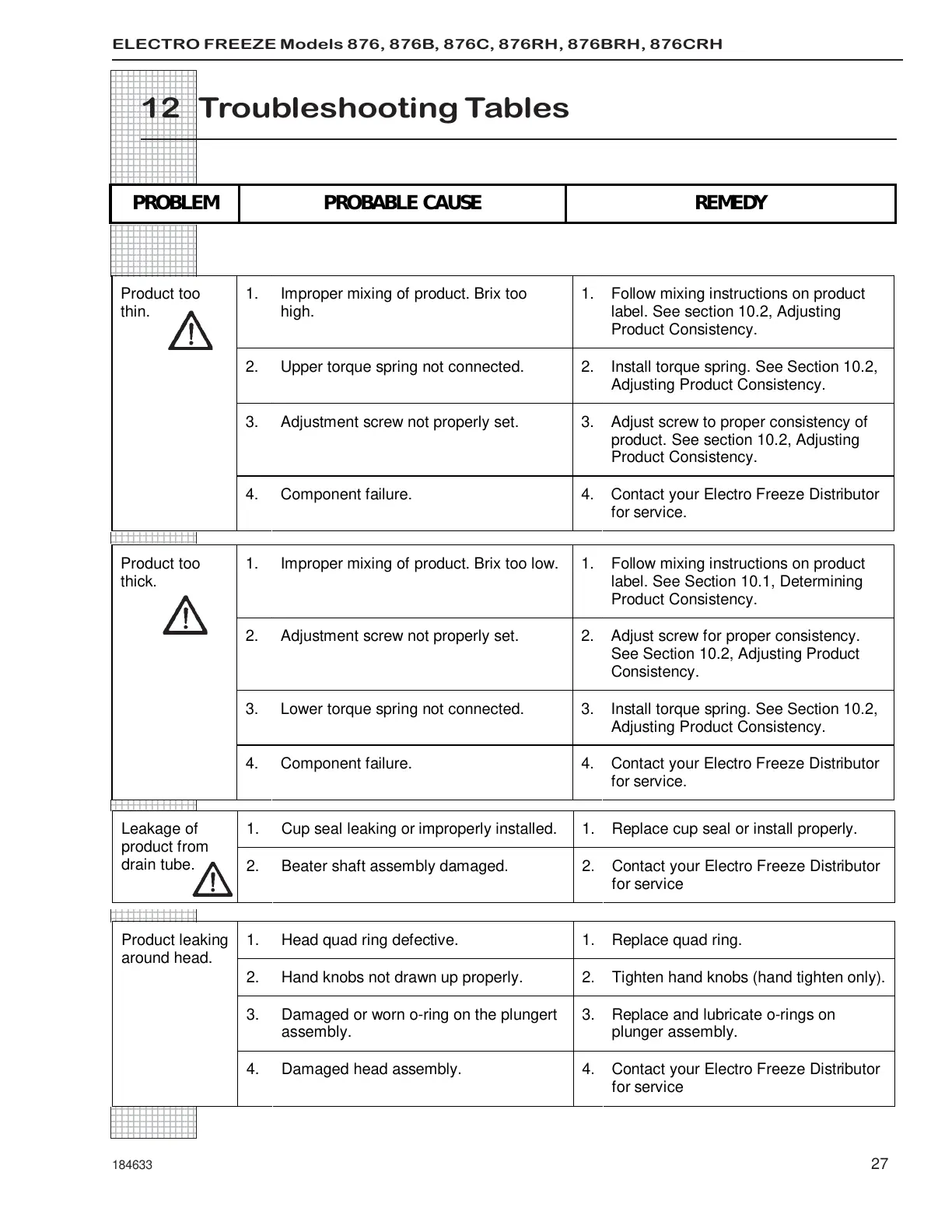

ELECTRO FREEZE Models 876, 876B, 876C, 876RH, 876BRH, 876CRH

12 Troubleshooting Tables

PROBLEM PROBABLE CAUSE REMEDY

1. Improper mixing of product. Brix too

high.

1. Follow mixing instructions on product

label. See section 10.2, Adjusting

Product Consistency.

2. Upper torque spring not connected. 2. Install torque spring. See Section 10.2,

Adjusting Product Consistency.

3. Adjustment screw not properly set. 3. Adjust screw to proper consistency of

product. See section 10.2, Adjusting

Product Consistency.

Product too

thin.

4. Component failure. 4. Contact your Electro Freeze Distributor

for service.

1. Improper mixing of product. Brix too low. 1. Follow mixing instructions on product

label. See Section 10.1, Determining

Product Consistency.

2. Adjustment screw not properly set. 2. Adjust screw for proper consistency.

See Section 10.2, Adjusting Product

Consistency.

3. Lower torque spring not connected. 3. Install torque spring. See Section 10.2,

Adjusting Product Consistency.

Product too

thick.

4. Component failure. 4. Contact your Electro Freeze Distributor

for service.

1. Cup seal leaking or improperly installed. 1. Replace cup seal or install properly. Leakage of

product from

drain tube.

2. Beater shaft assembly damaged. 2. Contact your Electro Freeze Distributor

for service

1. Head quad ring defective. 1. Replace quad ring.

2. Hand knobs not drawn up properly. 2. Tighten hand knobs (hand tighten only).

3. Damaged or worn o-ring on the plungert

assembly.

3. Replace and lubricate o-rings on

plunger assembly.

Product leaking

around head.

4. Damaged head assembly. 4. Contact your Electro Freeze Distributor

for service
