ELECTRO FREEZE Model CS705
14 184952-01
Use only original or authorized replacement parts with this freezer.
Use of unapproved parts will void warranty.
Item Part No. Description
* ............ HC120946 .......... Bearing-Assy. Rear
1............ HC130189 .......... Spacer-Rear Bearing
2............ HC153024 .......... Bearing-Ball 1.00 ID x 2.0472 OD
3............ HC153025 .......... Stamping-Retainer Plate
4............ HC153026 .......... Stamping-Main
5............ HC160105 .......... Nut-Hex 5/16-18 ZN
6............ HC160142 .......... Washer-Lock 5/16 ZN
7............ HC160415 .......... Bolt-Carriage 5/16-18 x 3 ZN
8............ HC140824 .......... Shaft-Drive
9............ HC153614 .......... Sheave-Driven
10............ HC160056 ..........Screw-SK Set
11 ............ HC140823 ..........Cap-Coupling
* Includes items 1 through 7.
Not Shown:
HC113948 ..........Bar-Alignment (Loaner)
(used to align bearings to cylinder)
HC113948-01 .....Bar-Alignment (Purchase)

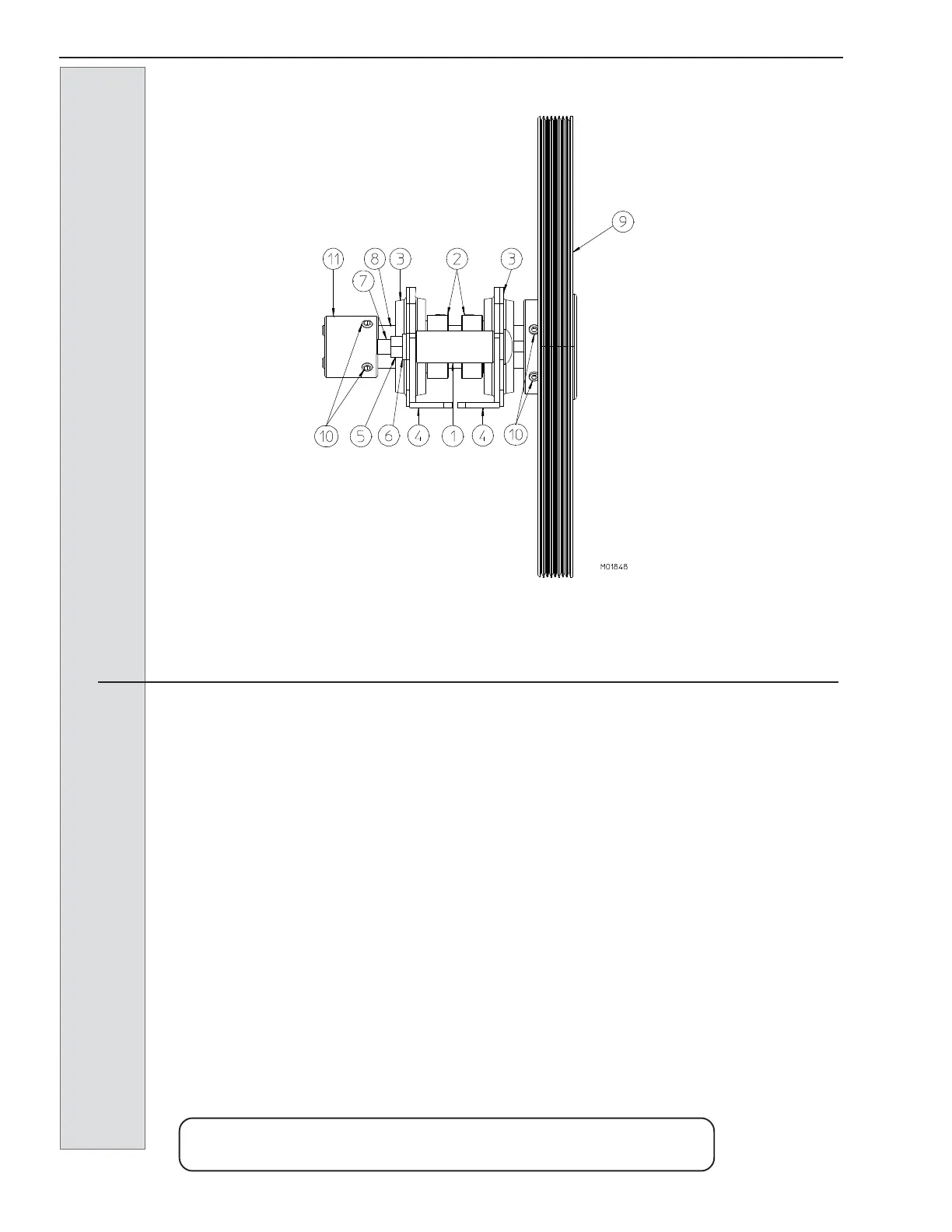

Figure 10 Drive Shaft and Bearing Assembly
