Electro-Voice EVID-S - Alternative Euroblock Connection

Alternative Euroblock connection
Notice!
These instructions apply to the speakers with and without transformers, transformer version
shown. Available for all models except EVID-S4.2T.

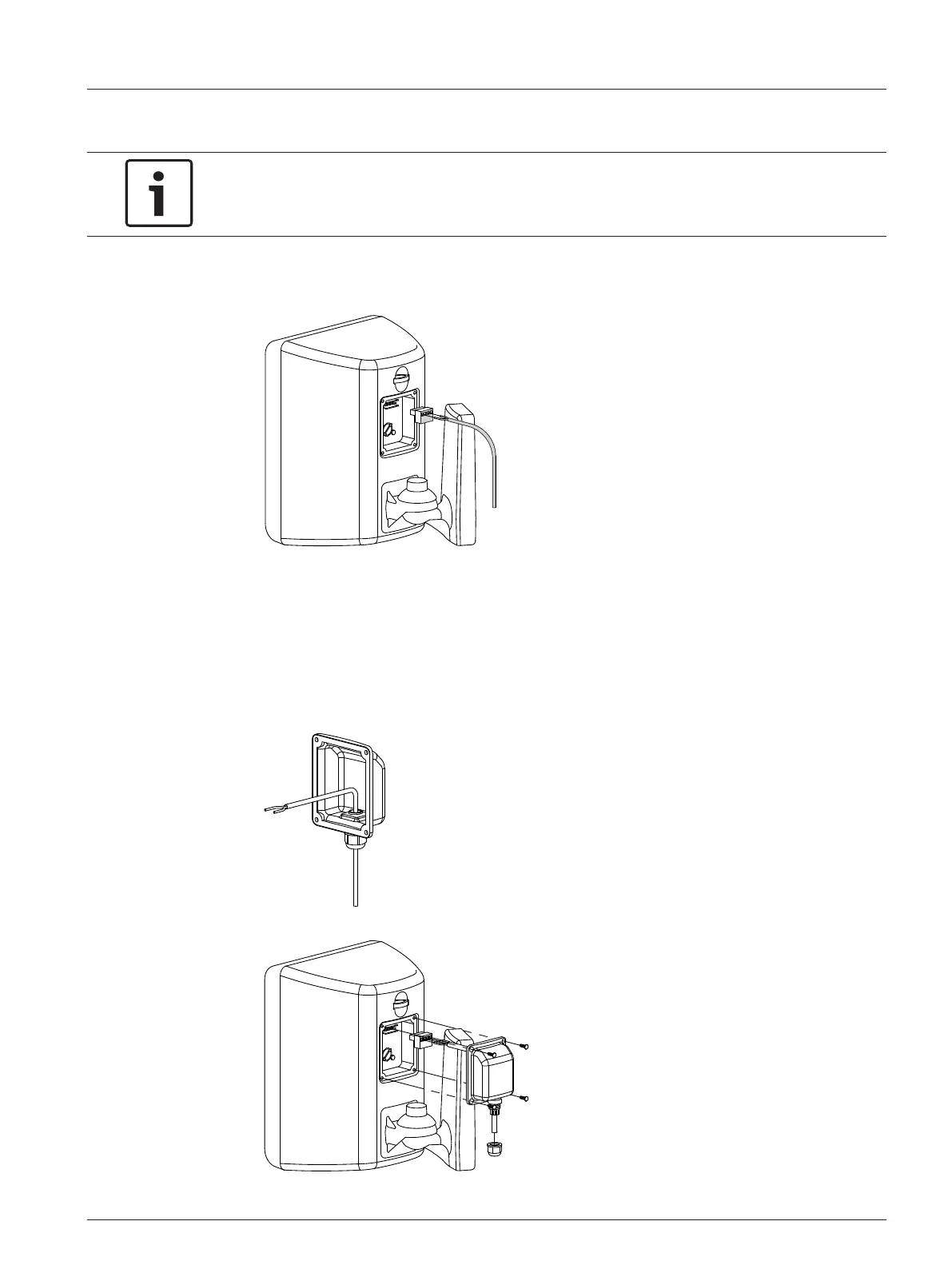

Wiring the speaker using the Euroblock connector
To wire the speaker using Euroblock connector, do the following:
1. Wire the Euroblock connector.
2. Adjust the tap settings, if needed.
3. Mount the speaker.
4. Plug the Euroblock connector into the speaker.
5. Readjust the horizontal or vertical speaker position.
Wiring the speaker using the Euroblock connector and weather cover – optional accessory
To wire the speaker using Euroblock connector and weather cover, do the following:
1. Push the wire through the gland nut.
2. Wire the Euroblock connector (A).
A
B
C
4.2.2
en 15
Electro-Voice Installation manual 2017.08 | 01 | F.01U.345.360
