Page 25

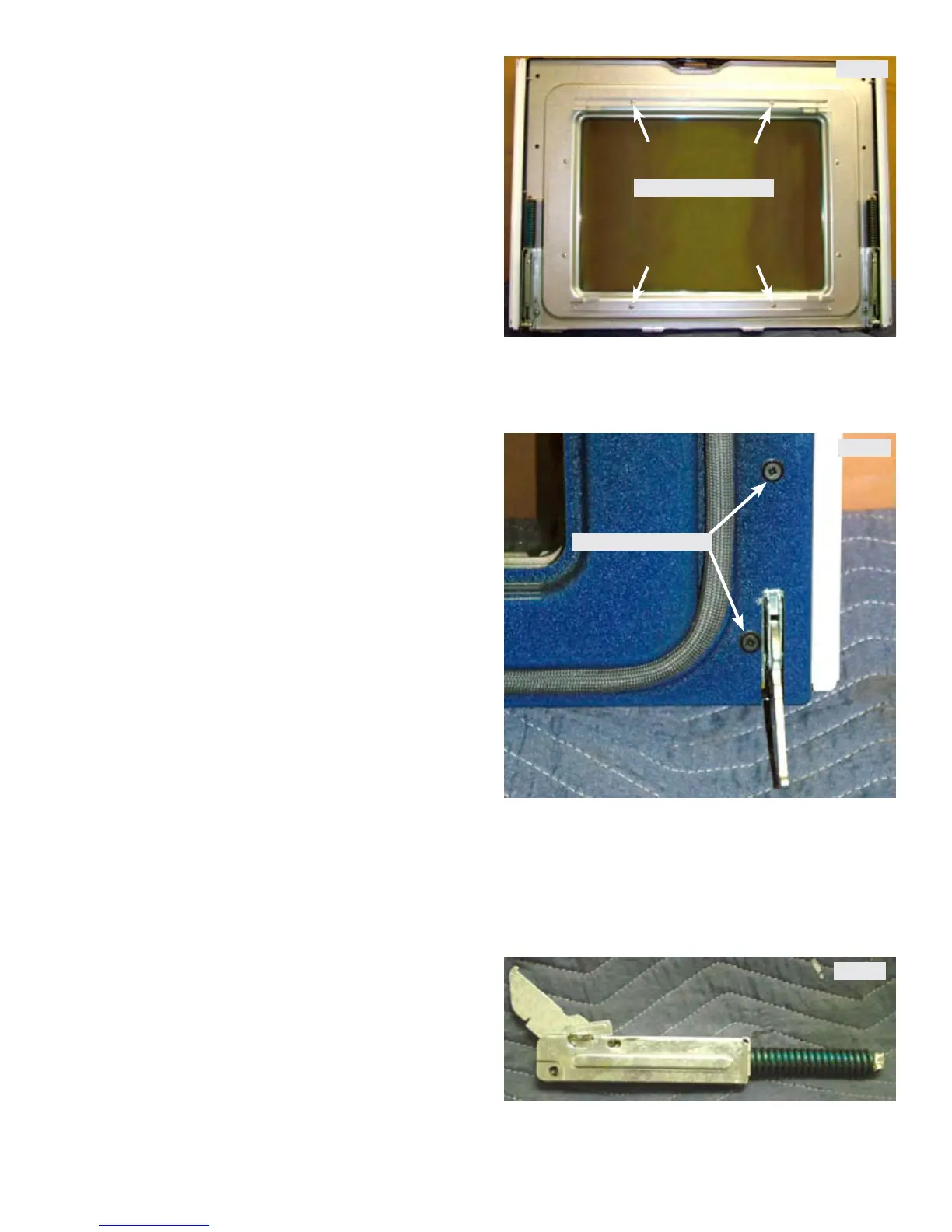

Remove the air wash glass and mounting brackets by
removing the four screws that secure the brackets to
the porcelain door liner. (Photo A)
NOTE: The mounting brackets may be attached to the top
Photo A
REMOVE SCREWS
To remove the door hinge remove two hinge
mounting screws from the outside of the porcelain
door liner and pull the hinge out from the back.
(Photo B)
Photo B
REMOVE SCREWS
The hinges used in different models have the same
general appearance so to help identify the hinge a
color stripe is painted onto the spring. (Photo C)
When replacing the hinge make sure that the spring
color matches the color stated in the parts description
from the part list.
7316508700 Hinge Assembly, door, blue
Photo C
