Page 34
Bake Element

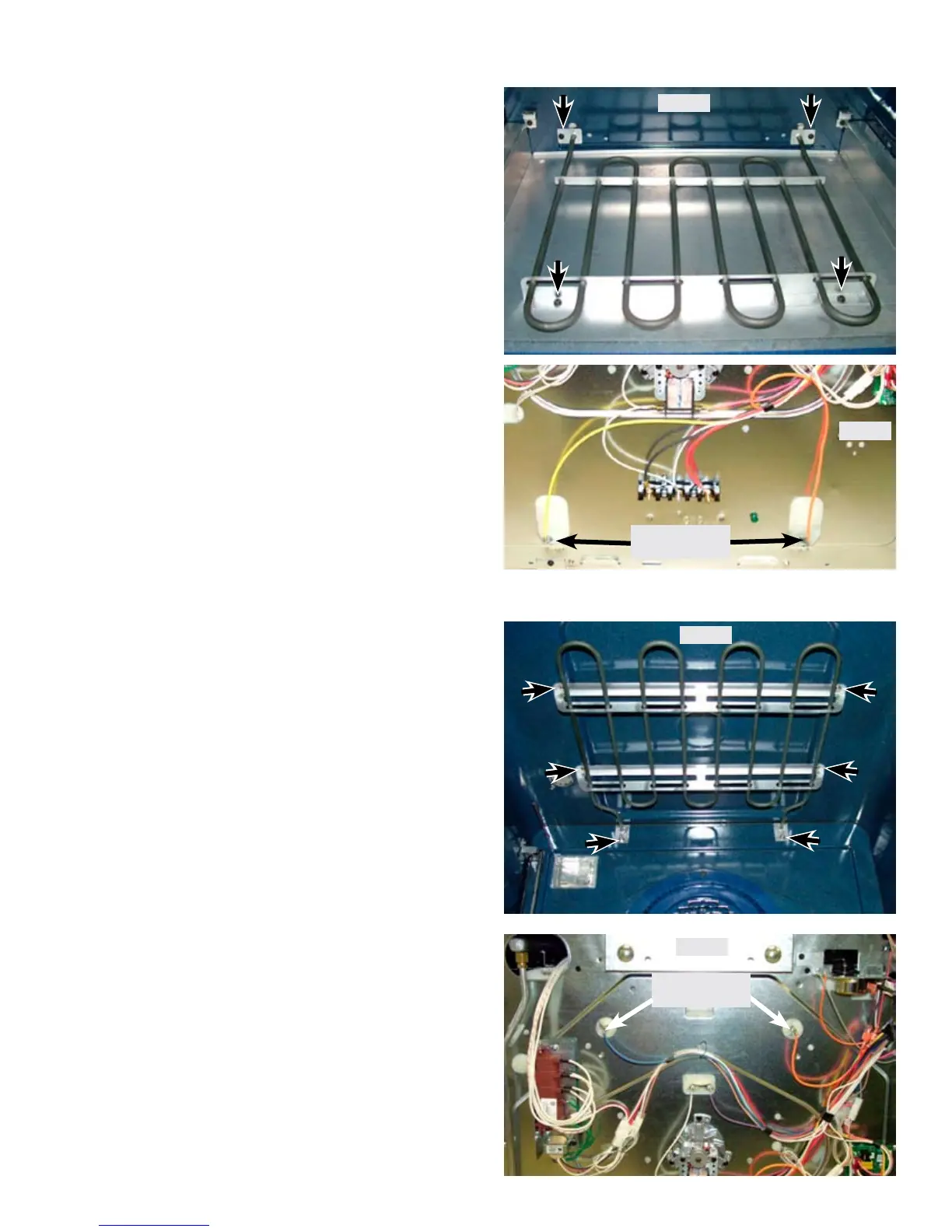

The bake element is eight pass, 240 volts, 3000
watts. It is secured to the oven liner by the four
screws indicated by the arrows in Photo A.
Photo A
Photo C
Before removing the bake element disconnect the
element wires which can be accessed by removing
the lower rear shield on the back of the range.
(Photo B)
Broil Element
Photo B
Bake Element
Wires
Photo D
Broil Element
Wires
The broil element is eight pass, 240 volts, 4000
watts. It is secured to the oven liner by the six screws
indicated by the arrows in Photo C.
Before removing the broil element disconnect the
element wires which can be accessed by removing
the lower rear shield on the back of the range.
(Photo D)
