Page 30

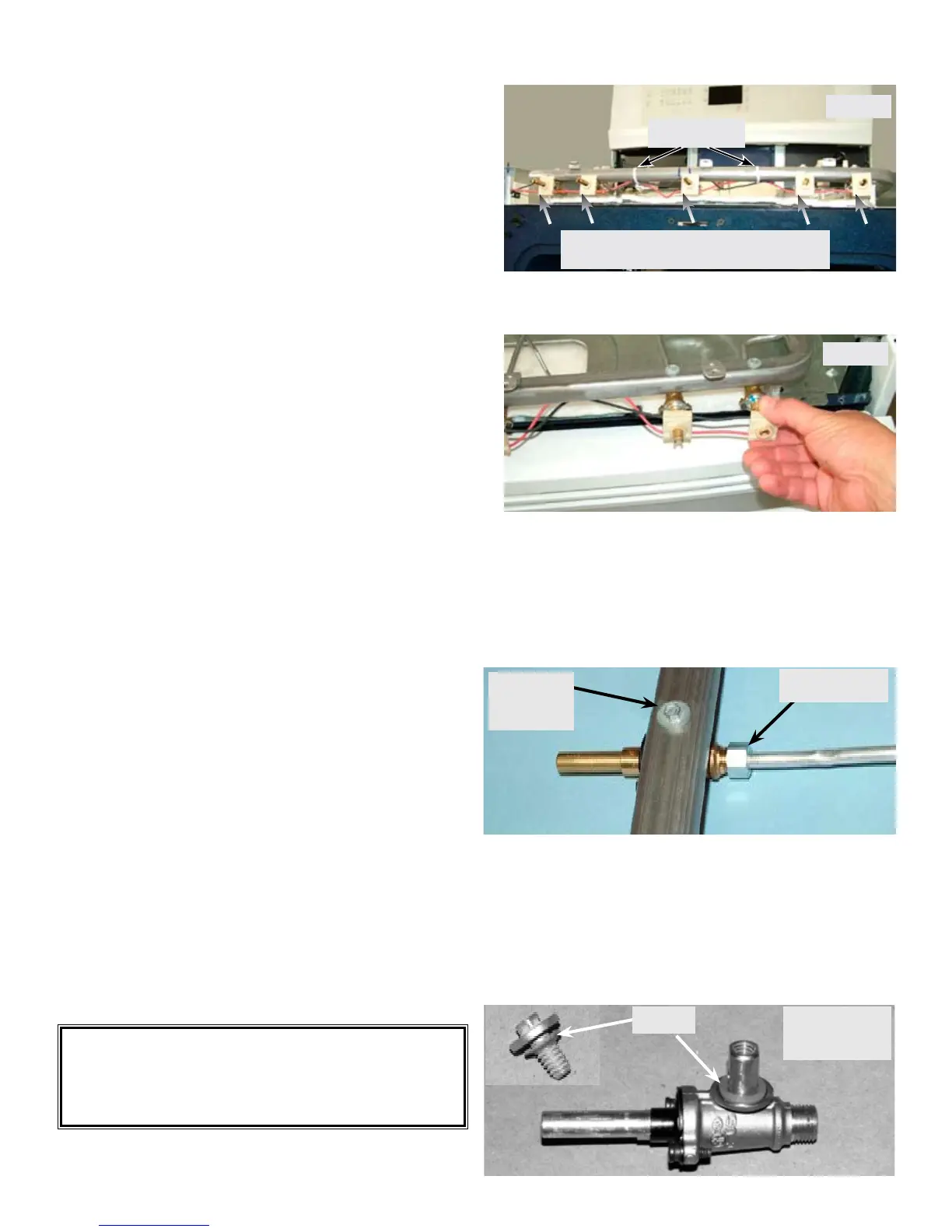

To remove the switches and harness from the
burner valves loosen the wire twist ties that
secure the wire harness to the manifold pipe.
(Photo A)
Harness
Photo A
Pull forward to unsnap the switch housing from
the valve. (Photo B).
When replacing the switches make sure that the
switches snap securely and lock to the valve
body. The slack in the wire harness should lay
under the manifold tube and secure with the wire
twist ties as shown in the photo.
Burner Valve
Washer
Valve
Mounting
Compression
Nut
Disconnect the compression nut that secures the
orice holder assembly gas line to the valve.
Remove the valve mounting screw from the top
side of the manifold tube. The valve can now be
pulled out of the manifold tube from the bottom.
IMPORTANT NOTE: When reinstalling the
burner valve always insure that the washer on
the burner screw and valve body is undamaged
and properly positioned
Replacing Surface Burner Valves
Photo B
