Electrolux EW30DF65GB - Cooktop Removal and Burner Service

Page 27

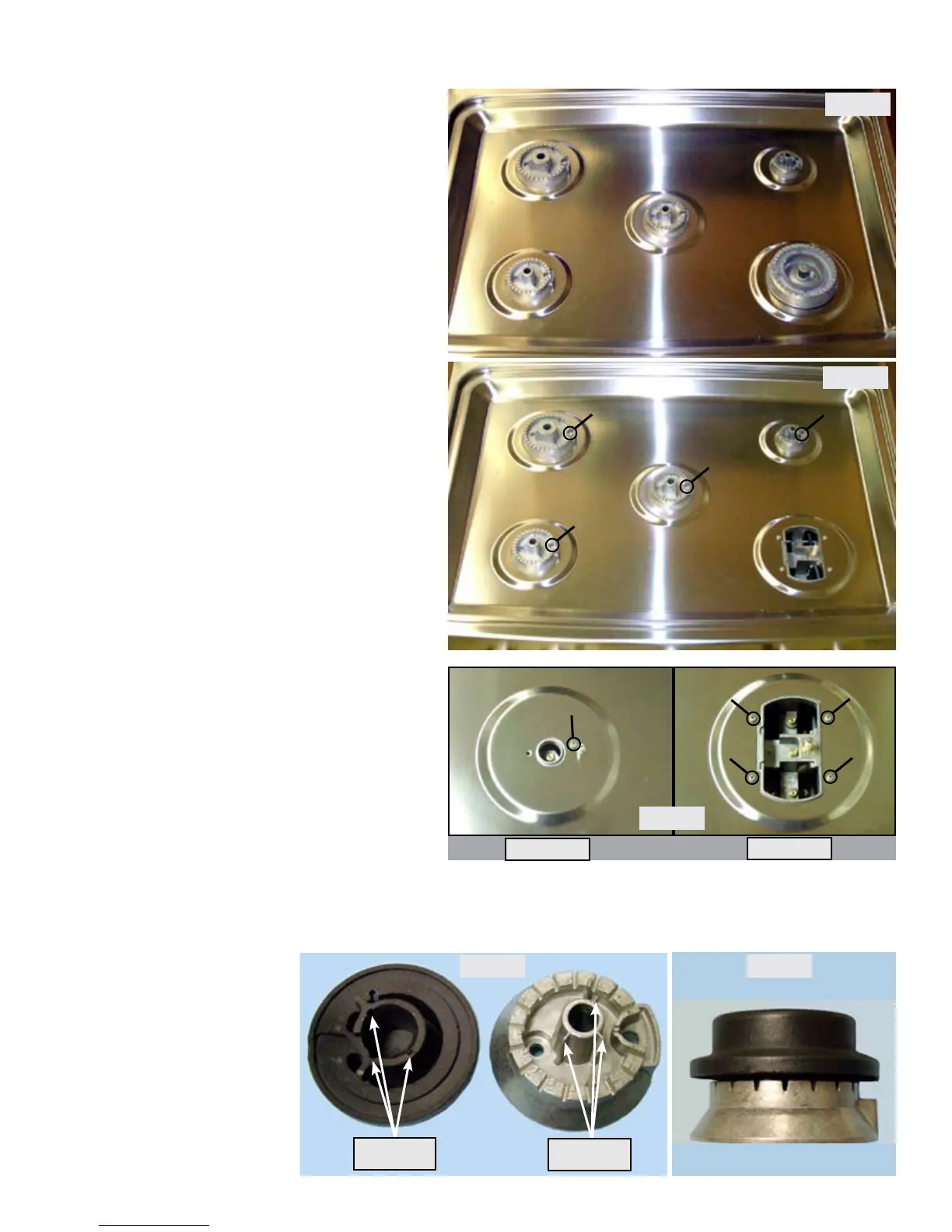

Cooktop Removal - Dual Fuel Models
To remove the cooktop for service rst
remove the grates and burner caps as seen
in photo A.
Photo A
Photo B
Photo C
Left Front
Right Front
Lift the right front burner off the cooktop and
place it aside. The remaining burners are
secured to the top with a single screw in each
burner. (Photo B). Use a #1 square drive bit
to remove these mounting screws at each
burner orice assembly.
Lift off the four remaining burners and place
them aside.
The burner orice holder assemblies are
secured to the top by one screw in each
assembly with the exception of the right front
orice holder which has four screws.
(Photo C)
Use a #1 square drive bit to remove these
mounting screws at each orice holder
assembly.
When reinstalling the burner caps on Wave Touch model gas ranges you must align the grooves on
the underside of the cap with the vanes on the burner. (Photo D)
Photo D
Alignment
Vanes
Alignment
Grooves
Photo E
The cap can must be
properly aligned in order to
be fully seated. (Photo E)
The right front dual burner
and cap do not have
alignment vanes or slots.
