Page 7
RANGE TECHNICAL DATA
Terms and Abbreviations Used In This Manual
TECHNICAL TERMS
BTU = BRITISH THERMAL UNIT
EOC = ELECTRONIC OVEN CONTROL
GND = GROUND
LED = LIGHT EMITTING DIODE
RTD = RESISTANCE TEMPERATURE DEVICE (Temperature Sensor Probe)
VSC = VARIABLE SPEED CONTROL
IWC = INCHES WATER COLUMN ( Unit of measure for testing gas line pressure )
TST = TOUCH SENSOR TECHNOLOGY (Refers to glass touch control panel)
SALES/MARKETING TERMS
Perfect Pair™ = Lower oven in the drawer below the main oven. Also called a Mini Oven.
IQ Touch™ = Control panel display style found on “B” model ranges.
Wave-Touch™ = Control panel display style found on “A” model ranges.

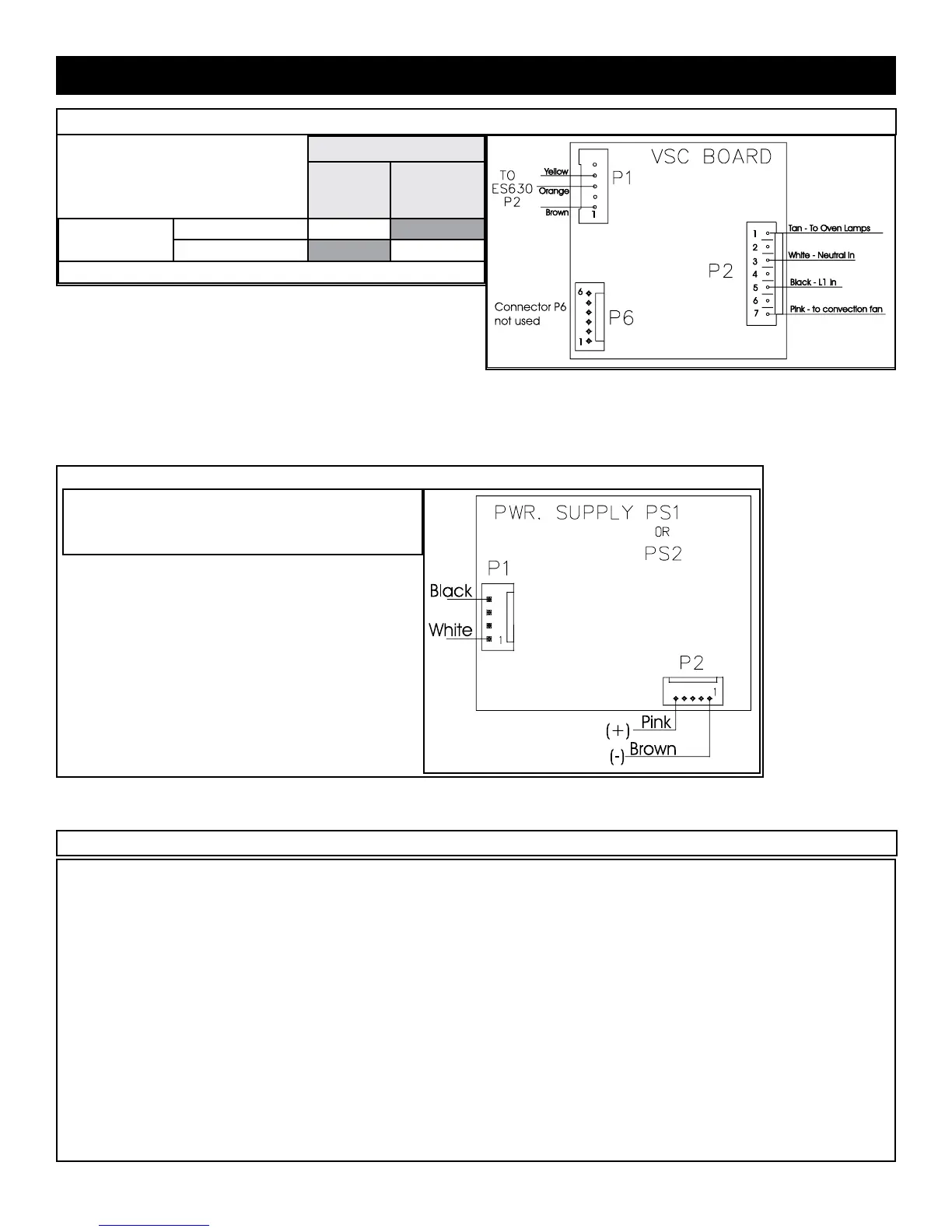

Power Supply Board (PS1 or PS2) Test Points
Connector P1 pins 1 & 4 - 120 vac
Connector P2 pins 1 & 5 - 8 vdc
NOTE: All voltages are approximate.
RELAY CONTACTS
P2/5 (BK)
to
P2/1 (Tan)
P2/5 (BK)
to
P2/7 (Pink)
OPERATION
Oven Lamps X
Convection Fan Mtr. X
X = Contact Closed
VSC Test Points.
Connector P6 pins 1 & 6 - 5 vdc
Connector P2 Pins 3 & 5 - 120 vac
Variable Speed Control Board
NOTE: All voltages are approximate.
