Page 32
The pivot points of the oven rack sensor assembly
should be lubricated annually or more often as
needed.
Use only the approved water based graphite
lubricant available through authorized Electrolux
parts dealers. NEVER use grease or oil of any
kind to lubricate the rack sensor assembly.

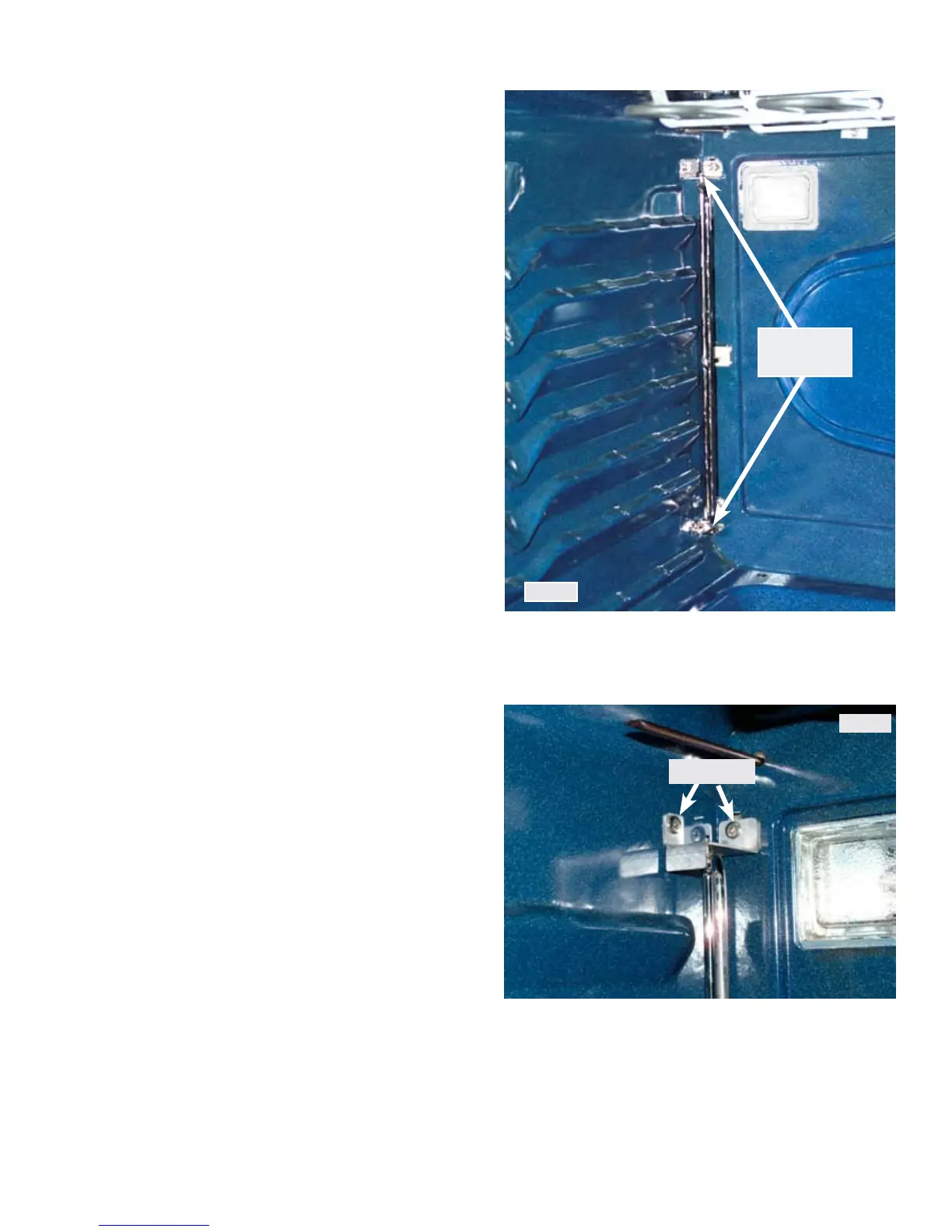

To lubricate the assembly remove all oven racks
from the inside of the oven. Use the dispenser
tip of the lubricant bottle to place a few drops of
lubricant at the pivot points of the rack sensor
assembly bar. (Photo A)
Use the lubricant sparingly, a few drops is all that
is necessary.
Lubricate
Here
Photo A
Rack Sensor Assembly Removal & Maintenance
To remove the rack sensor assembly begin by taking
out the two screws in the top mounting bracket and
lifting the bracket and sensor assembly rod out of the
lower bracket. (Photo B). The lower bracket can now
be removed if necessary.
Mtg. screws
Photo B
To Next Page
