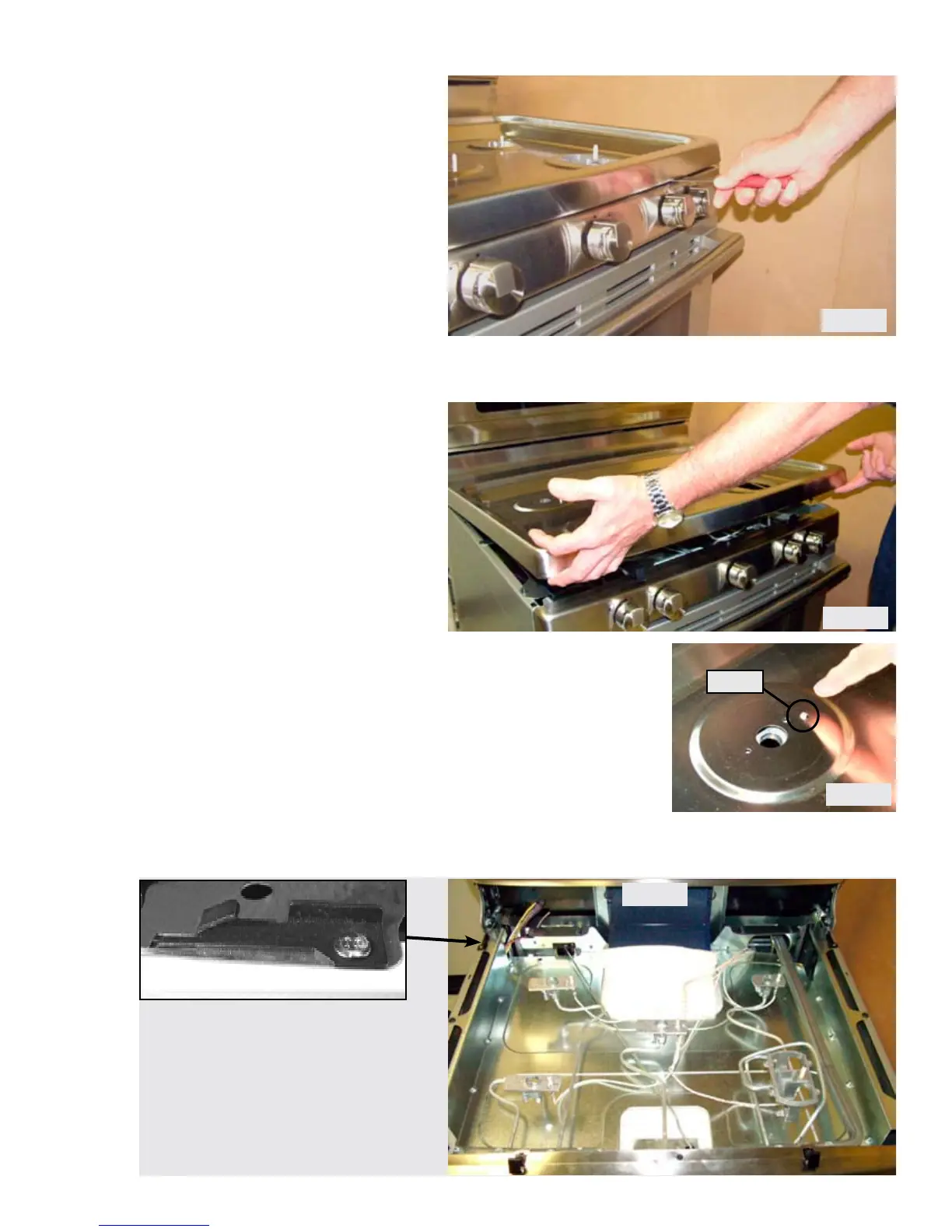

Page 28
When the mounting clips are released the
front edge of the cooktop can be lifted
upward. (Photo B)
Photo B
Photo C
Ignitor
Make sure that the orice assemblies and ceramic ignitors do
not bind in the cutouts in the cooktop when raising the top to
remove it from the range. (Photo C)
Cooktop Removal - Dual Fuel Models
Lift the front of the cooktop and pull forward to disengage the back edge from the rear hinge brackets
on each side of the range. The cooktop can then be lifted clear of the range. (Photo D)
Photo D
Rear Hinge Bracket
Photo A
Insert a putty knife or similar tool between
the main top and manifold panel near the
outside of the front corner. Push the putty
knife toward the rear to release the maintop
mounting clip (Photo A). Repeat for both
sides.
