74
900mm models

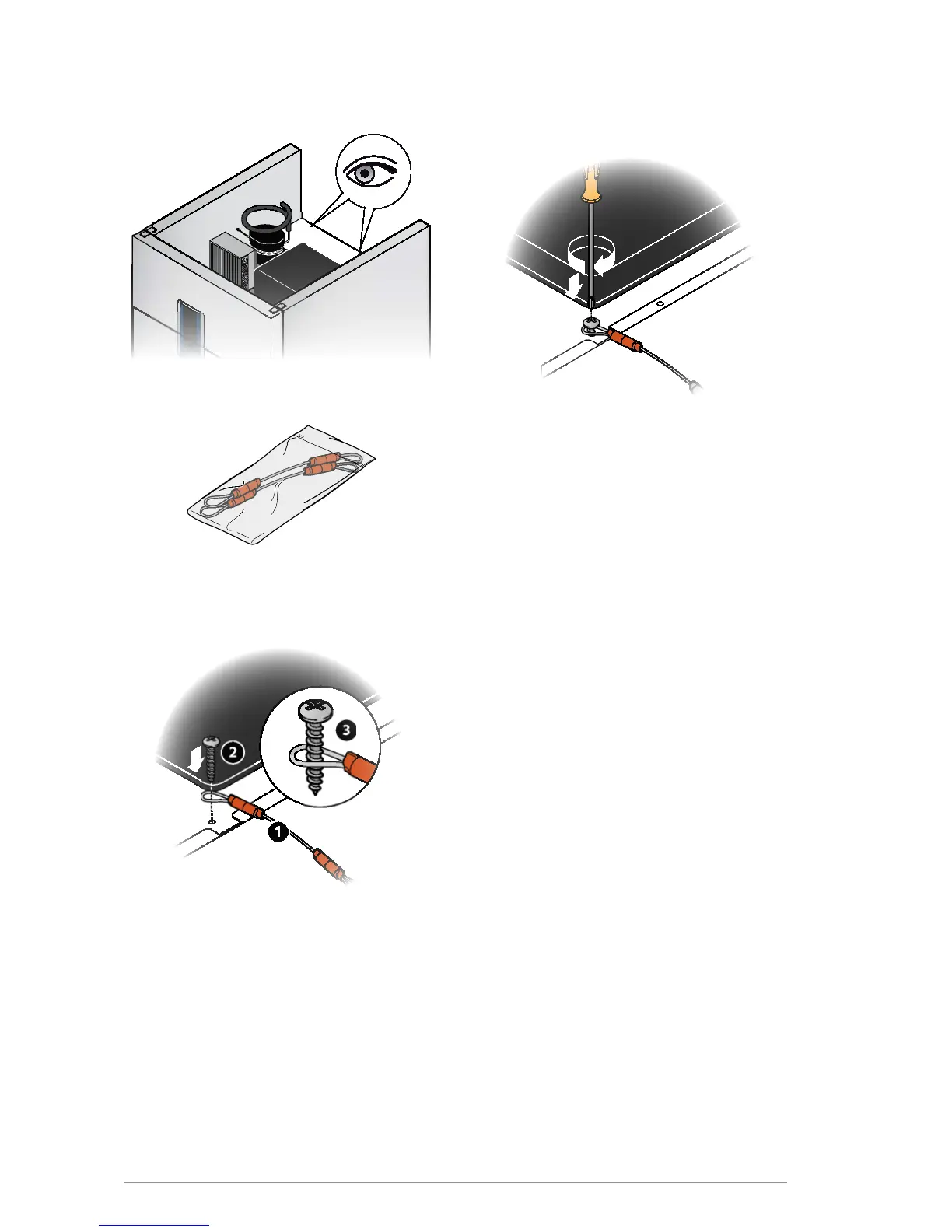

there are 2 holes on the roof of the machine, at the areas
shown in the following gure:
remove the cables from their packing:
join a slot of the cable to one of the two screws supplied
with the machine, as shown below:
retighten the screw complete with the cable on the roof
of the appliance:
the cable, must then be xed to the wall using a plug, to
permanently secure the appliance.
