B.2.7 Reversing opening of half doors
ATTENTION
Disconnect the appliance
from the power supply be-
fore carrying out the door
reversing procedure.
The refrigerated cupboards are normally supplied with right
opening.
When changing to left opening, proceed as follows:
open the control panel, loosening the 2 screws located be-
tween the panel and door;

remove the cap located on the left side and ret it on the
right side of the control panel;

undo the 2 screws of the upper bracket “A”, the hinge fas-
tening screw “B” and the 2 xing screws (Detail 1);

remove the cap “C” from the left side and place it on the
right side (Detail 2);

remove the door, pull out the hinge from its seat, move it
from the right to the left and t it in the hole as shown in
the gure (Detail 3);

remove the middle bracket “D” and x it on the opposite
side of the cabinet (Detail 4)

remove the bottom hinge “E” and the lower bracket “F”
from their seats and ret them in the special seats on the
opposite side (Detail 5);

position the bottom door on the bottom hinge “E”;

x the middle bracket “D”;

position the top door on the middle bracket “D”;

position the upper bracket “A” between the door and the
roof of the appliance, tightening the xing screws;

before tightening the screws, align the door with the cabinet
panel, adjusting the lower and upper brackets and making
sure the seal is perfectly tted on all sides;

then tighten the bracket xing screws.

close the control panel again, securing the 2 screws (previ-
ously loosened) between the panel and door.

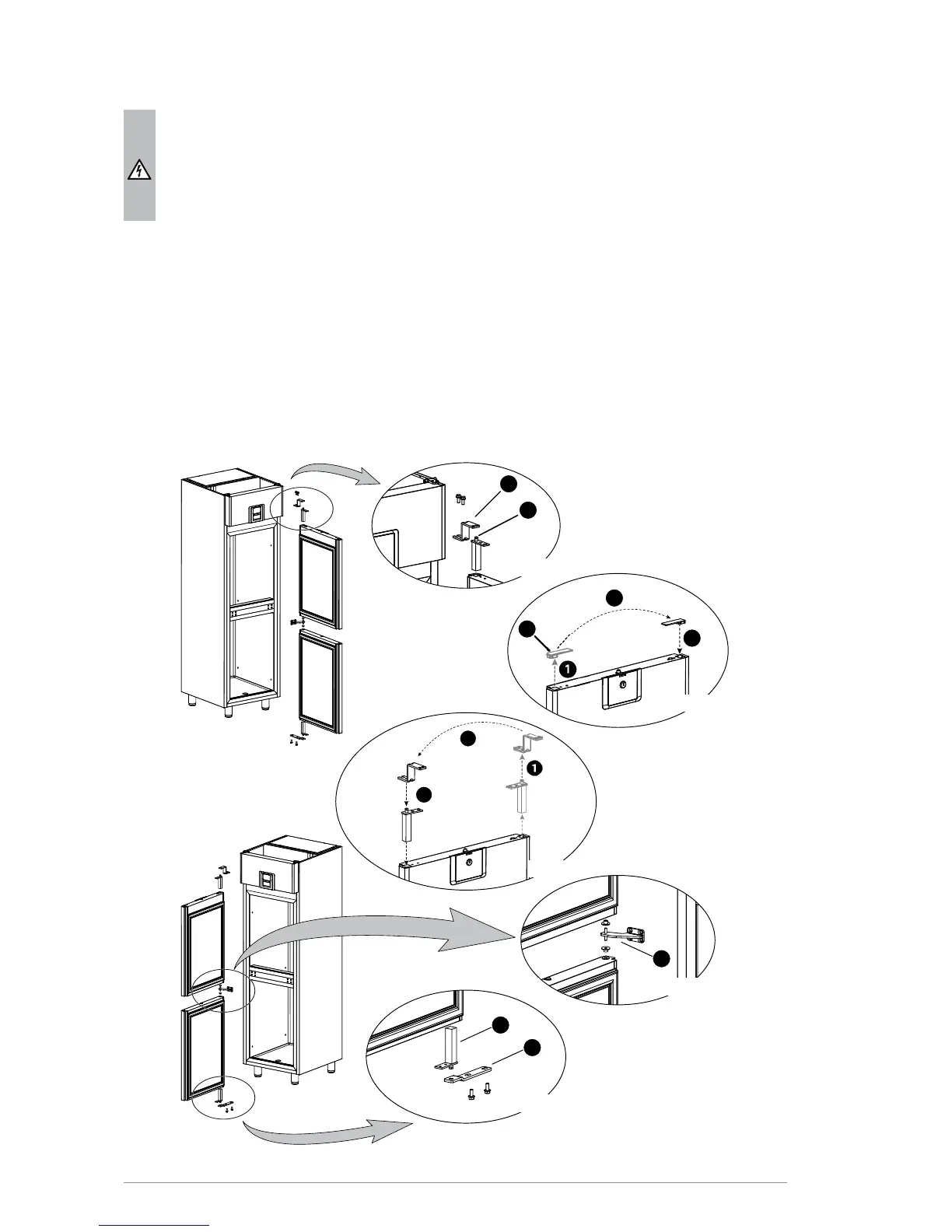

B
