B.2.6 Reversing opening of fully insulated doors
ATTENTION
Disconnect the appliance
from the power supply be-
fore carrying out the door
reversing procedure.
The refrigerated cupboards are normally supplied with right
opening.
When changing to left opening, proceed as follows:


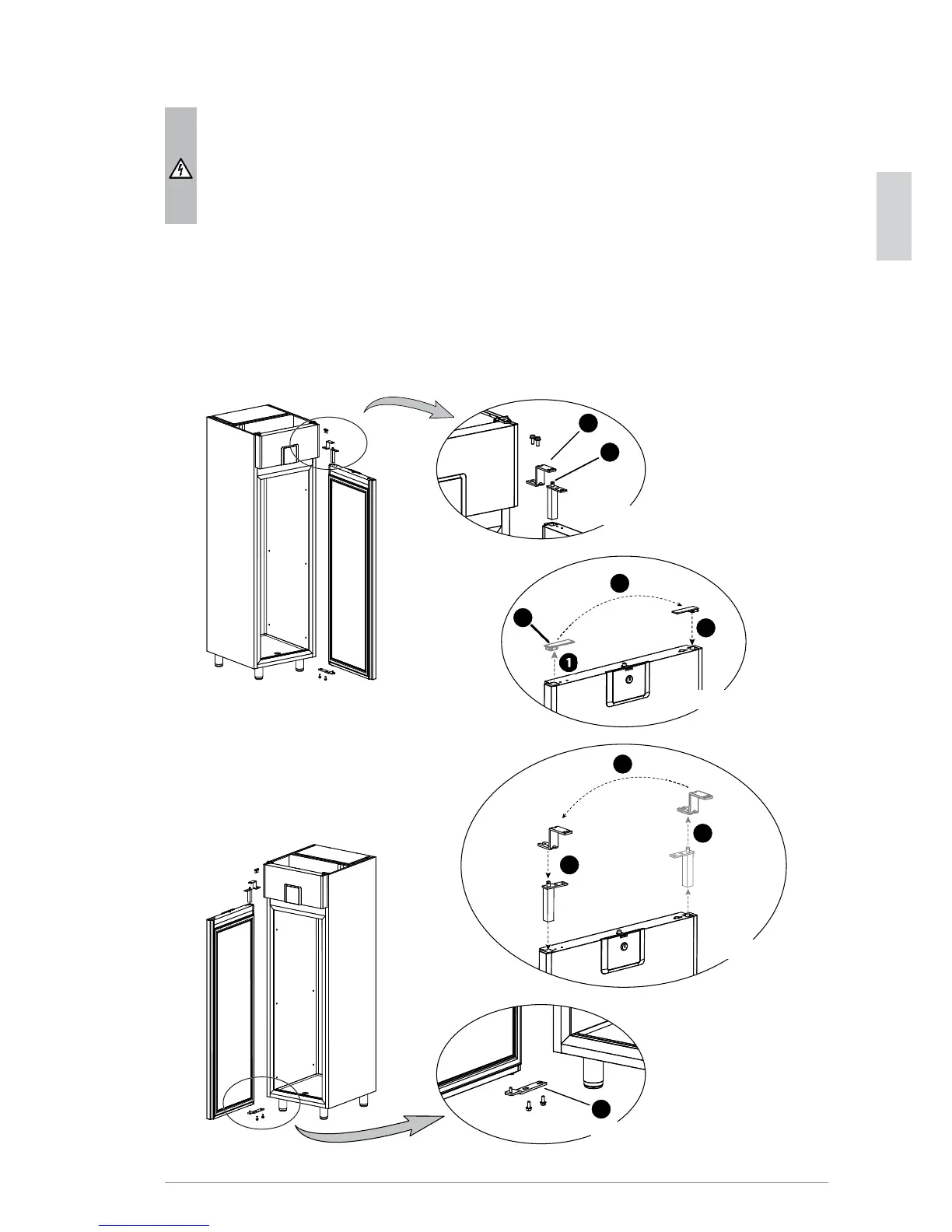

open the control panel, loosening the 2 screws located
between the panel and door;

remove the cap located on the left side and ret it on the
right side of the control panel;

undo the 2 screws of the upper bracket “A”, the hinge
fastening screw “B” and the 2 xing screws (Detail 1);

remove the cap “C” from the left side and place it on the
right side (Detail 2);

remove the door, pull out the hinge from its seat, move
it from the right to the left and t it in the hole as shown
in the gure (Detail 3);

position the upper bracket “A” between the door and the
roof of the appliance, tightening the xing screws (Detail 3);

remove the lower bracket “D” from its seat and ret it in
the special seat on the opposite side (Detail 4);

position the door on the lower bracket “D”;

before tightening the screws, align the door with the
cabinet panel, adjusting the lower and upper brackets
and making sure the seal is perfectly tted on all sides;

then tighten the bracket xing screws;

close the control panel again, securing the 2 screws (pre-
viously loosened) between the panel and door.
B
A
Detail 1
2
3
1
C
Detail 2
2
3
1
Detail 3
D
Detail 4
