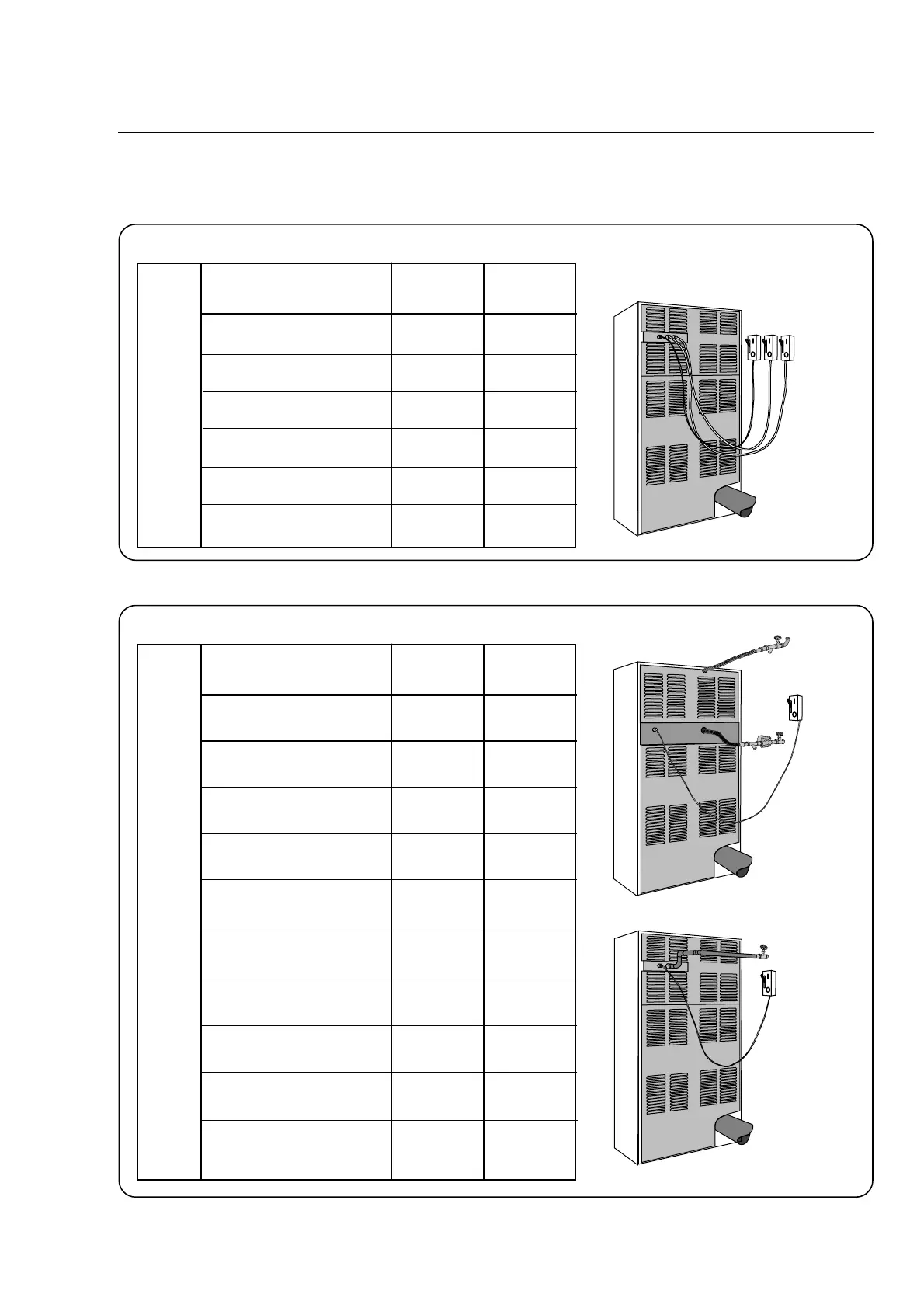

Installation - electric, steam and gas heating
487 18 39 01 - 300/500/750 - GB
35
Cable
for
Electric heating, fuse sizes, effects and voltages
heating 400V *3NAC 50/60 Hz 24.0 kW 40A
motor 2.0 kW 10A
heating 400-440V 3AC 50/60 Hz 24.0 kW 40A
motor 2.0 kW 10A
heating 400V *3NAC 50/60 Hz 30.0 kW 50A
motor 2.0 kW 10A
heating 400-440V 3AC 50/60 Hz 30.0 kW 50A
motor 2.0 kW 10A
heating 230-240V 3AC 50/60 Hz 24.0 kW 2 x 40A
motor 2.0 kW 10A
heating 230-240V 3AC 50/60 Hz 30.0 kW 2 x 50A
motor 2.0 kW 10A
Voltage Heat and
motor effect
Fuse
Only
one
cable
for con-
trol and
motor
Steam and gas heating, fuse sizes, effects and voltages
400V *3NAC 50/60 Hz 2.0 kW 10A
400-440V 3AC 50/60 Hz 2.0 kW 10A
230-240V 3AC 50/60 Hz 2.0 kW 10A
230-240V 1AC 50/60 Hz 2.0 kW 10A
Voltage Total
output
Fuse
Electric installation - type 500/50
Electric
Steam
Gas
* If the machine is equipped with a zero voltage connection, this must always be connected
