Electrolux WMD1050 - Control Pressure Switch for Water Level in the Tub

18
Control pressure switch for water level in the tub

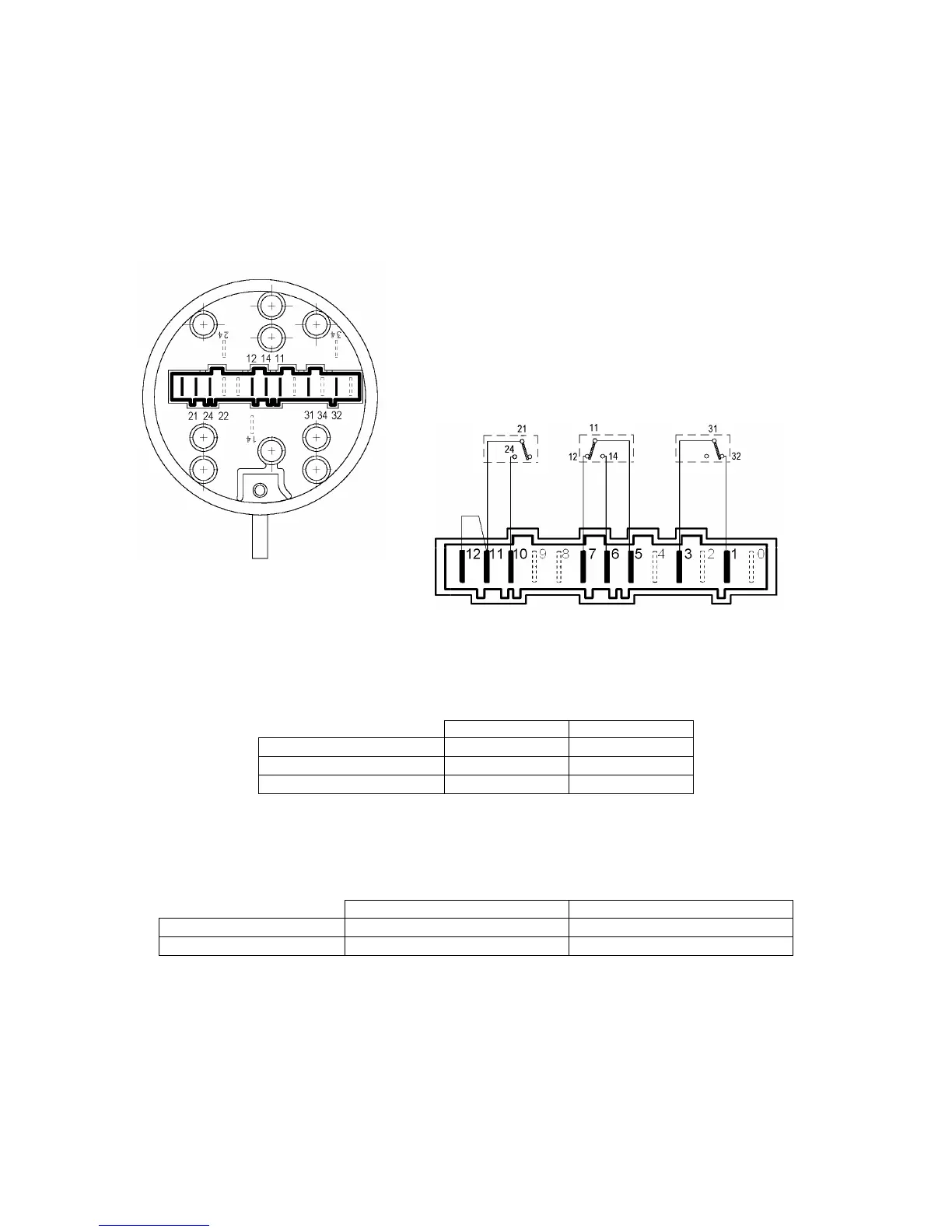

Control of the water level is performed by a three-level pressure switch which functions as follows:
• contact 11-14: anti-boiling safety level
• contact 21-24: first level
• contact 31-32: anti-overflow safety level (not all models)
Pressure switch settings
Full (mm) Reset (mm)
Anti-boiling level
55± 3 35± 3
1st level
80± 3 55± 3
Anti- overflow level
390± 15 240±50
Water fill without wash load
G20 tub (drum volume 47 l) G19 tub (drum volume 42 l)
Anti-boiling level (litres)
3,9 (3,5÷4) 3,5 (3,3÷3,8)
1st level (litres)
6,5 (6÷6,7) 5,8 (5,2÷6,3)
