- 23 -
10.2003 R.K. 599 518 355

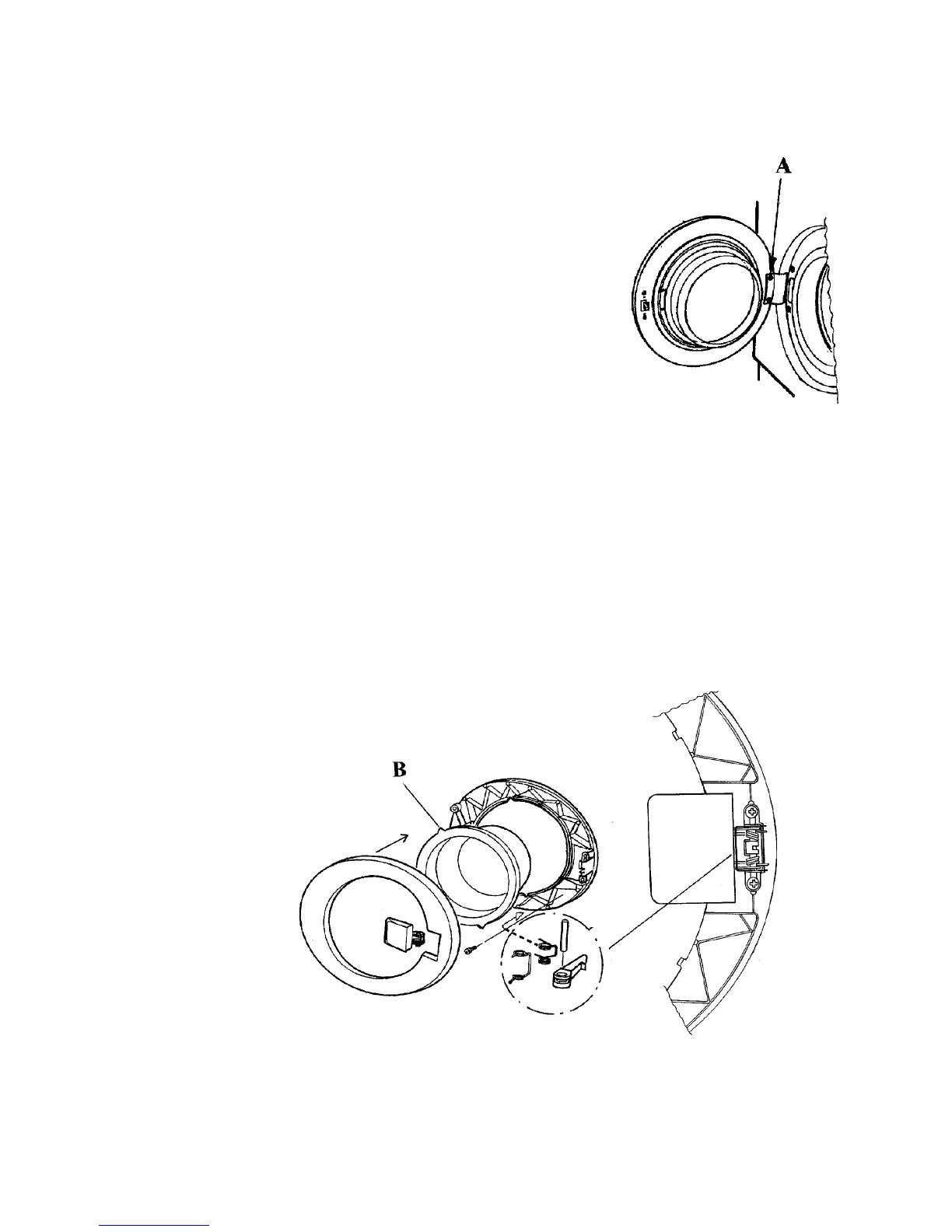

Hatch
Removal:
1 Remove the two screws (A) holding the hatch to Its hinge.
2 The outer hatch frame is snapped over the outer edge ofthe
inner hatch frame. Carefully lever the frames apart and
remove the outer frame.
3 The opening pad with springs, fixed to the inner frame
with 2 screws Is now accessible.
4 The hatch glass Is fixed in the inner frame with 4 plastic projections.
Bend these open to permit removal ofthe glass.
Re-assembly:
1 Place the glass agalnst the inner hatch frame. Check that the 2 projections (B) on the edge of the glass are in
llne with the corresponding spaces In the Inner frame and press Into positlon past the plastic projections.
2 Place the outer hatch frame agalnst the inner frame and press together.
Hatch lock fixed to the Inner hatch
