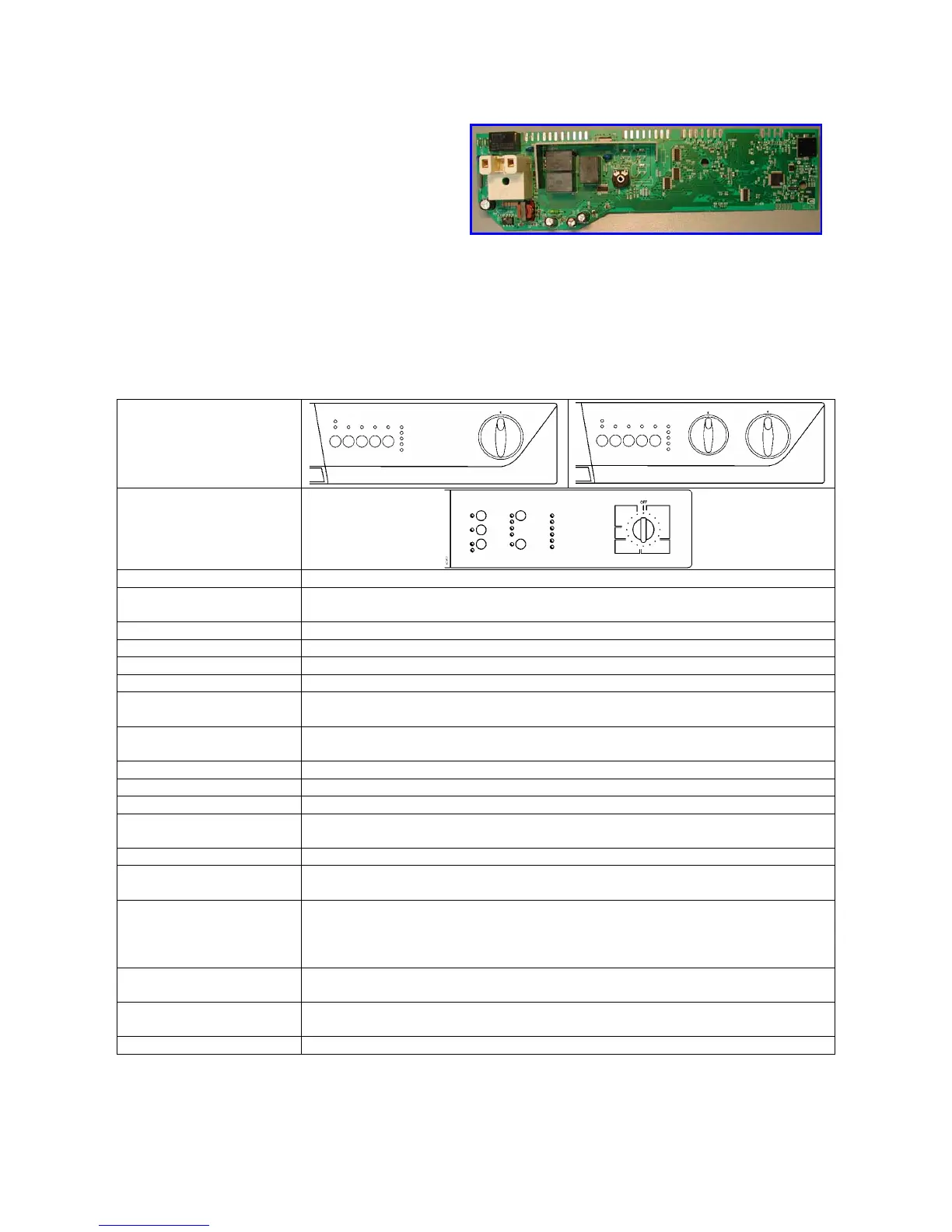

GENERAL CHARACTERISTICS
The EWM 1000 electronic control system consists of
a single PCB, which incorporates the power, control
and display functions.
The PCB is contained in a protective casing located
behind the control panel support. Two basic versions
of the PCB are produced: one with horizontal
pushbuttons and one with vertical pushbuttons.
The EWM 1000 electronic control system may be fitted to the following appliances:
♦ front-loading washing machines manufactured in Spain (Alcalà de Henares) (ESA)
♦ front-loading washing machines manufactured in Germany (Nürnberg) (DGN)
♦ top-loading washing machines manufactured in France (Revin) (FFH)
♦ front-loading washing machines manufactured in Italy (Porcia) (ZP)
Versions with
horizontal pushbuttons
Version with vertical
pushbuttons
Number of buttons
max. 5 (4 options + start/pause)
Number of LEDs
max. 11 for version with horizontal pushbuttons
max. 15 for version with vertical pushbuttons
Programme selector
16 positions with main switch (incorporated in the PCB)
Secondary selector
6 positions for horizontal version only (incorporated in the PCB)
Buzzer
incorporated in the PCB
Serial port
DAAS-EAP communications protocol up to 38400 baud
Power supply
220/240V
50/60 Hz (configurable)
Type of washing
traditional
with “eco-ball” sphere
Rinsing system
Traditional
Motor
Commutator motor
Spin speed
600 - 1400 rpm
Anti-unbalancing
system
FUCS
Water fill
1 solenoid valve with 1 inlet - 2 outlets
Detergent drawer
3 compartments: prewash/stains, wash, conditioners
4 compartments: prewash/stains, wash, conditioners, bleach
Control of water level in
the tub
two-level pressure switch: 1st level and anti-boiling safety level (the other
levels refer to fixed-time fills)
possibility of three-level pressure switch: 1st level, anti-boiling and anti-
flooding safety levels
Door safety device
Traditional (with PTC)
Instantaneous
Power of heating
element
up to 1950W
Temperature control
NTC sensor
