Electronics International MVP-50P Installation Instructions

18
E. E.
E. E.
E.
Airspeed Transducer Installation:Airspeed Transducer Installation:
Airspeed Transducer Installation:Airspeed Transducer Installation:
Airspeed Transducer Installation:

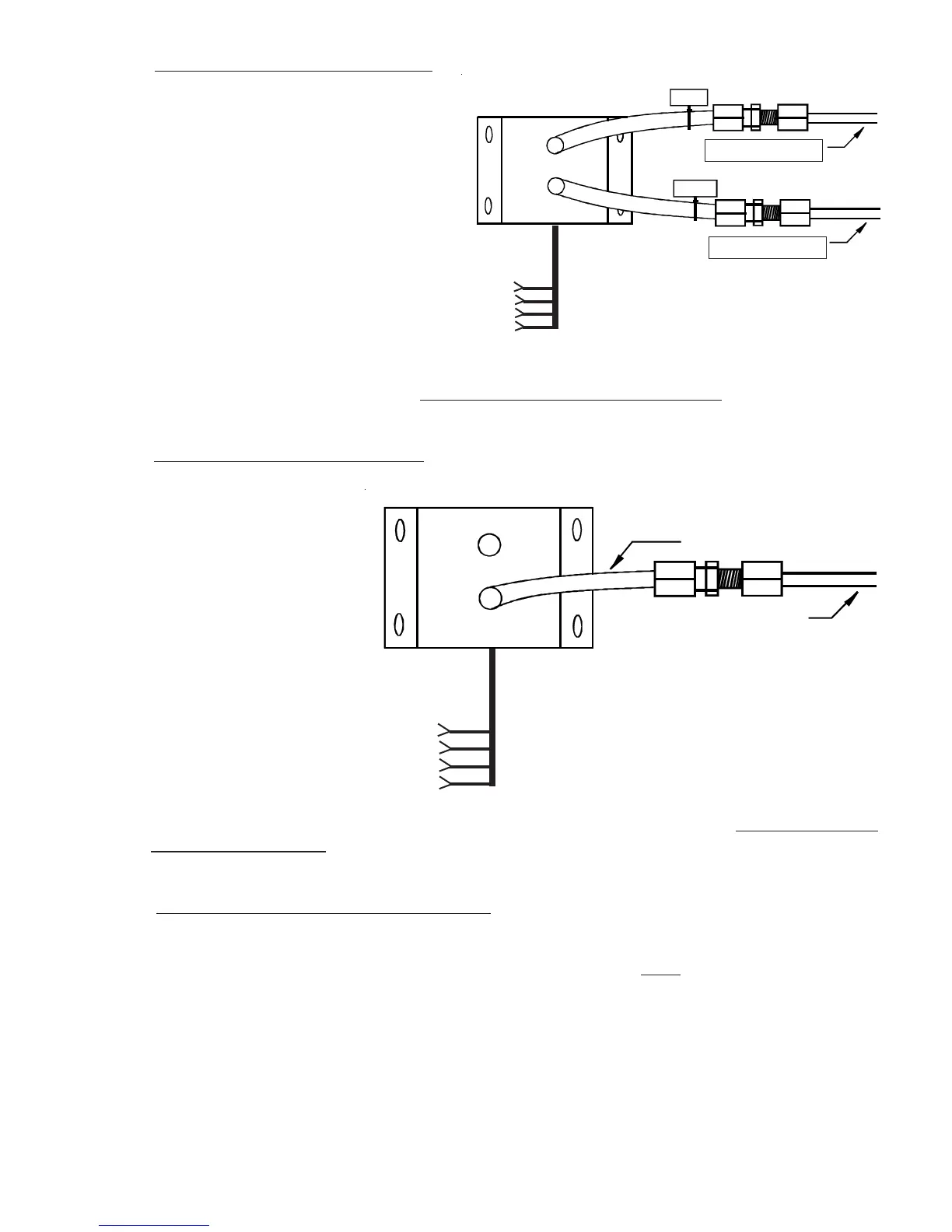

Mount the PT-05Diff Pressure Transducer
on the inside firewall or in the equipment
bay under the aircraft instrument panel.
Use the holes in the bottom plate to mount
the PT-05Diff. Only two mounting holes
are required.
Connect the aircraft pitot
(airspeed) line to the port
tagged "Press" on the PT-
05Diff. Connect the
aircraft static pressure line
to the port tagged "Vac" on
the PT-05Diff. Be sure these lines are tight. The ports are 1/4" flare union. Care should be taken not to put
excess pressure on the flexible lines. Make sure the flexible lines do not kink.
F. F.
F. F.
F.
Altitude Transducer Installation:Altitude Transducer Installation:
Altitude Transducer Installation:Altitude Transducer Installation:
Altitude Transducer Installation:
Mount the PT-30Alt Altitude
Transducer on the inside
firewall or in the equipment
bay under the aircraft instru-
ment panel. Use the holes in
the bottom plate to mount the
PT-30Alt. Only two mounting
holes are required.
Connect the
aircraft static
line to the port
on the PT-
30Alt. Be sure
this line is tight.
The port is a 1/
4" flare union. Care should be taken not to put excess pressure on the flexible line. Make sure the flex-
ible line does not kink.
G. G.
G. G.
G.
Other Pressure Transducer Installations:Other Pressure Transducer Installations:
Other Pressure Transducer Installations:Other Pressure Transducer Installations:
Other Pressure Transducer Installations:
Other pressure transducers should be mounted in the aircraft in the same manner as the Gyro Vacuum
Transducer or the Oil and Fuel Pressure Transducers, as appropriate. Note: Any unused + or - pres-
sure inputs must be wired to a ground pin on the EDC 37-pin connector.
Open or Over-
Gyro Vacuum
Line
(Red)
(Blk)
(Grn)
(Wht)
PRESS
VAC
To EDC
Press Input
(Top Connector)
Pitot Line
Static Line
.170" ID Flexible Tube
Aircraft Static Line
(Red)
(Blk)
(Grn)
(Wht)
To EDC
Press Input
(Top Connector)
