4.1 Attach the MVP 25-pin D-sub Connector to the MVP:
Secure the connector using the supplied mounting screws.
4.2 Connect the EDC RS422 Wires to the MVP RS422 Wires:
Route the EDC RS422 wires to the back of the MVP Display, cut the wires to length and splice them to the
appropriate MVP RS422 wires.

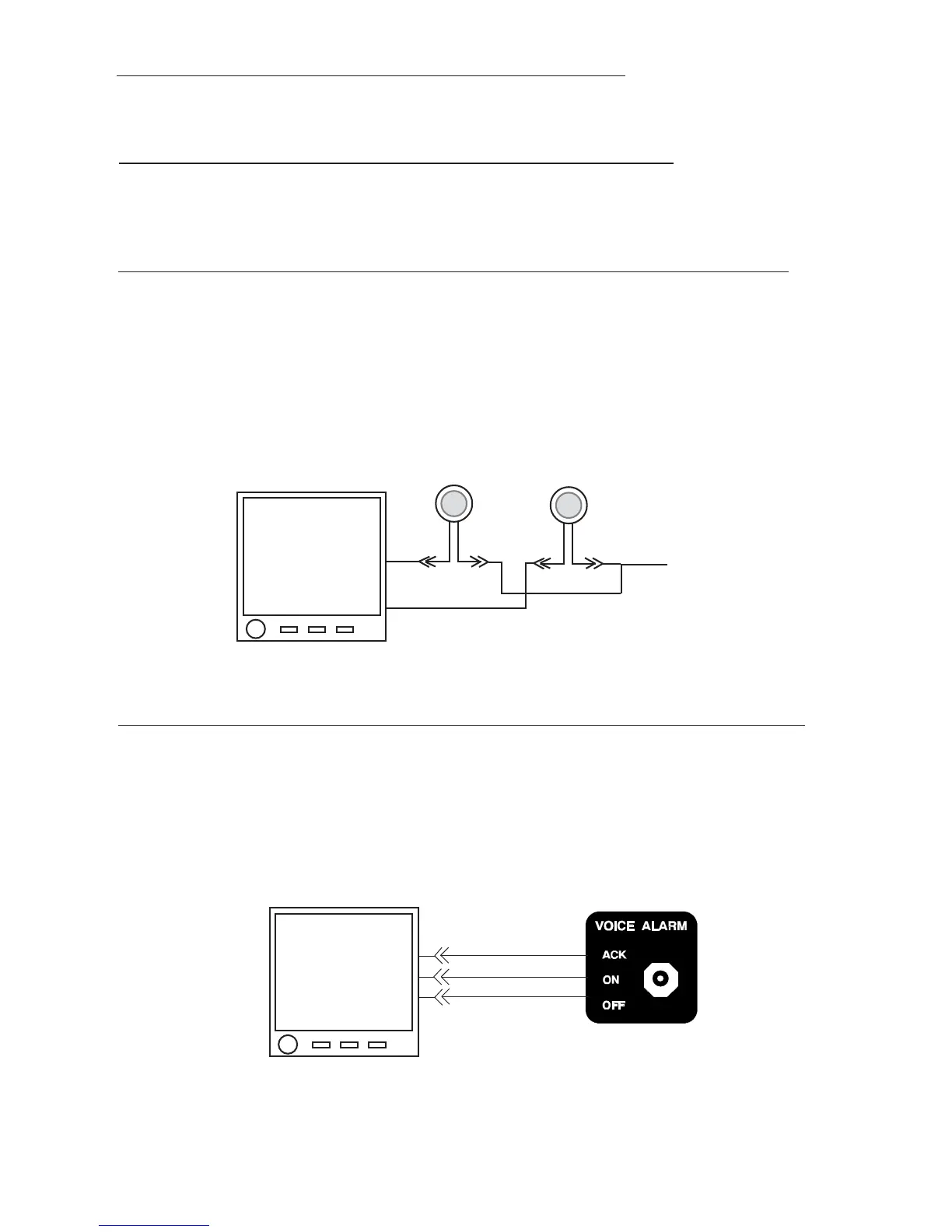

4.3 Connect the MVP Harness to the Master Warning and Caution Lights:
If the Warning and Caution Lights are installed, route the MVP Master Warning Out wire (White/Yellow, Pin
16) to the Master Warning (Red) Light (AL-1R) White/Yellow wire, cut the wires to length, install the appropri-
ate connectors (see the “Working with Connectors” section of this manual for more information) and connect
to the AL-1R.
Route the MVP Master Caution Out wire (White/Yellow, Pin 17) to the Master Caution (Yellow) Light (AL-1Y)
White/Yellow wire, cut the wires to length, install the appropriate connectors (see the “Working with Connec-
tors” section of this manual for more information) and connect to the AL-1Y.
42
Pin 16
To MVP/EDC
5-amp Circuit
Breaker
Wht/Yel Red
Red
Wht/Yel Red
Yel
Pin 17
4.4 Connect the MVP Harness to the Voice Alarm Control Panel (AV-17CP):
If the voice alarms provided by the MVP are to be used, route the three MVP Voice Control wires to the AV-
17CP, cut the wires to length, install the appropriate connectors (see the “Working with Connectors” section of
this manual for more information) and connect to the AV-17CP.
Control Panel
White/Brown
White/Red
White/Orange
(OFF)
(ACK)
(+5V)
MVP
Voice Control
Inputs
20
21
22
To Next Page
