⑤
（KM4*8）4pcs
⑥
①
②
③
06

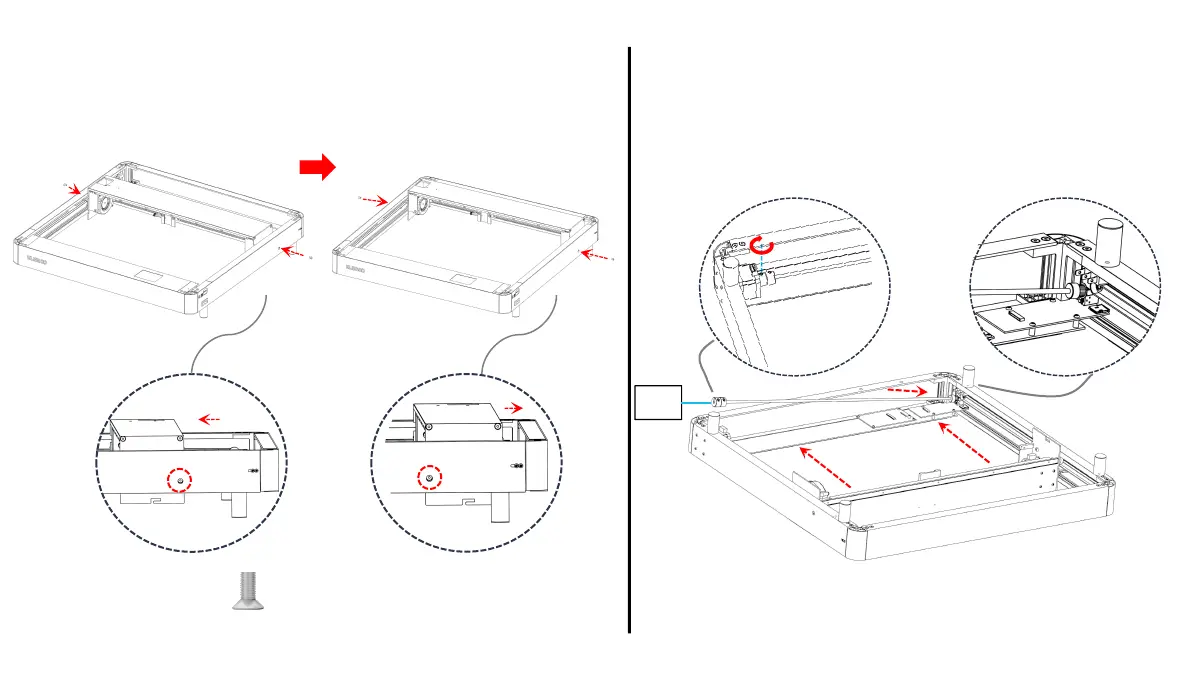

Ø Through the baffle holes reserved on both sides of the
machine, move the middle parts to the corresponding holes
and install and fix the screws respectively.
Ø Install the axis assembly:
① When installing, drag the X-axis assembly against the front baffle.
(keep the X-axis horizontal)
② Pass the synchronous wheel through the synchronous belt and fix
it on the bearing.
③ Connect the coupling with the motor shaft and tighten the screws
to fix it. (loosen the screws on the coupling during installation)
9
