10

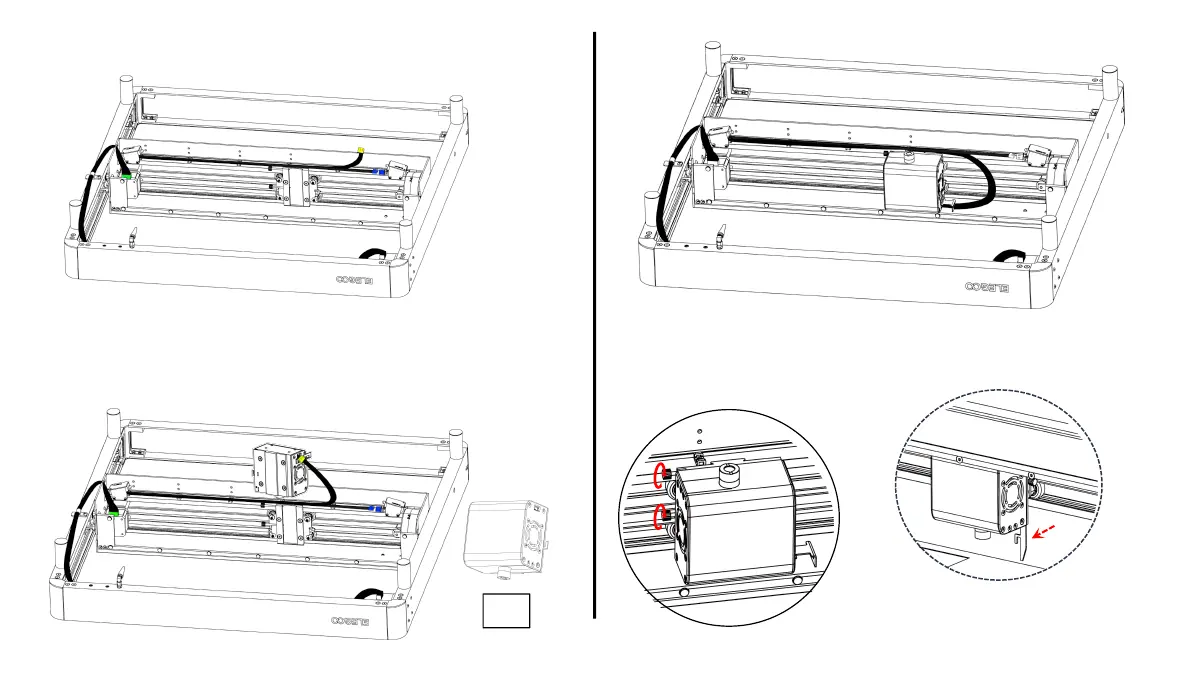

Ø Installation of X-axis assembly wiring:
Ø Plug in the cable plug
Ø Laser device installation:
Insert the laser device along the groove, and use the side screws
to tighten it at the desired height.
Pull out the focal length positioning bar, and
tighten the screws on the side by the height
where the protruding positioning bar
contacts the engraving material.
11
⑪ ⑫
