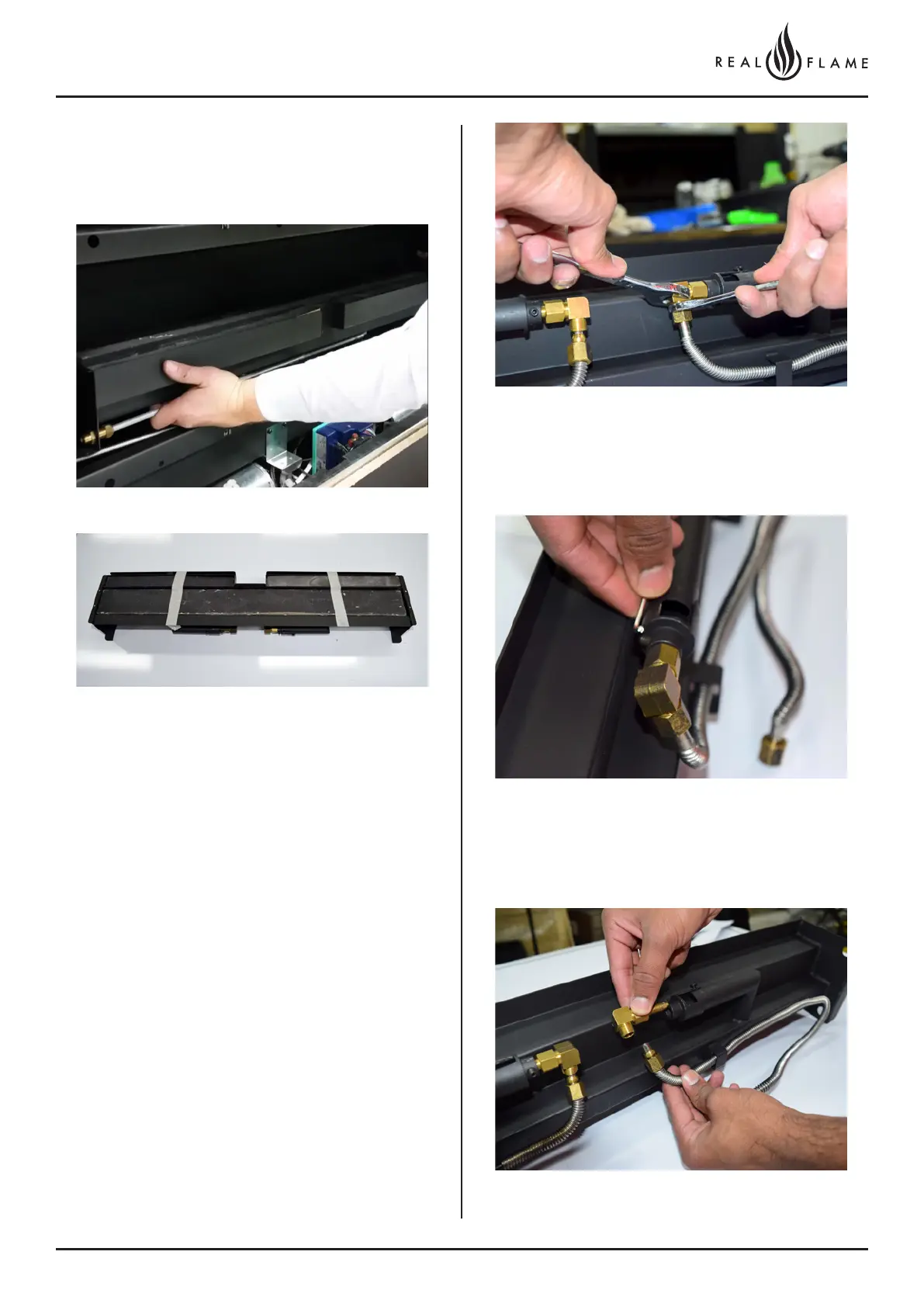

Undo grub screw (Allen key 2.5mm AF ). Injector assembly
can now be removed.
Remove all injector assemblies. Unscrew injector and
replace with correct gas type.
Lift burner out gently. Avoid marking back wall. Keep
burner in the flat position until insulation is restrained
(Rotating the burner may cause insulation to fall and be
damaged.
RECOMMENDED STEP
To avoid damage to the insulation apply low tack tape
to the burner to restrain the insulation into position. Avoid
pressing the tape onto the media. The insulation media
may easily crack if the appliance have been operated
for several hours. The media may be carefully lifted out
and placed flat to store until refitting. The media can be
repainted using an approved high temperature paint,
contact Real Flame for details.
Turn burner over gently. AVOIDING DAMAGING THE
INSULATION
Loosen gas pipe nuts form injectors and move gas pipe
away. Note – 15mm spanner required for the nuts, a
shifter or spanner should be used to support the brass
injector assembly.
