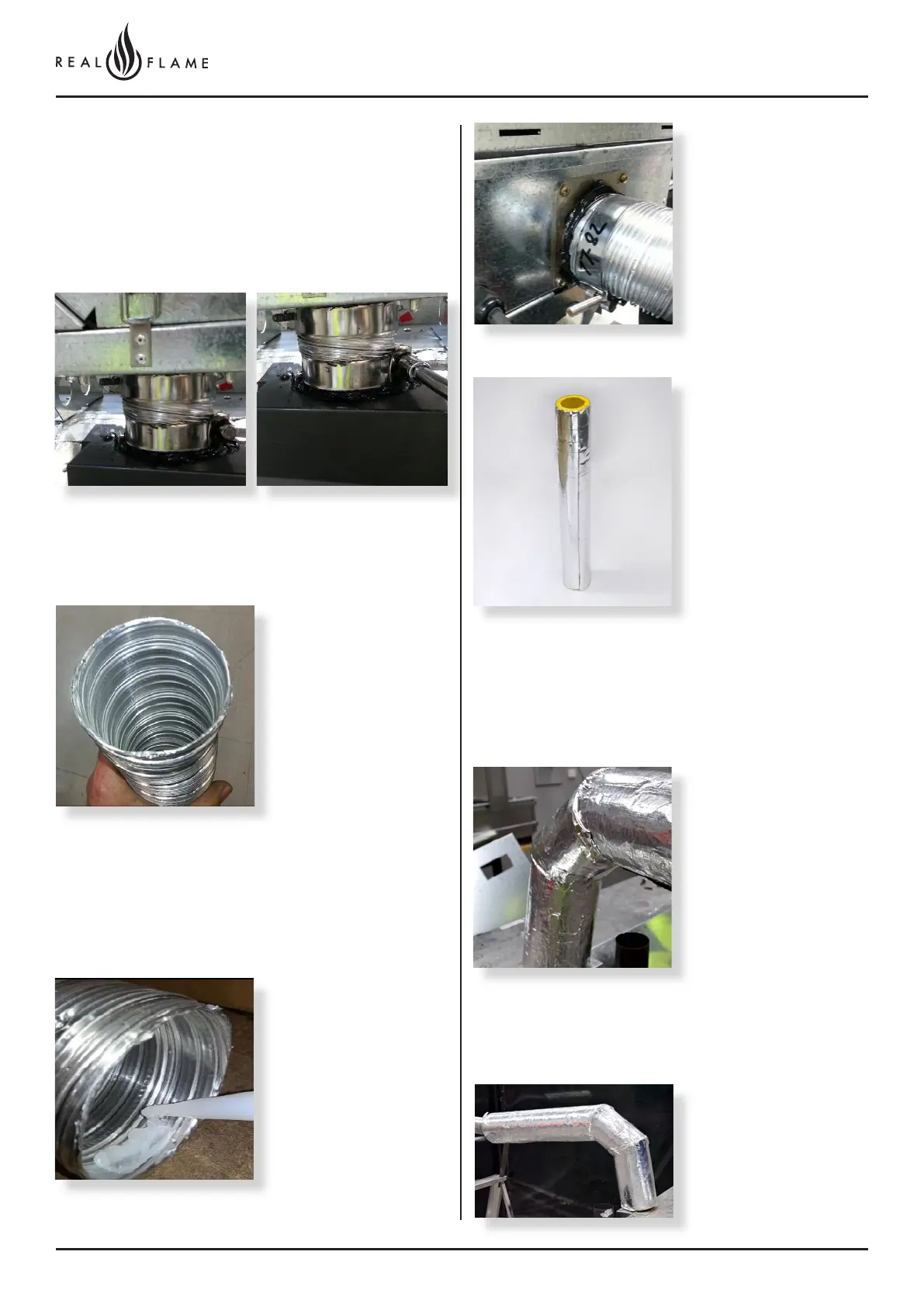

Locate 2nd clamp onto lower connection and tighten
clamp fully.
Wipe excess silicon, visually check connection to ensure
connection is fully sealed.
Fit hot exhaust flue pipe
from outlet termination to
fan outlet connection.
Cut tube to length where
required.
Ensure ends are burr free
and round, test fit flue will
slide over connection.
Apply an 8mm thick silicon
bead fully around heater
connection approx. 10mm
from the top.
Apply an 8mm silicon
bead fully around the
inside of the flue end
(heater connection end)
Fit flue clamp over flue
(loosely).
Slide flue onto connection
spigot fully.
Tighten clamp fully.
Wipe excess silicon,
visually check connection
to ensure connection is
fully sealed.
Insulation must start as close to the gas space heater as
possible
(Only exhaust flue is to be insulated)
Insulation to be fully closed
and sealed along length.
Bends where practical
should be insulated, by
cutting the insulation into
segments and taping
together.
Fit flue exhaust insulation
For all Element 900
installations using inline
fan configurations (where
flue length exceeds 3m),
the first 3m (or up to 3m)
of exhaust flue must be
insulated with 25mm foil
faces glasswool pipe
insulation, as supplied by
Glen Dimplex Australia.
