4 REMOTE CONTROL WITH FULL ELECTRONIC IGNITION
The unit is operated using a remote control (Figure 4.1) or the Element4
Puck, connected to a receiver (Figure 4.2).
The receiver is powered by 4 pen lite (type AA) batteries or a 6V adapter;
2 penlight batteries (type AAA) are used for the remote control. The life
of the batteries is about a year with normal use.
4�1 ADJUSTING THE COMMUNICATION CODE
Before using the appliance, a communication code must be set between
the remote control and the receiver. The code is chosen at random from
the 65000 available codes. Therefore there is a slim chance that other
remotes in your area use the same code.
Please do the following
Press the reset button on the receiver until you hear two beeps. After the
second longer signal, let go of the reset button (Figure 4.2).
Within 20 seconds, press the down arrow on the remote control until you
hear a sound signal. This is conrmation of the proper communication.
AM
PM
ON
1 2
OFF

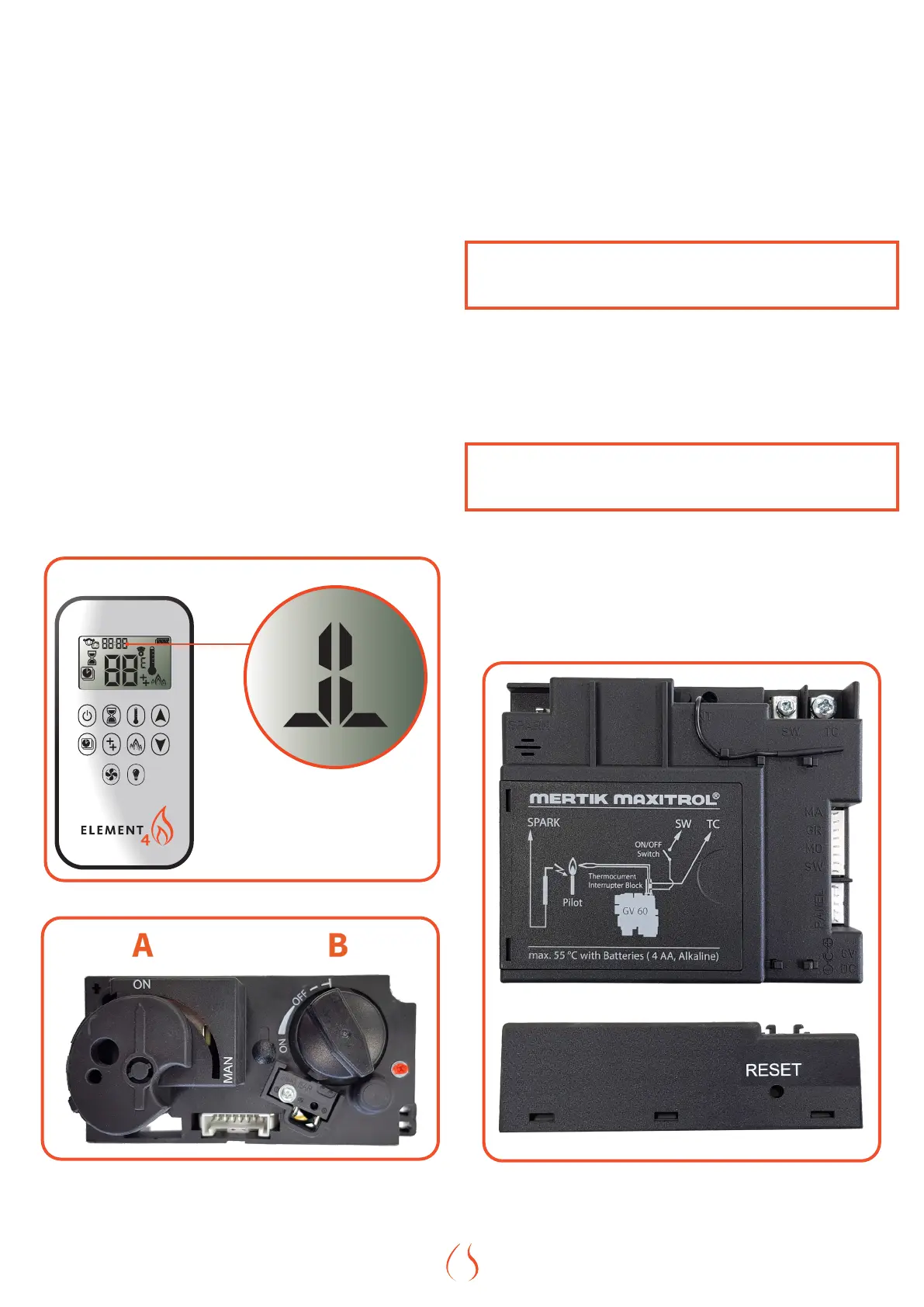

Figure 3.1 | Remote and ignition sign
Figure 3.2 | Gas Block Figure 3.3 | Top and side view of the Receiver
4�2 IGNITING THE PILOT LIGHT
Check that the control knob (A) is in the ON position( Figure 4.3). Press
the button on/o button of your remote control and continue to hold
down (3 to 5 sec.) until you hear two short beepes.
The ignition sign will appear at the top of the screen (Fig. 4.1) Now
release the button. The ignitionprocedure is started.
NB: If the pilot light doesn’t remain lit after 3 attempts you must turn o
the gas tap and warn your installer.
4�3 IGNITING THE MAIN BURNER
After starting the pilot, knob B will automatically rotate counter clockwise
and the main burner will start burning (Fig 4.3). Always wait 5 minutes
after killing the pilot light before you start the pilot ame again.
NB: The pilot light must ignite the main burner, evenly and without a
thud, if it does thud, close the gas tap and warn your installer.
4�4 SWITCHING OFF THE FIREPLACE
You switch o the replace by pressing the on/o button, this also turns
o the pilot light! For a detailed description of the E-save remote control,
please refer to the E-save manual which is included with the replace.
