Elite CSW-200-UL Series User Manual

24

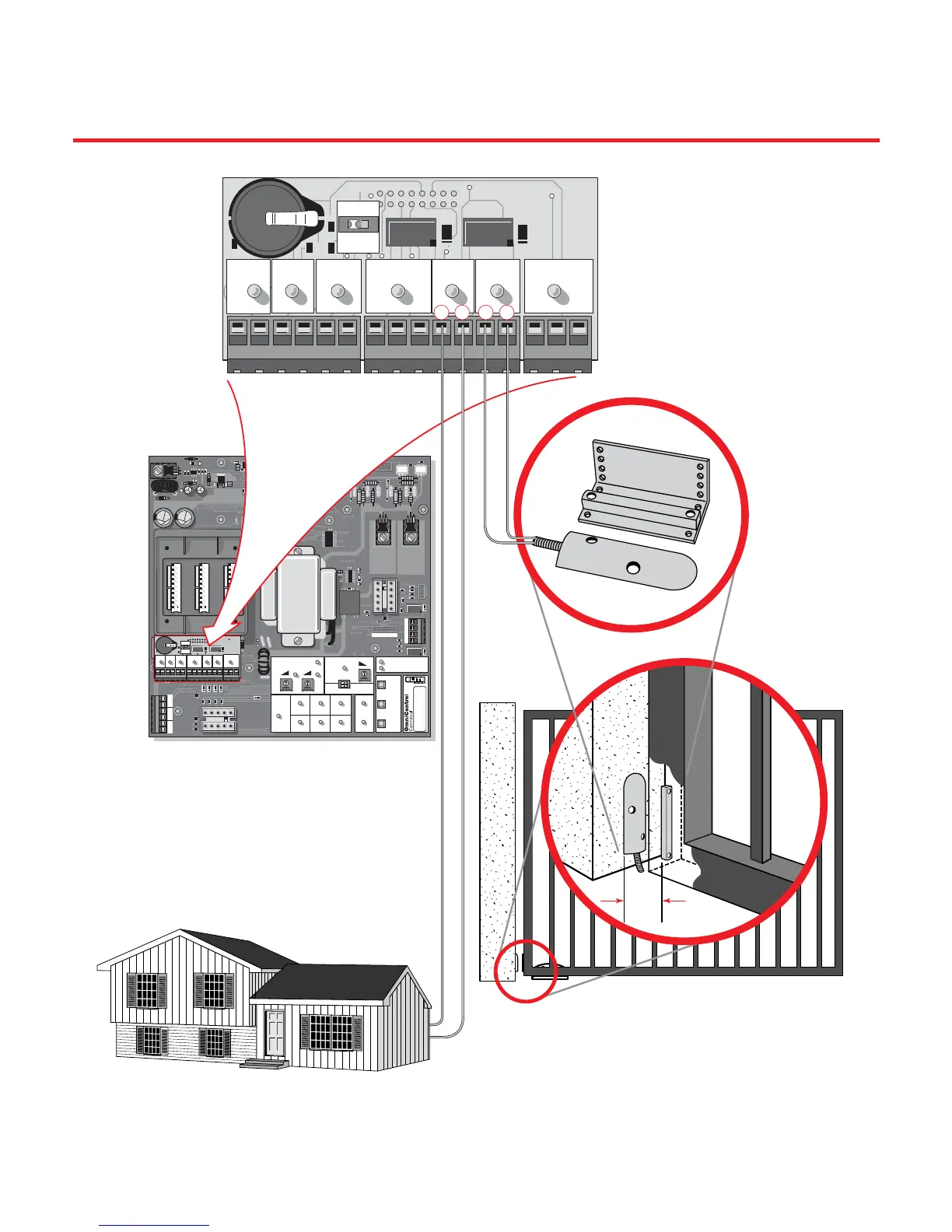

HOUSE ALARM/PROXIMITY SWITCH CONNECTIONS
CENTER SAFETY EXIT
CENTER SAFETY EXIT
FIRE
DEPT.
13
STRIKE
OPEN
RADIO
RECEIVER
TIMER
SYSTEM ON
EXIT
LOOP
ALARM
SENSOR
REVERSE
SENSOR
OPEN
STOPCLOSE
SAFETY
LOOP
CENTER
LOOP
GATE
LOCKED
60
POWER
OVERLOAD
OFF
W4
OPEN LEFT
DC-BACKUP
ALARMSENSOR
OPEN RIGHT
3
SENSORS
RESET
MOTOR
13
13
COMMAND
PROCESSED
ON
GB
MS LINK
A
MADE IN USA
Omni Option Board
Elite Part # O-OMNI EXB
House Alarm
Proximity Switch
Elite Part # A PRS
12VDC
House Alarm System
Dry Contact
Use Low Voltage
Wire 20 AWG
2"
Max.
QCC
AB
OPEN STOP CLOSE MAGLOCK ALARM
ARMED
M/S LINK
10 11 12 13
Alarm
10 – Common
11 – Normally Open
Armed
12 – Normally Closed
13 – Ground
QCC
AB
OPEN STOP CLOSE MAGLOCK A LARM
ARMED
M/S LINK
