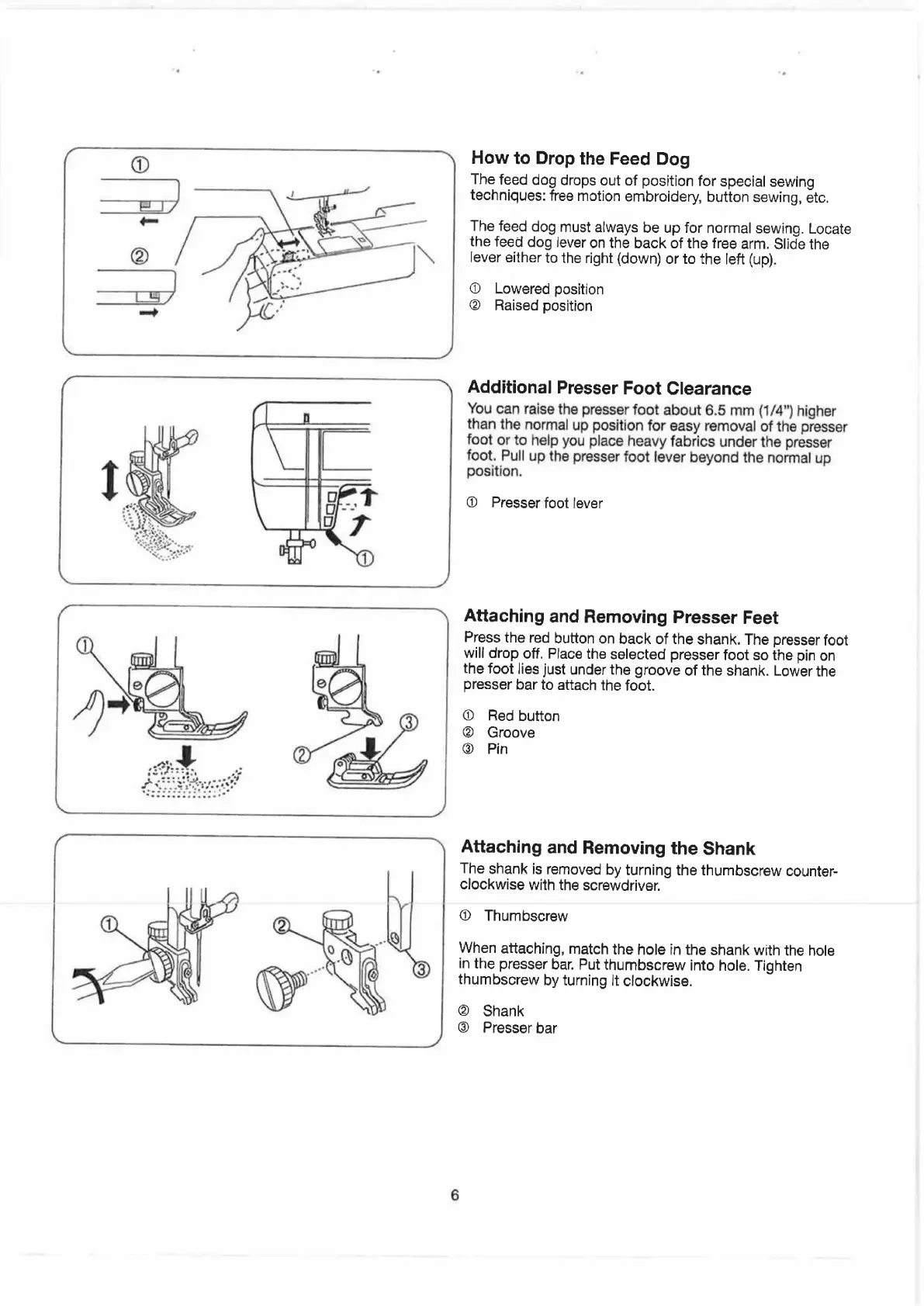

ELNA 6003 - How to Drop the Feed Dog; Additional Presser Foot Clearance; Attaching and Removing Presser Feet; Attaching and Removing the Shank

How to Drop the Feed Dog
The feed dog drops out of position for special sewing
techniques: free motion embroidery, button sewing, etc.
The
feed
dog
must
always
be
up
for
normal
sewing.
Locate
the
feed
dog
lever
on
the
back
of
the
free
arm.
Slide
the
lever
either
to
the
right
(down)
or
to
the
left
(up).
@ Lowered position
@ Raised position
Additional Presser Foot Clearance
You can raise the presser foot about 6.5 mm (1/4”) higher
than
the
normal
up
position
for
easy
removal
of
the
presser
foot or to help you place heavy fabrics under the presser
foot. Pull up the presser foot lever beyond the normal up
position.
@ Presser foot lever
Attaching and Removing Presser Feet
Press
the
red
button
on
back
of
the
shank.
The
presser
foot
will
drop
off.
Place
the
selected
presser
foot
so
the
pin
on
the
foot
lies
just
under
the
groove
of
the
shank.
Lower
the
Presser
bar
to
attach
the
foot.
@ Red button
@ Groove
@ Pin
Attaching and Removing the Shank
The
shank
is
removed
by
turning
the
thumbscrew
counter-
clockwise with
the
screwdriver.
@ Thumbscrew
When attaching, match the hole in the shank with the hole
in the presser bar. Put thumbscrew into hole. Tighten
thumbscrew by turning it clockwise.
@ Shank
@ Presser bar
