36
Edit
Mode
1 2 3 4
5 6 7 8
Designs
Hoop Size A(F): 126
X
110 mm
A Z
Edit
Mode
PC Card NO.1001
Hoop Size A(F):126x110mm
2
1
3
4
A Z

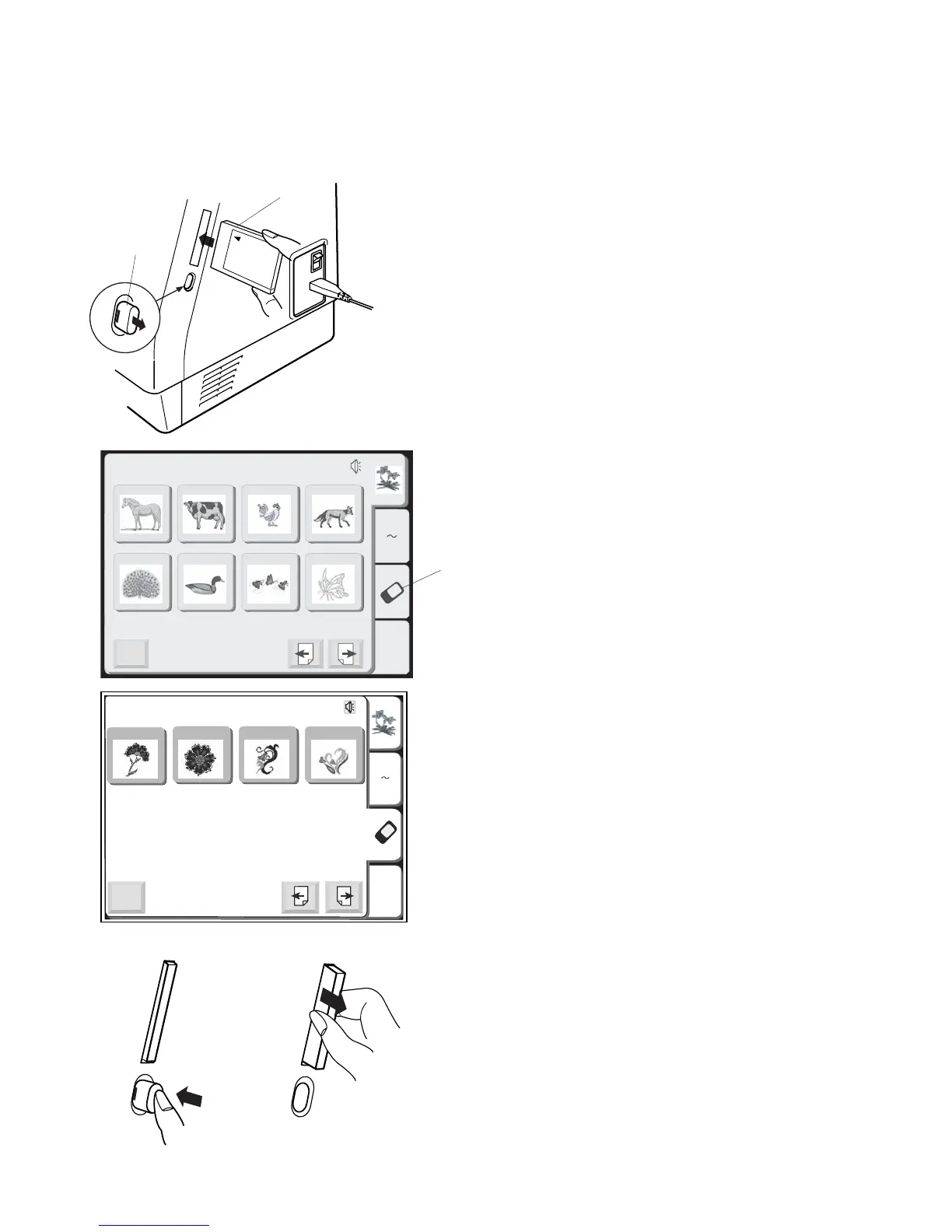

Sewing with PC Design Cards (Optional)
Inserting the Card
Insert PC design card
q into slot with front side
facing you. Push card in until it clicks and the card
eject button
w pops out. (You should see a red bar
on the button.)
Selecting from a PC Design Card
Touch the “PC Design Card” key e.
The PC design selections window opens. Designs
programmed on the card will appear. Select a
design.
Ejecting the Card
Push in the card eject button. Remove PC design
card from the slot.
CAUTION: Do not turn off the power switch or
eject the card when warning messages or
hourglass icon is displayed.
q
w
e
To Next Page
