32

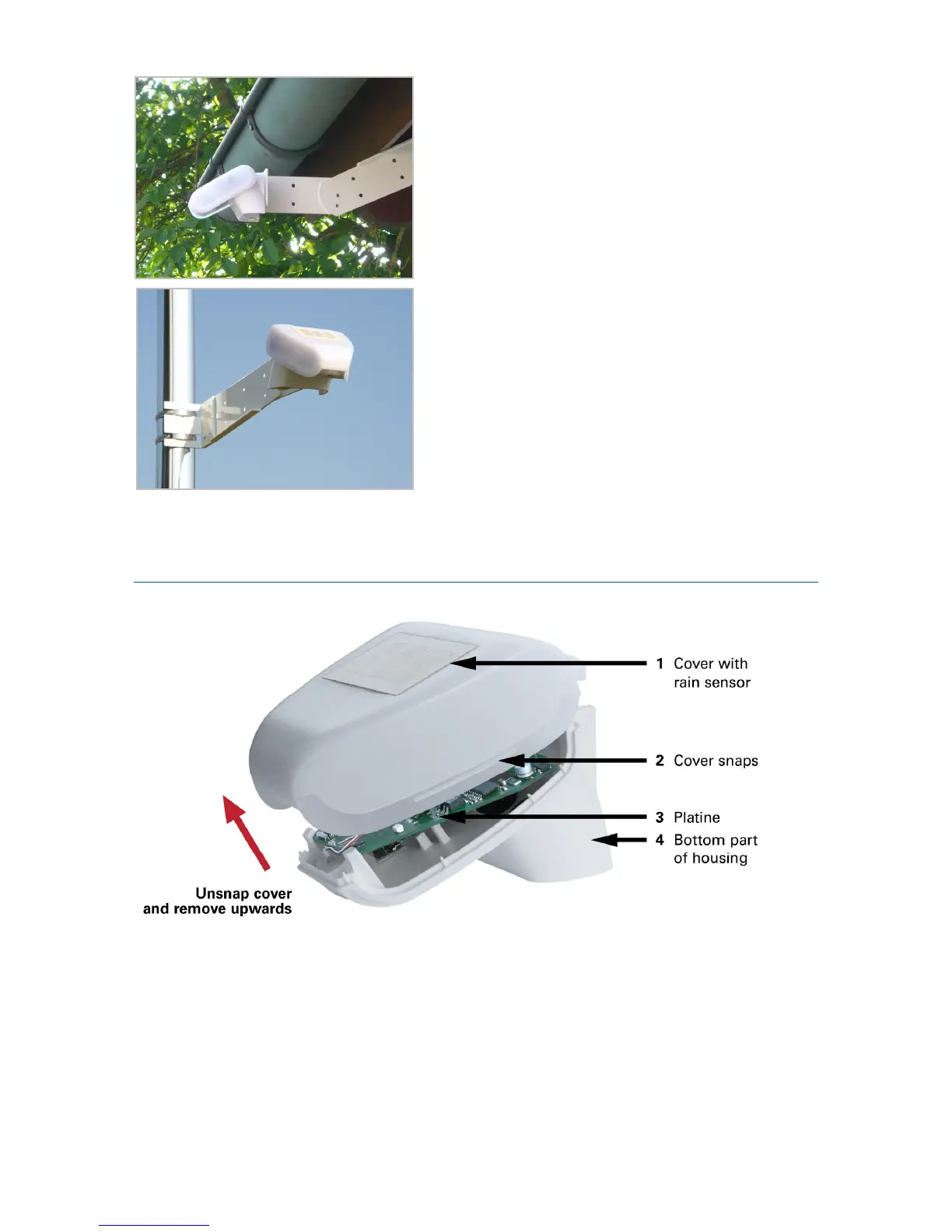

Example for the application of the hinge arm
mounting: With the hinge arm mounting, the
weather station projects from beneath the
roof. Sun, wind and precipitation can be
measured unhindered by the sensors.
Example for the application of the hinge arm
mounting: Pole-mounting with mounting
brackets.
Preparation of the weather station
The cover of the weather station with rain sensor is engaged at the lower rim to
the right and to the left (see fig.) Remove the cover from the weather station. Be
careful not to break away the cable connection between the circuit board in the
bottom part and the rain sensor in the cover.
