46

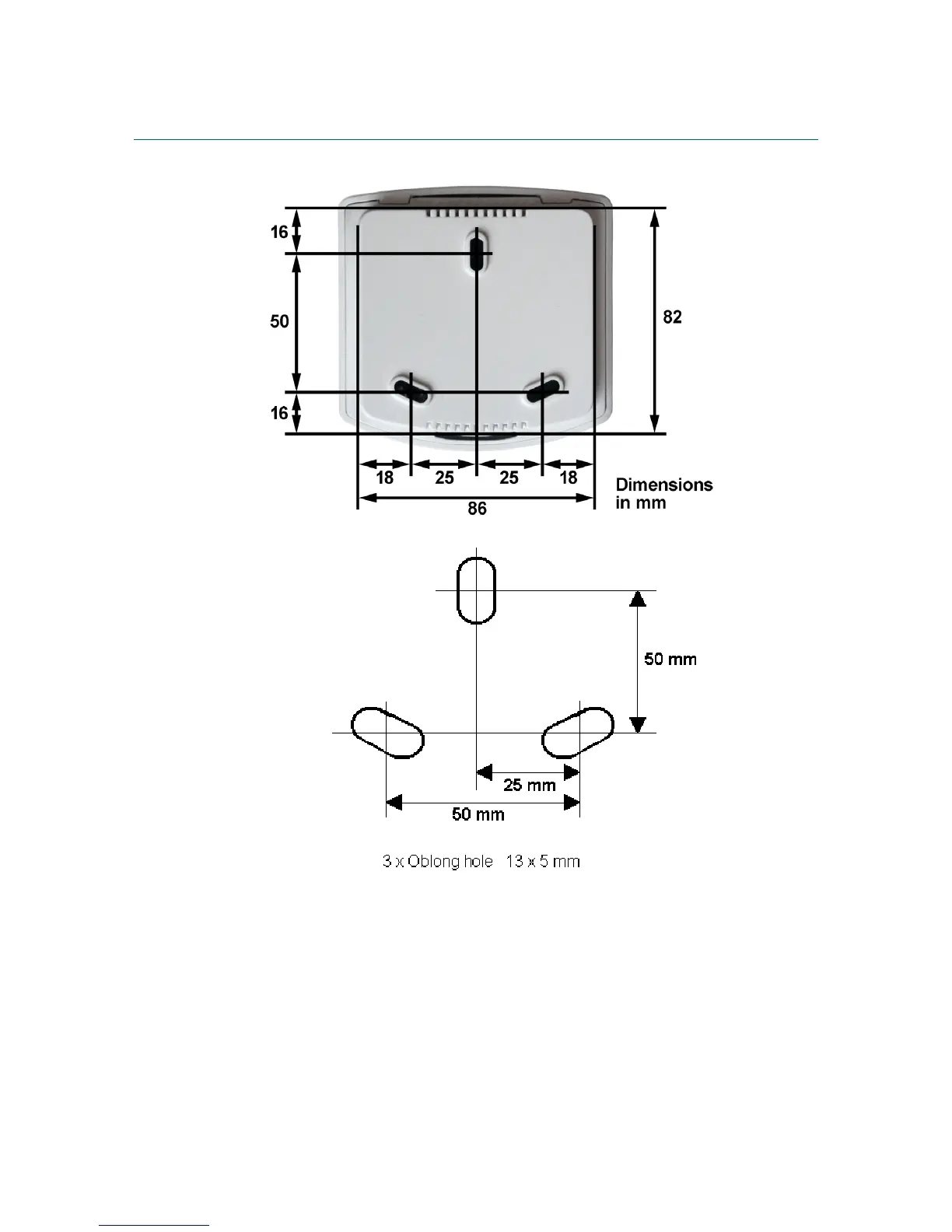

View of rear side and drill hole plan for the operating unit
All values are in mm, deviations due to technical reasons are possible.
