16
Installation Guide Flatpack2 -48V 150A ~ 2029242 R2, May 2008

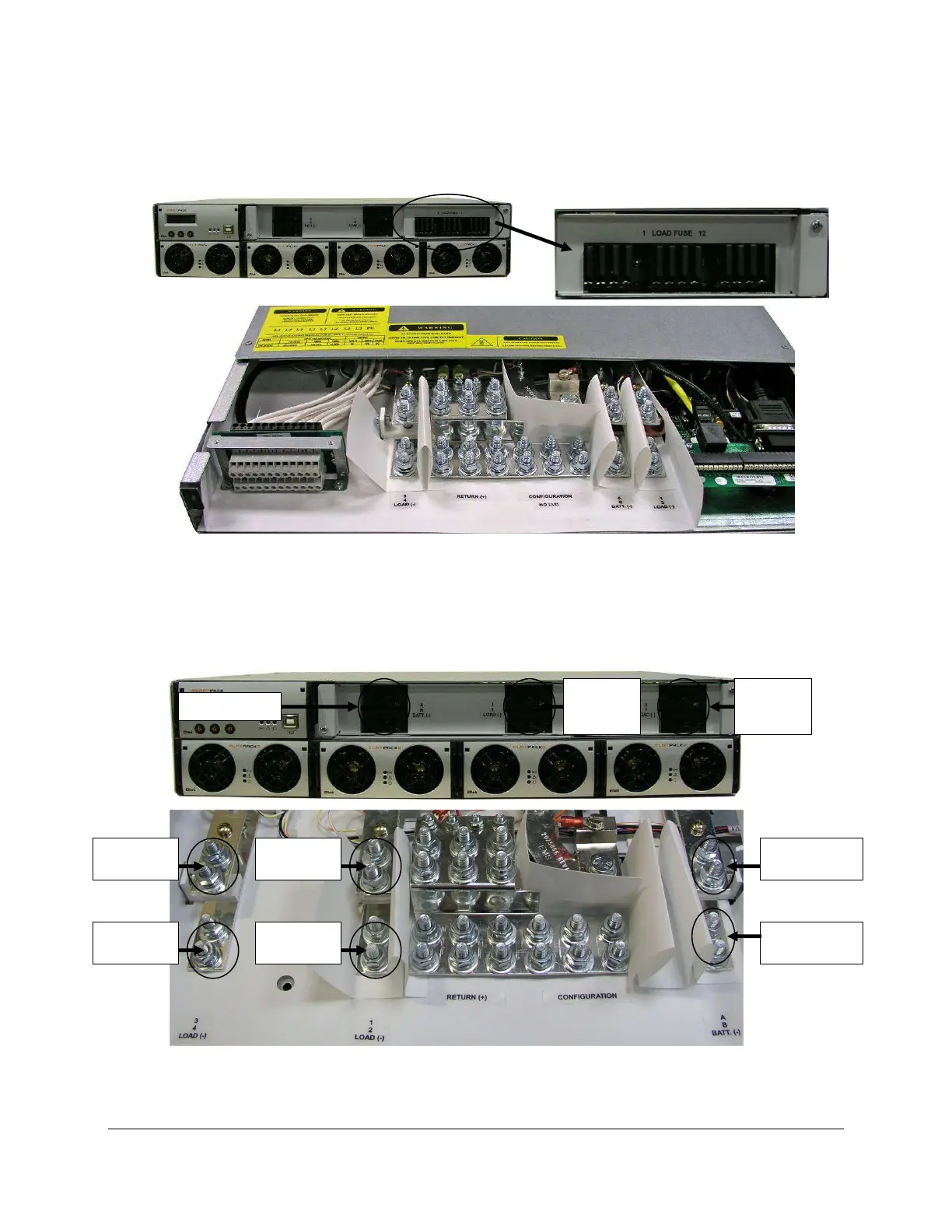

Two Battery, Two Load, 12 GMT (2B 2L GMT)
This configuration comes with two battery breaker positions, two load
positions, and a 12-position GMT fuse block in the rightmost section.
Two Battery, Four Load (2B 4L)
The “2B 4L” configuration populates all six plug-in positions. As usual, the
leftmost positions are dedicated to batteries; the rest are for load output.
NOTE: Battery breakers turn ON to the left; load breakers turn ON to the
right.
Figure 9 - Connections to GMT Block (Rear View)
Battery A
Battery B
Load 1
Load 2
Load 3
Load 4
Batteries
Loads
1 & 2
Loads
3 & 4
