Installation Guide Flatpack2 -48V 150A ~ 2029242 R2, May 2008
Local Keypad Access
The Smartpack controller is typically pre-configured at the factory according to
customer requirements. If operational adjustments are required refer to the
PowerSuite Help menu or Smartpack manual for further details. The Smartpack
digital controller is located in the distribution section and provides system
control and monitoring functions. Features include:

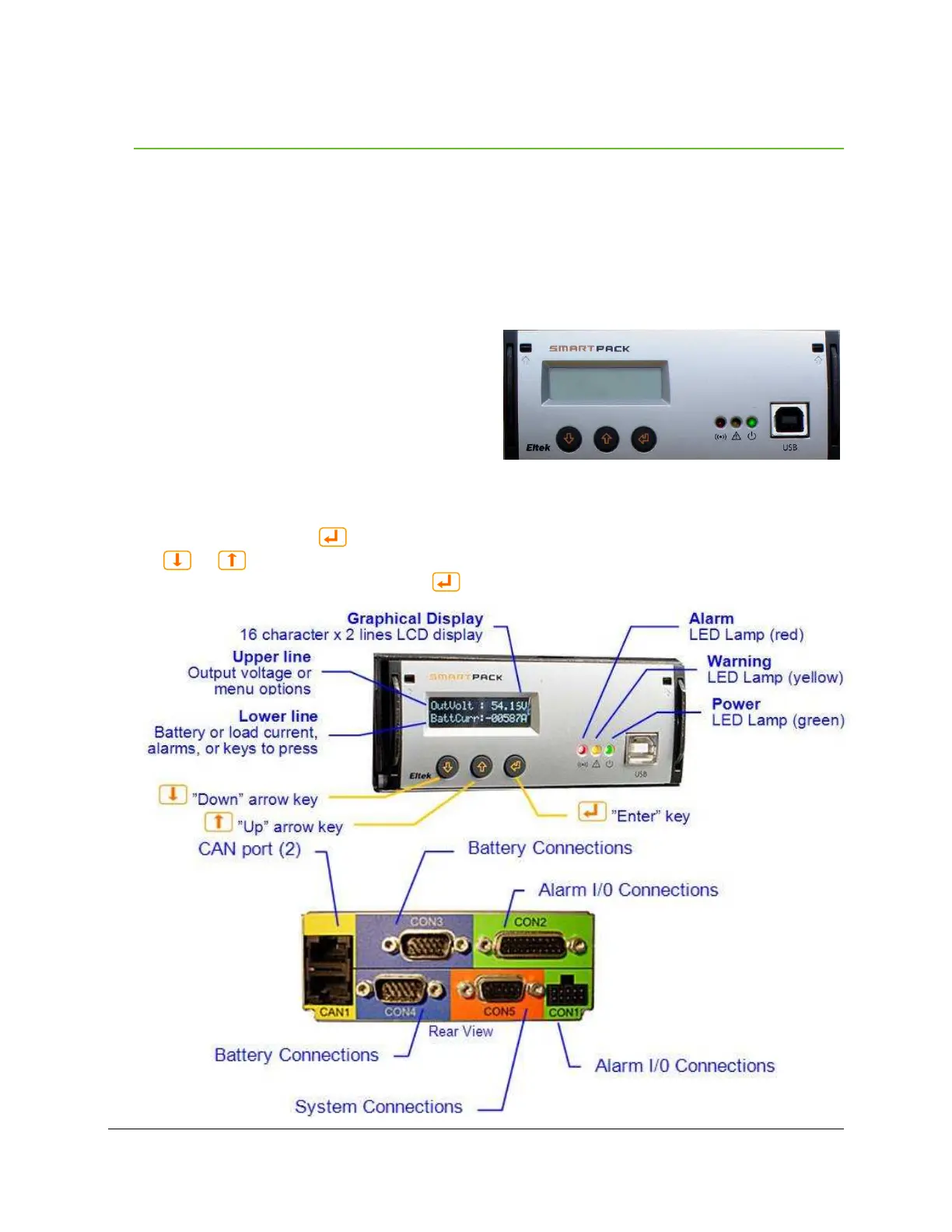

• Local user interface via a three-button keypad on the front panel
• 2 line x 16 character, high-contrast backlit LCD display
• Digital Communication over CAN-bus with
each Flatpack2 rectifier
• Storage of setup parameters, alarm
configuration and system history in non-
volatile memory
• Real time clock with battery backup
• Advanced battery monitoring and protection
Display Modes: Status Mode (displays
the system’s status) or Menu Mode (displays the menu structure).
Operation: Press the
key to change from Status Mode to Menu Mode. Press
the
or
keys to scroll up or down and navigate to find menu options
(function or parameter). Press the
key to select functions.
