Installation Guide Flatpack2 -48V 150A ~ 2029242 R2, May 2008
17
CAUTION: T
HE FOLLOWING CONFIGURATIONS FEATURE UNPROTECTED BATTERY
TERMINALS
.
I
T IS STRONGLY RECOMMENDED THAT EXTERNAL BREAKERS OR FUSES BE
INSTALLED BETWEEN THE SYSTEM AND BATTERIES
.
NOTE: When facing the front of the system, the leftmost load breakers in the
following distributions turn ON to the left; the rest turn ON to the right.
Four Load, 12 GMT (4L GMT)
The “4L GMT” configuration changes the two 100A battery breaker positions
into 60A load positions by tying them to the internal load bus. Two bulk,
unprotected battery landings are available in the rear of the system (see
Figure 10). The rightmost position is populated by a GMT fuse block.

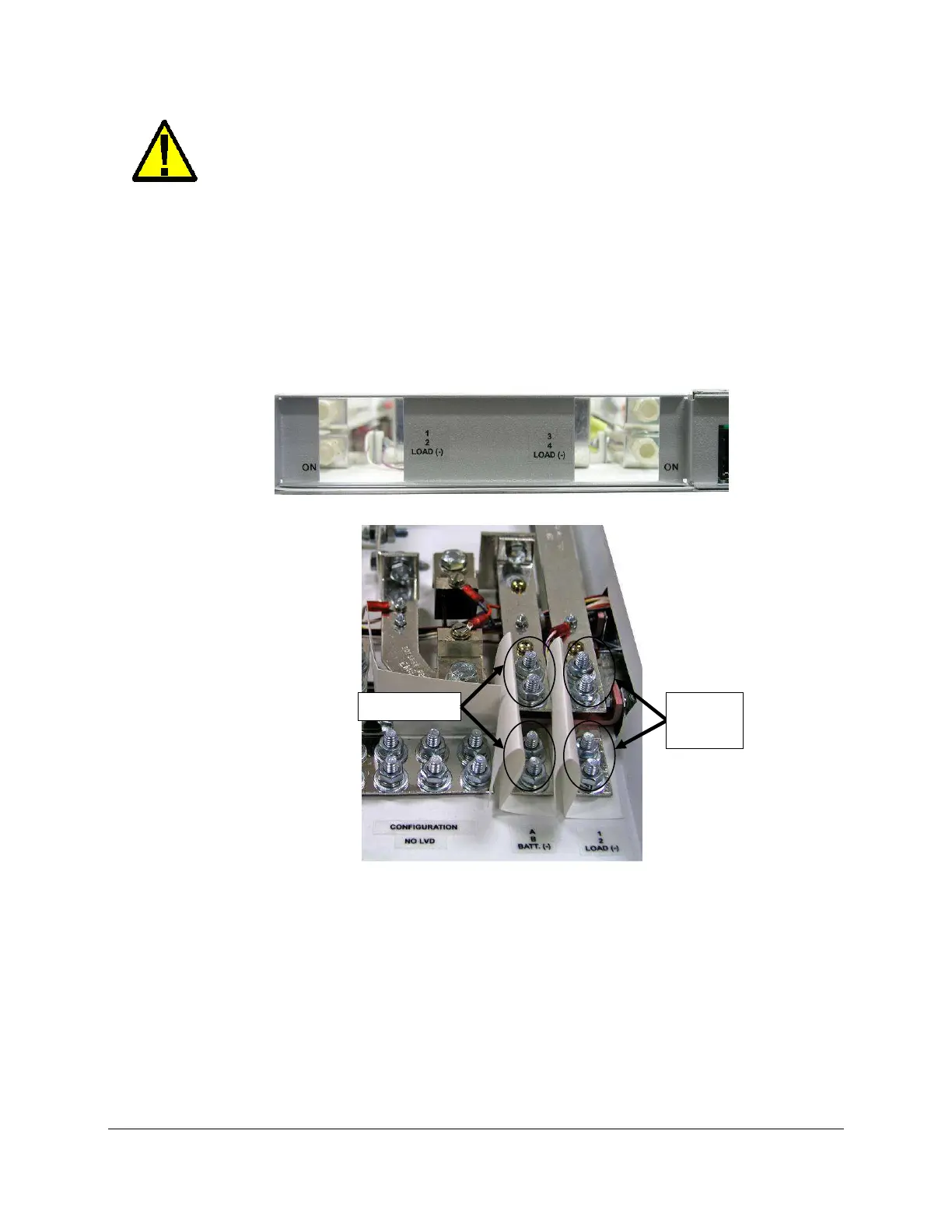

Figure 10 - Bulk Battery and Protected Load Landings
Six Load (6L)
This configuration differs from the “4L GMT” system only in that, rather than a
GMT fuse block, the rightmost position is populated by a set of parallel load
buses.
Loads
1 & 2
