8. Controller Access
Controller Configurations
The Flatpack2 power system can be delivered in several configurations. The
following examples are basic configurations. The Flatpack2 -48V 150A power
system uses a single Smartpack controller.

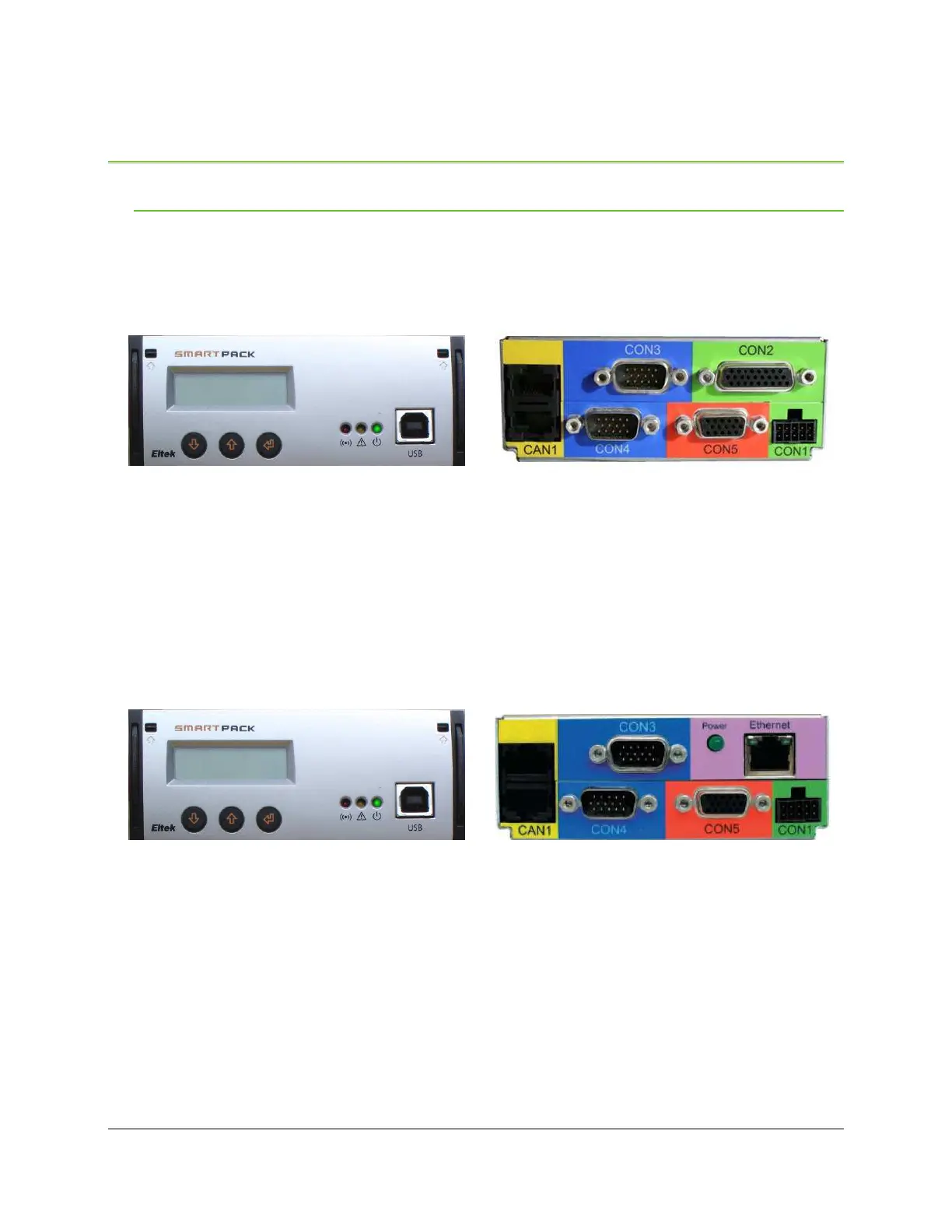

Smartpack Extended
Local user interface via a three-button keypad on the front panel
2 line x 16 character, high-contrast backlit LCD display
Digital communication with each Flatpack2 rectifier
Storage of setup parameters, alarm configuration and system history in non-volatile memory
Real time clock with battery backup
Advanced battery monitoring and
full symmetry for 2 battery strings
Recording of rectifier serial numbers and other information
Load-shedding control
6 digital inputs
for site equipment alarms
6 user defined
form C output contacts
Smartpack Web
Local user interface via a three-button keypad on the front panel
2 line x 16 character, high-contrast backlit LCD display
Digital communication with each Flatpack2 rectifier –
TCP / IP or SNMP user interface
Storage of setup parameters, alarm configuration and system history in non-volatile memory
Real time clock with battery backup
Advanced battery monitoring and
full symmetry for 2 battery strings
Recording of rectifier serial numbers and other information
Load-shedding control
2 digital inputs
for site equipment alarms
2 user defined
form C output contacts
