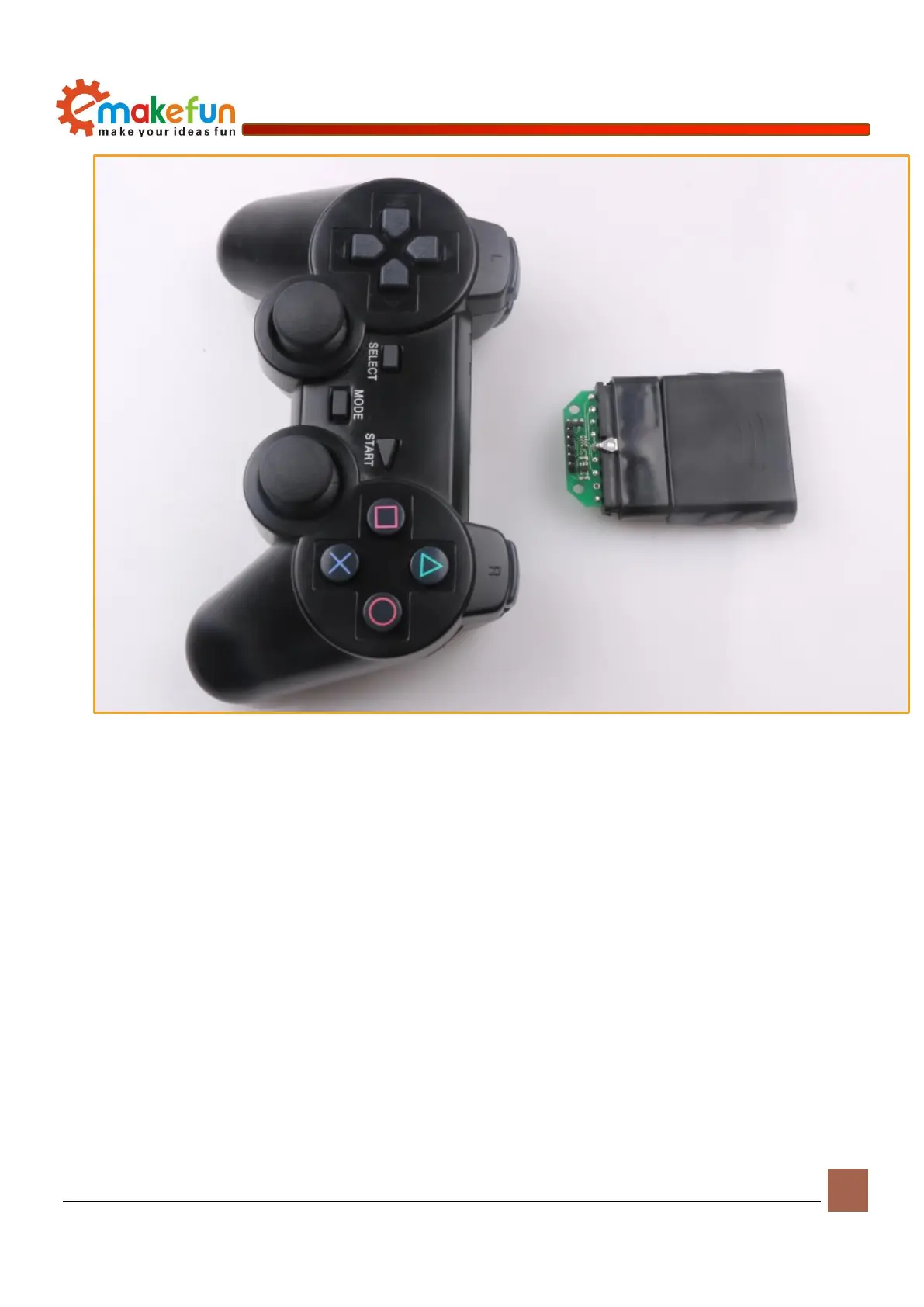

Figure 15-1 PS2 Wireless Handle
PS2 handle is composed of two parts of the handle and receiver, the handle needs two section 7th 1.5V
power supply, the receiver's power supply and controller use the same power supply, the power supply range
is 3~5v, can not be reversed or exceed voltage. Overvoltage and reverse connection will cause the receiver
to burn out. There is a power switch on the handle, on the open/off off, the handle switch to on.In the case of
no search to the receiver, the lamp on the handle flashing constantly, in a certain period of time, has not been
found in the receiver, the handle will enter Standby mode, the handle on the lights will be extinguished, at
this time, press the "START" button, wake-up handle.
The receiver is connected to the Arduino, and is powered by Arduino. In an unpaired condition, with a
green light flashing. The handle is open, the receiver is powered, the handle and receiver will automatically
pair, when the lamp is always bright, the handle pair succeeds. The key "mode" (handle batch is different,
