EMC Symmetrix DMX-3 Product Guide
Symmetrix DMX-3 Specifications
Electrical specifications and power requirements
This section describes electrical specifications, power cables,
connectors, and extension cords for the Symmetrix DMX-3 system
bay and each storage bay for North American and international sites.
The DMX-3 system uses three-phase power only. The type of input
power is determined by the PDP (power distribution panel) required.
There are two choices:
◆ Three-phase, four-wire, Delta, line-to-line
◆ Three-phase, five-wire, WYE, line-to-neutral
Each DMX-3 system bay and storage bay has two power connectors,
one affixed to each PDP (Figure 61 on page 270).

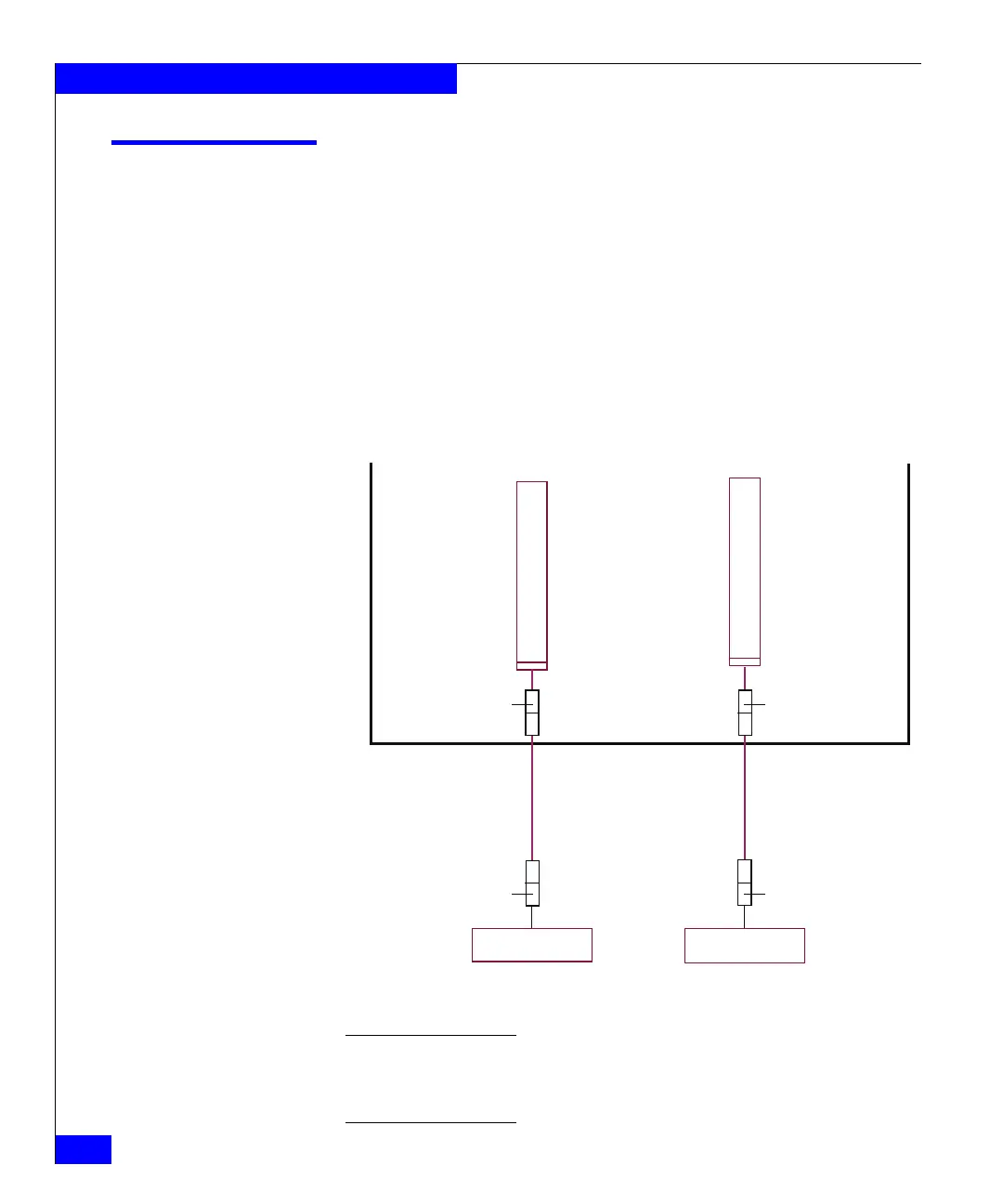

Figure 61 Power connections
Note: “Symmetrix DMX-3 power requirements” on page 288 provides
pre-installation power site requirements. The Symmetrix EMC DMX-3
Physical Planning Guide also provides additional planning information for
power requirements.
Zone B
AC input
Cable B
Cable connectors are shown
as they exit the bottom rear
of the DMX-3 bay.
This cabling is internal
to the DMX-3 bays.
DMX-3 system bay
or storage bay
rear view
Zone A
AC input
Cable A
Zone B PDP
(Left)
Zone A PDP
(Right)
*15 ft. extension
cord options
*15 ft. extension
cord options
Customer’s power
distribution unit B
Customer’s power
distribution unit A
EMC-supplied power
connector from the PDP
*Mating connector or
customer-supplied cable
*Mating Connector or
customer-supplied cable
* Note: See Product Guide for
EMC-supplied connection
configurations and for
extension cord options and
mating connector options.
EMC-supplied power
connector from the PDP

EMC Symmetrix DMX-3 Specifications
