Disk-array enclosures
EMC VNX8000 Hardware Information Guide 103

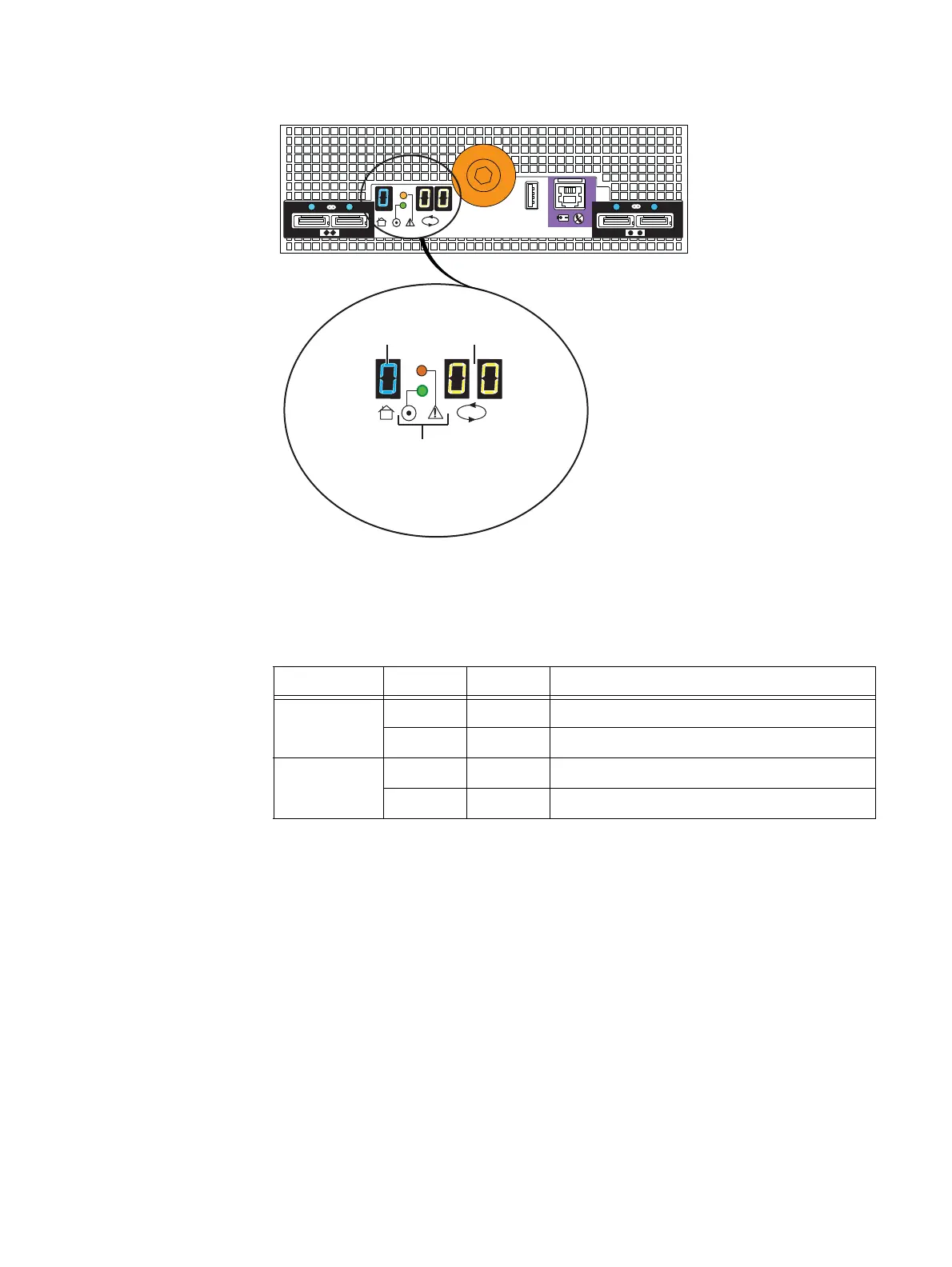

Figure 85 Example of an LCC enclosure ID indicator, bus ID indicator, and the LCC power and fault
LEDs
Table 45 describes the LCC status LEDs.
1
0
1
0
X4 X4
1
0
6 Gb
SAS
#
X4 X4
6 Gb
SAS
1
0
#
Bus (loop) ID
DAE LCC status LEDs,
power on (left) and fault (right)
Enclosure ID
Table 45 LCC status LEDs
LED Color State Description
Power on Green On Power on
—OffPower off
Power fault Amber On Fault
— Off No fault or power off

EMC VNX Series Specifications

General

Management Interface	Unisphere
Drive Support	SAS, NL-SAS, Flash (SSD)
RAID Levels	RAID 0, 1, 3, 5, 6
Protocols Supported	Fibre Channel, iSCSI, NFS, CIFS
Data Services	Deduplication, Compression, Snapshots, Replication
Processor	Intel Xeon
Operating System	VNX Operating Environment (block), VNX File Operating Environment (file)
