Disk-array enclosures
EMC VNX8000 Hardware Information Guide 107
One drive size is supported in the 3U, 120 (2.5-inch) DAE, the 2.5-inch disk drive. This
disk drive is available in three types:
◆ 6-Gb/s SAS
◆ Flash
You can add or remove a disk drive while the DAE is powered up, but you should exercise
special care when removing modules while they are in use. Drive modules are extremely
sensitive electronic components. However, all the 120 disk drives are not spun up at the
same time.
The 3U, 120 (2.5-inch) DAE has designated A0 and A1 disks as the boot drives for the DAE.

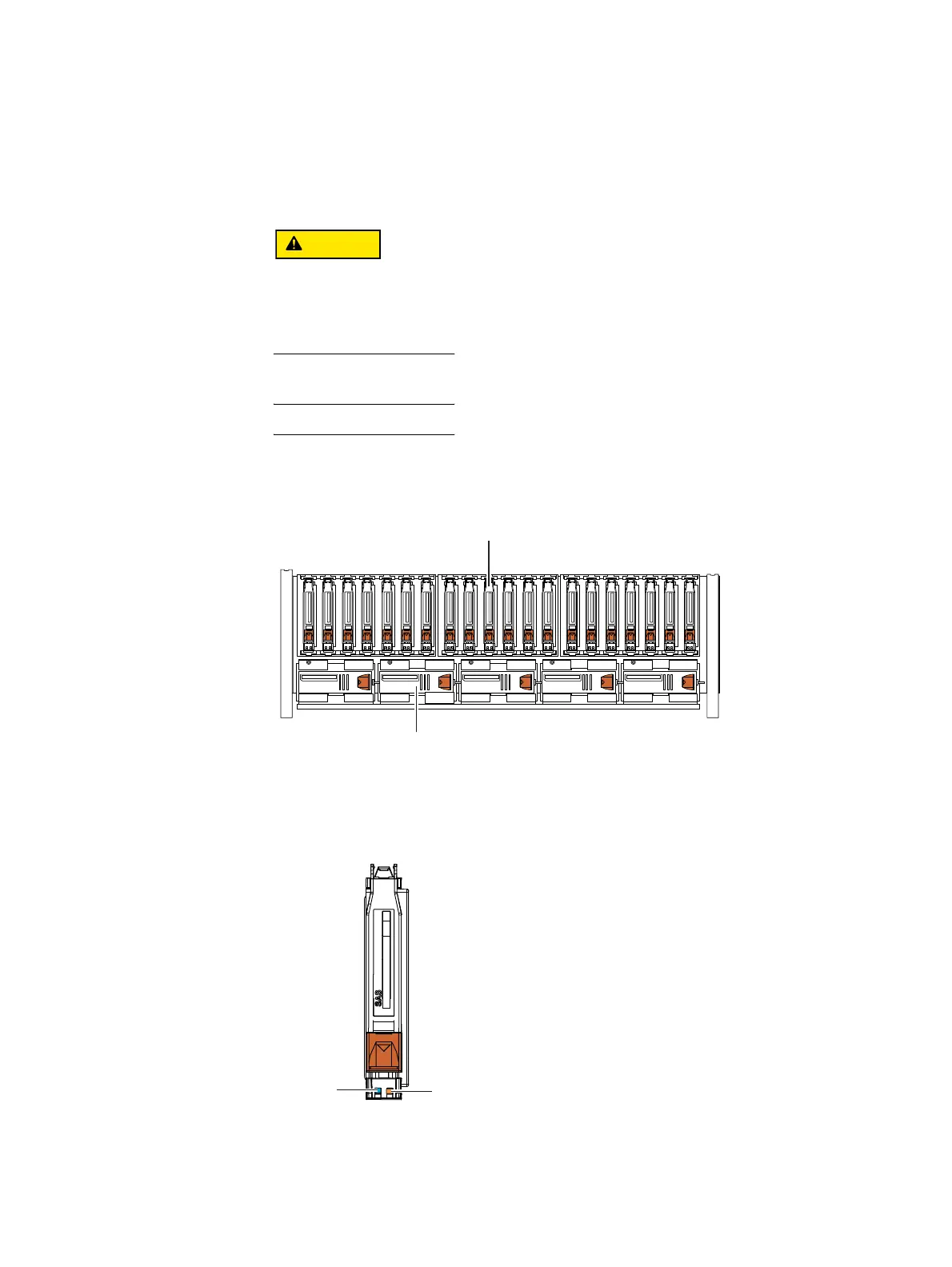

Figure 88 shows a top-down cut-away interior view of 3U, 120 DAE showing the location of
the fist row of disk drives A0-A19 and the front fan modules.
s
Figure 88 3U, 120 (2.5-inch) top-down cut-away view of the disk drives and the front fan modules
(interior view)
Figure 89 shows an example of the disk drive power and fault LEDs.
Figure 89 Disk drive power LED and fault LED
A
0
A
19
Disk
Fan module
Disk drive
fault LED
(amber)
Disk drive
power LED
(blue)
