EMC VNX Series

Eight- and sixteen-bus DAE cabling
EMC VNX8000 Hardware Information Guide 151
Slot 10 (eight-bus) configuration

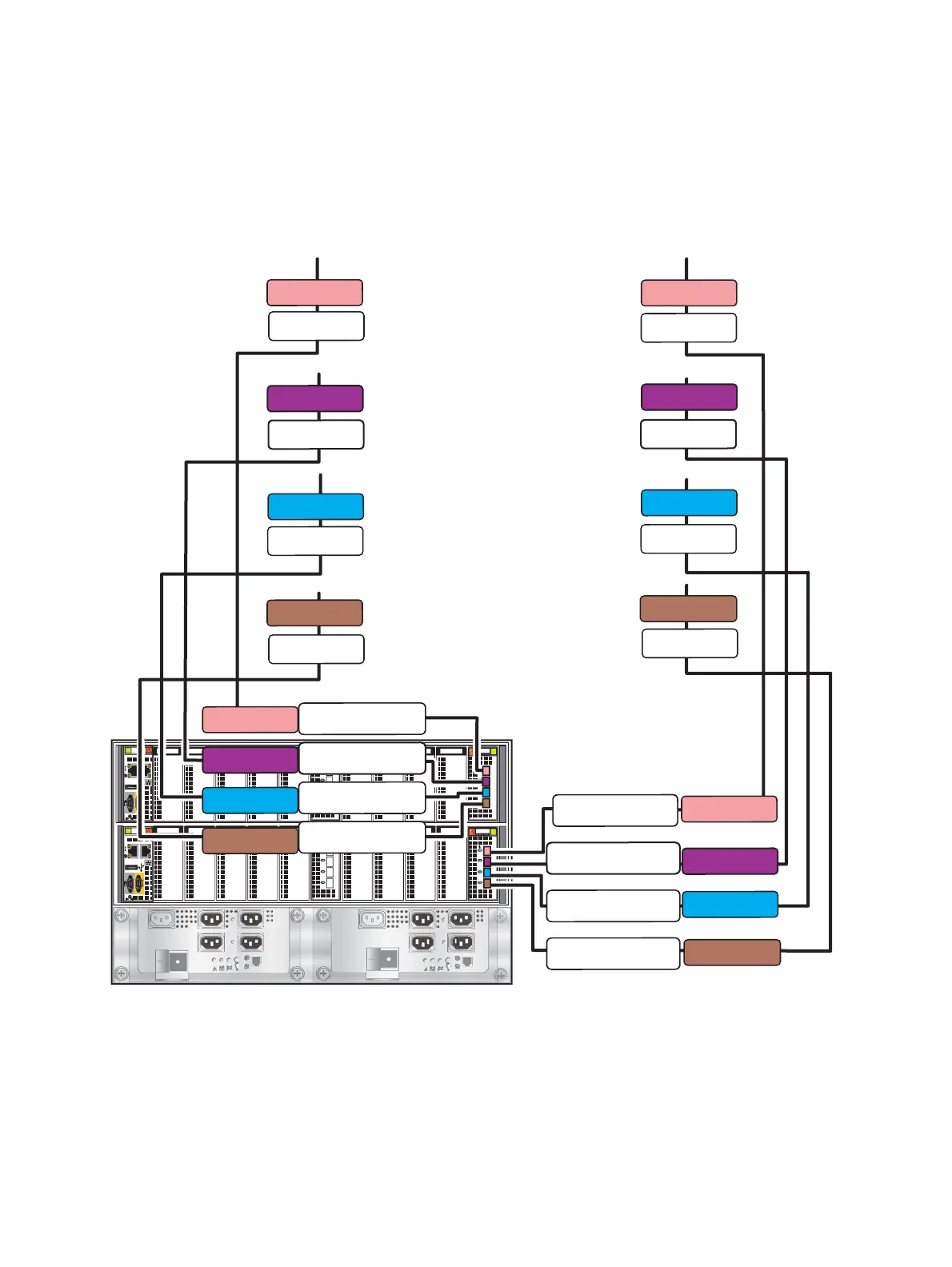

The following figure shows the location of the 6-Gb/s SAS I/O module slot (slot 10), the
I/O module port locations (0, 1, 2, and 3), and the cable labels for both the I/O module
side and the corresponding LCC side in the DAE it connects to (Figure 122). For more
information, refer to Table 55 on page 149.
Figure 122 Example continuation of an eight-bus factory version of a VNX8000 with the 6-Gb/s SAS
I/O module in slot 10
B
0123
0123
A
0123
0123
SP A SAS 10 Port 0
SP A SAS 10 Port 1
SP A SAS 10 Port 2
LCC A
A BE4
SP A SAS 10 Port 3
LCC A
A BE7
LCC A
A BE6
LCC A
A BE5
A BE4
A BE5
A BE6
A BE7
LCC B
B BE7
LCC B
B BE4
LCC B
B BE5
B BE7
B BE4
B BE5
B BE6
SP B SAS 10 Port 1
SP B SAS 10 Port 0
SP B SAS 10 Port 3
SP B SAS 10 Port 2
LCC B
B BE6
VNX-000826
