EMC VNX Series Hardware Information Guide

150 EMC VNX8000 Hardware Information Guide
Eight- and sixteen-bus DAE cabling
Slot 5 (eight-bus) configuration
The following figure shows the location of the 6-Gb/s SAS I/O module slot (slot 5), the I/O
module port location (0, 1, 2, and 3), and the cable labels for both the I/O module side
and the corresponding LCC side in the DAE it connects to (Figure 121). For more
information, refer to Table 55 on page 149.

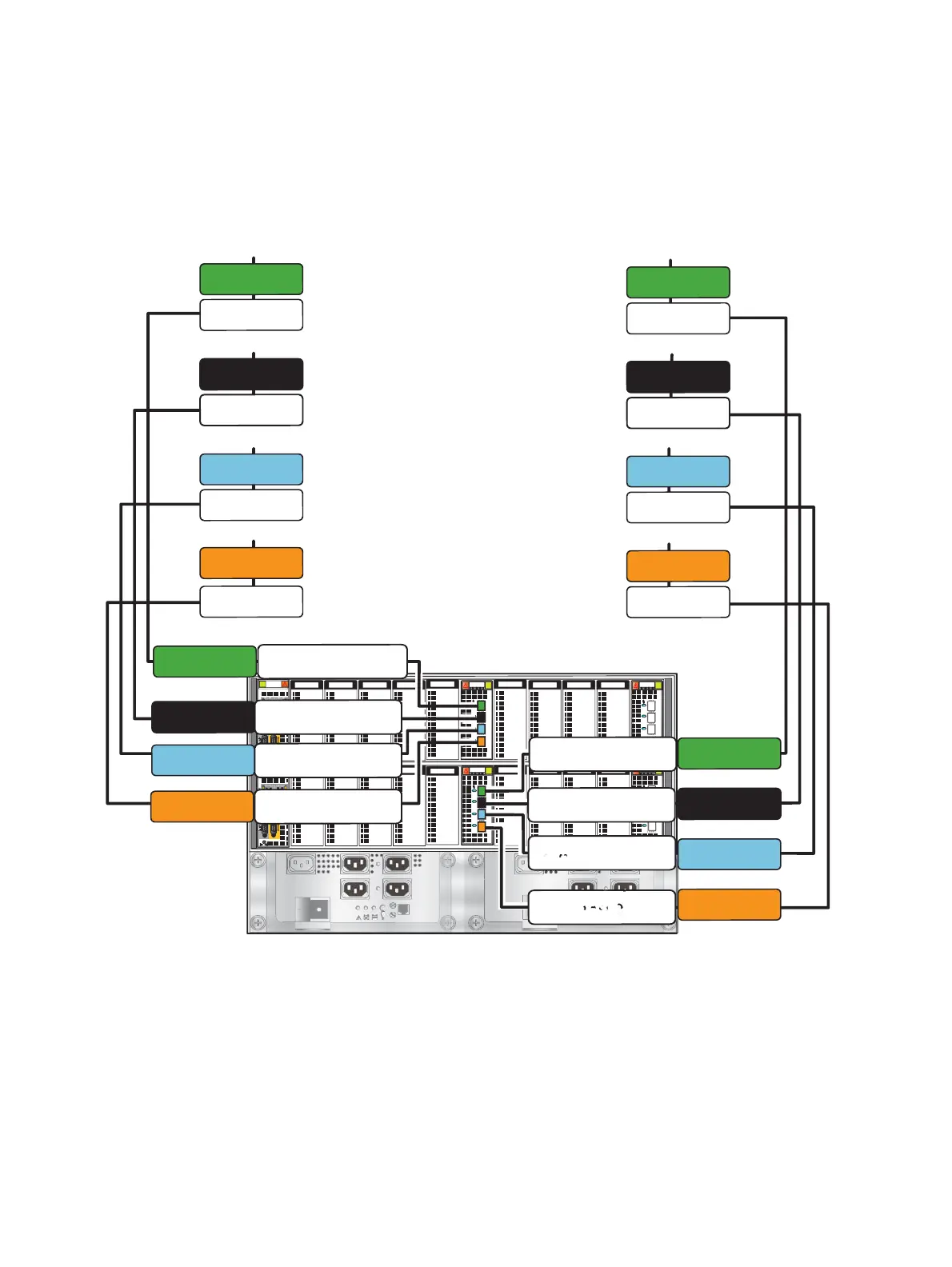

Figure 121 Example of an eight-bus factory version of a VNX8000 with the 6-Gb/s SAS I/O module
in slot 5
B
0123
0123
0123 0123
A
SP B SAS 5 Port 0
SP B SAS 5 Port 3
B BE3
LCC B
B BE2
LCC B
B BE1
LCC B
B BE0
LCC B
B BE3
SP B SAS 5 Port 2
B BE2
SP B SAS 5 Port 1
B BE1
B BE0
SP A SAS 5 Port 3
SP A SAS 5 Port 1
SP A SAS 5 Port 0
LCC A
A BE1
LCC A
A BE3
LCC A
A BE0
A BE0
A BE1
A BE3
SP A SAS 5 Port 2
A BE2
LCC A
A BE2
VNX-000825
